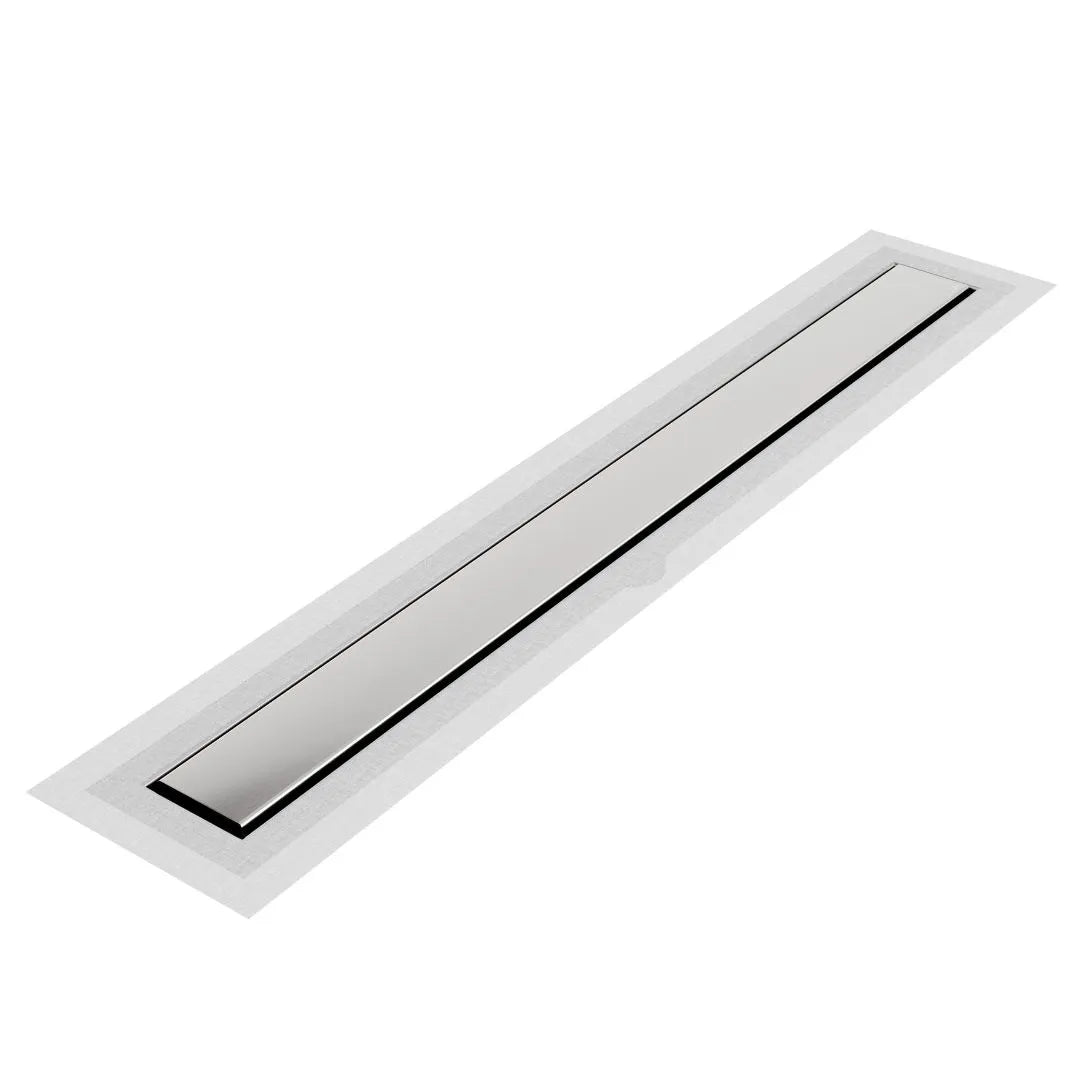

Mist (Tile-In) Delmar Flange Edge Linear Drain

This design is specifically crafted for modern waterproofing methods, providing an all-in-one solution for your shower project. Ideal for new builds, renovations, and generally for all bathrooms where space is tight.

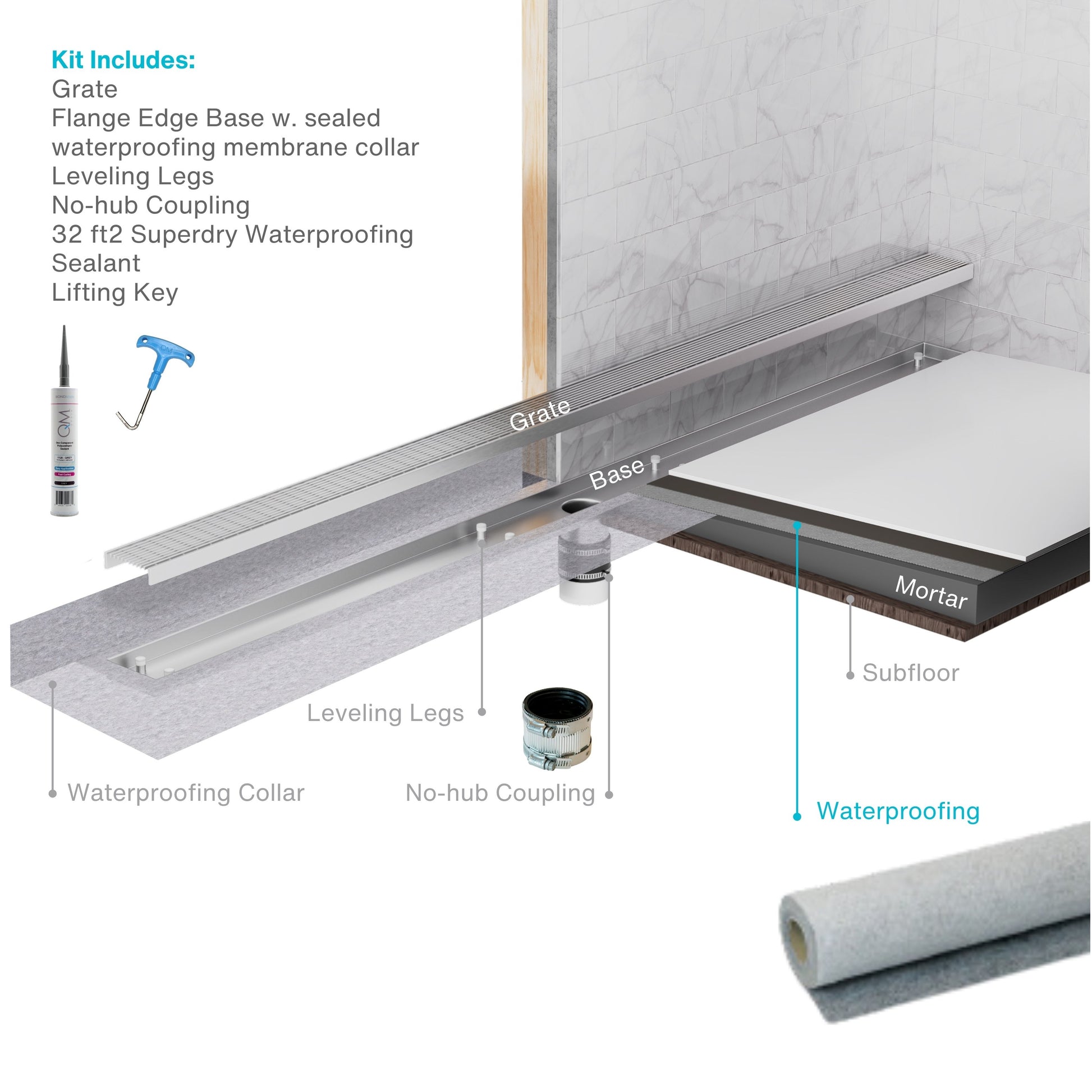

What’s in the kit?

• Vertical outlet drain channel with pre-attached waterproofing collar
• Wedgewire Linear grate
• 32 sq. ft. of Superdry waterproofing membrane
• Coupling

Tile Insert Grate: Accommodate any Tile, Stone, or flooring material up to 3/8" thick, except for the Frameless option, which accepts up to 1" thick.

Versatile Positioning: Can be placed anywhere within the shower area. Compatible with all standard tile formats.

Low Profile Base: Only 1" high. Includes a flange edge sealed with Superdry waterproofing membrane for a watertight connection.

Efficient Drainage: Features a center-located 2” side outlet for fast, effective water removal.

Premium Quality: Made from marine-grade 316 stainless steel. Resistant to corrosion, perfect for indoor or outdoor use.

Easy to Clean: Removable grate allows for easy access and quick maintenance. (Refer to cleaning instructions for details.)

Finishes Available:
ST – Satin Stainless

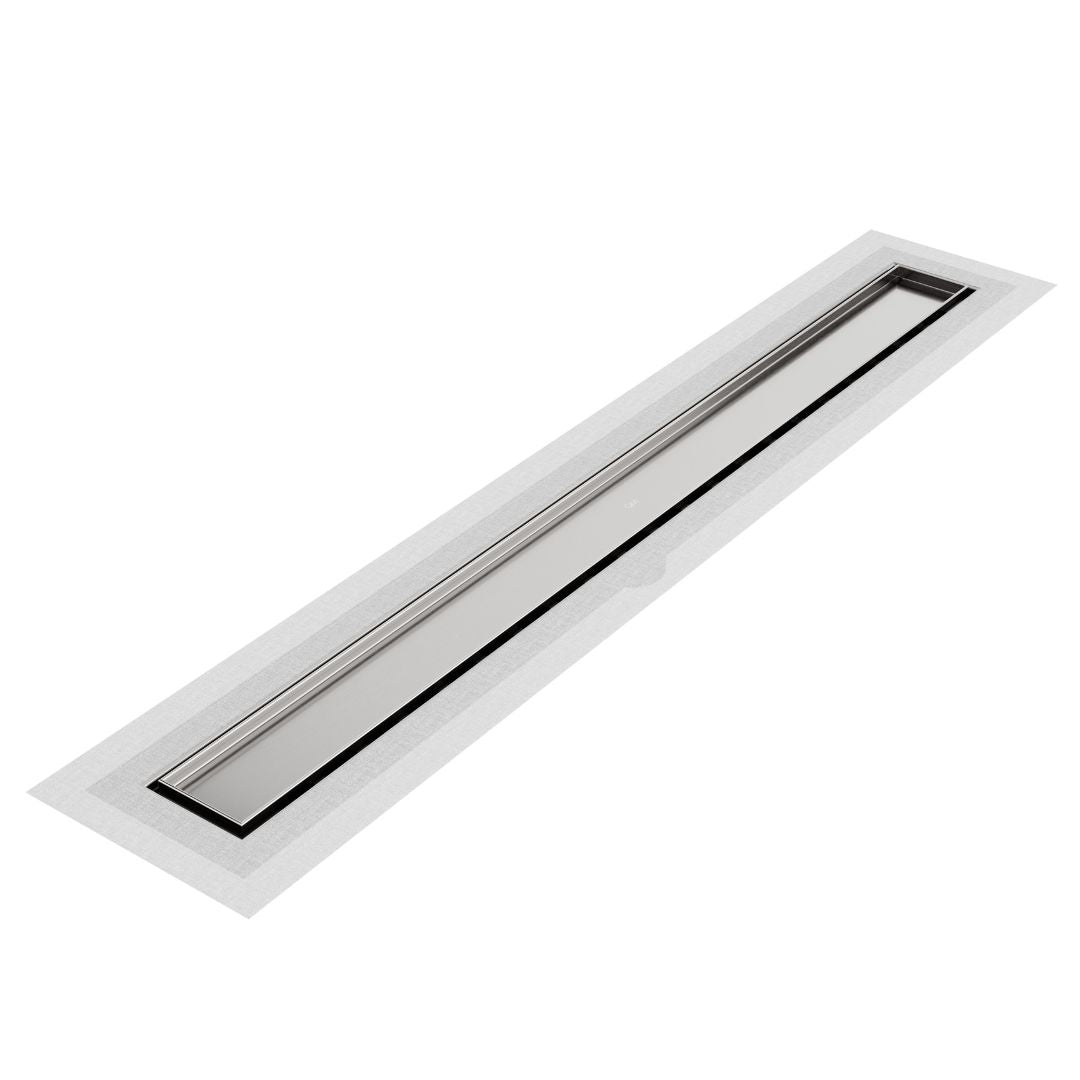

PS – Polished Stainless

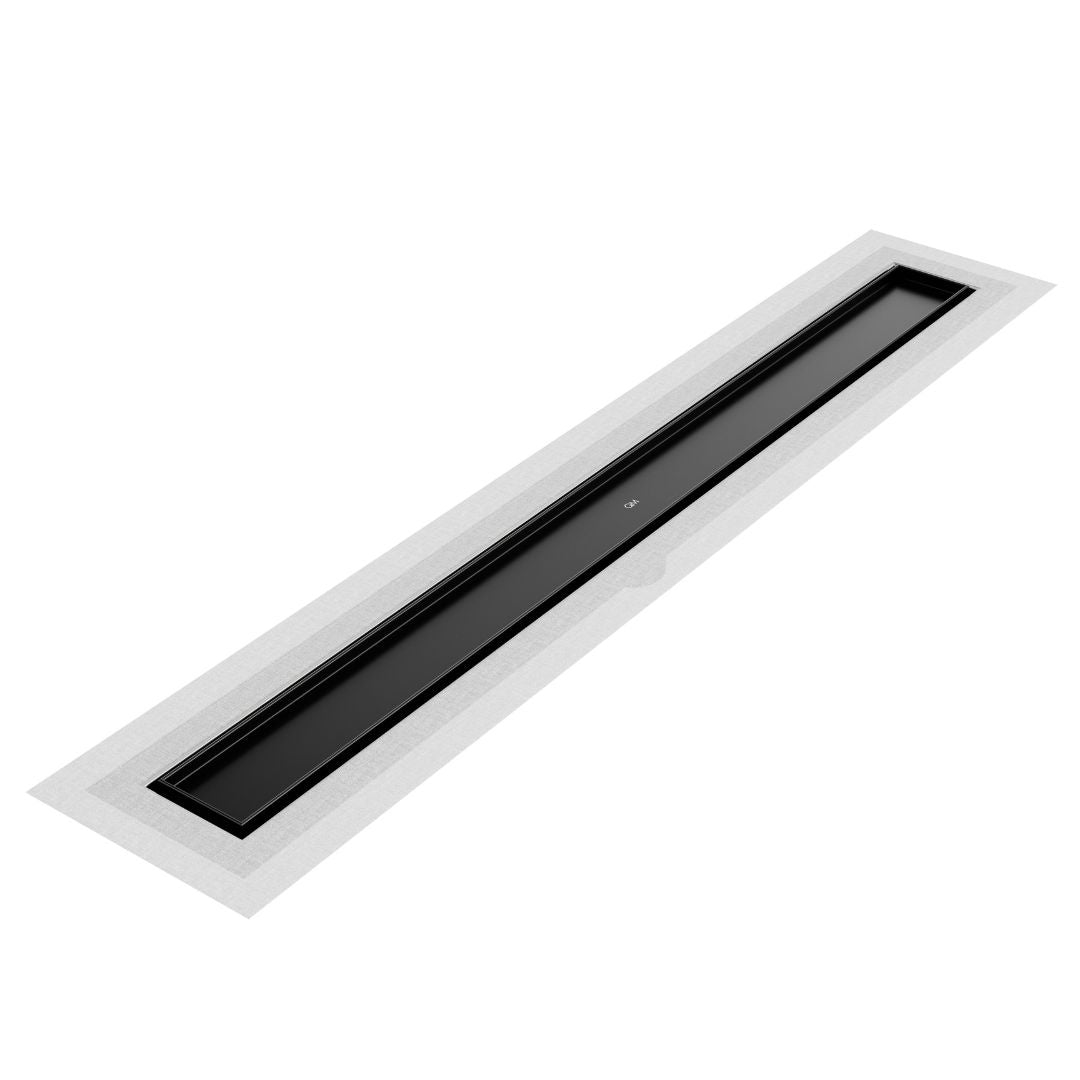

BK – Matte Black

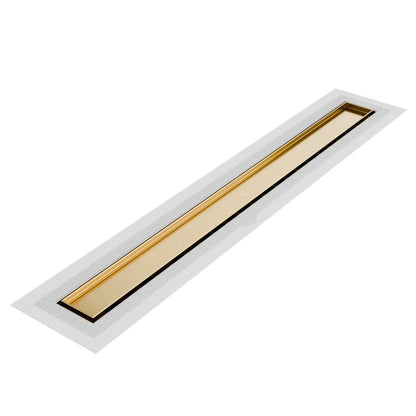

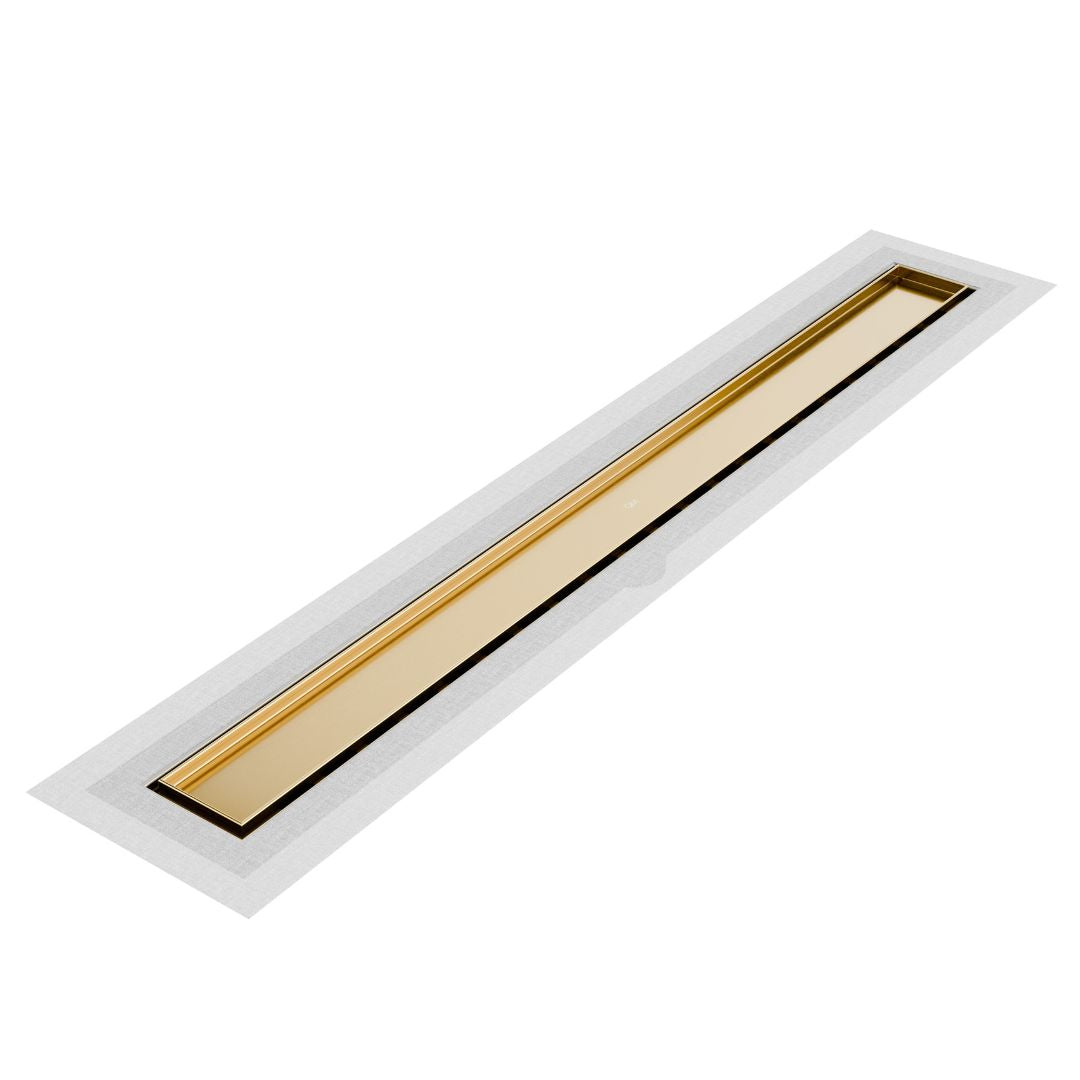

GD – Satin Gold

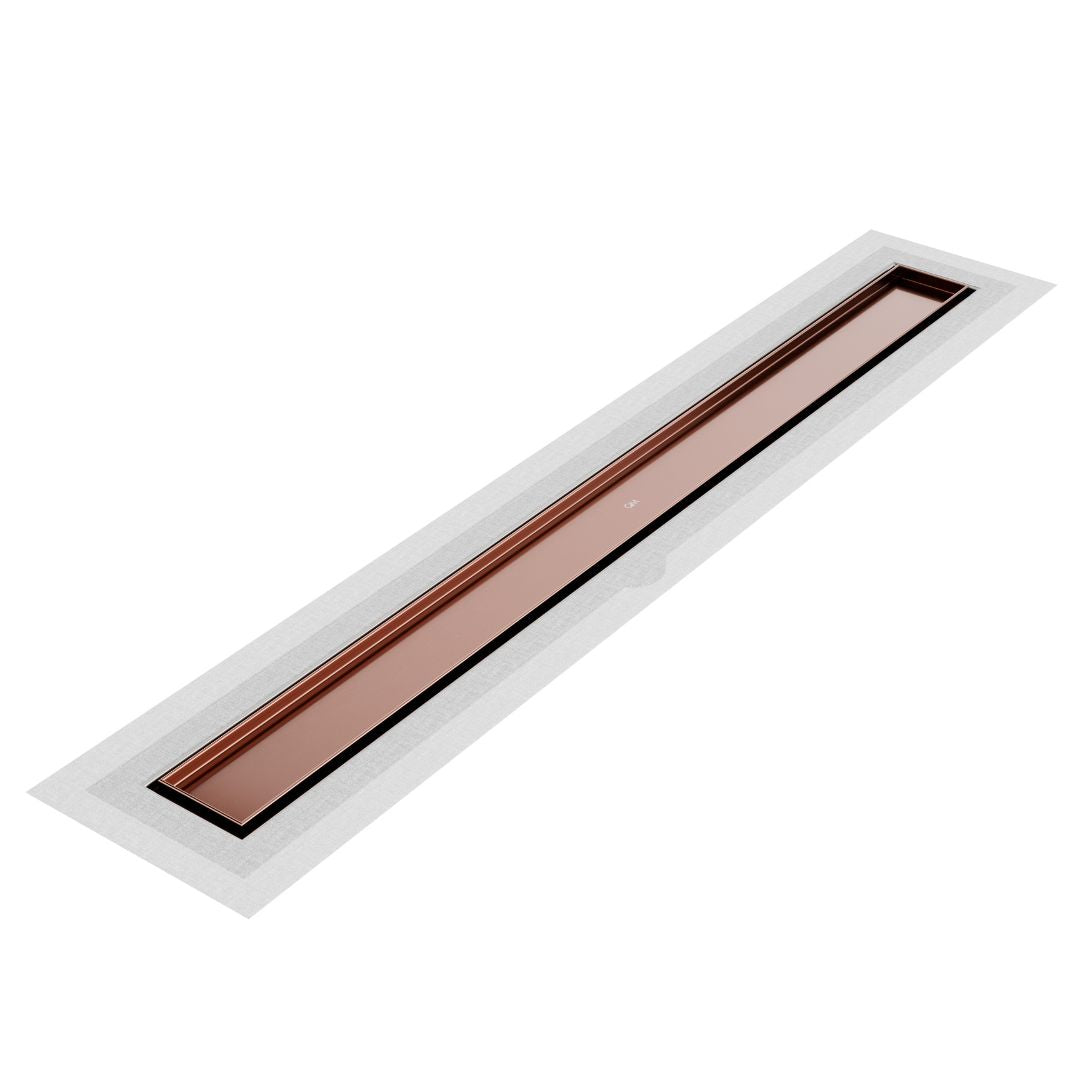

BZ – Satin Bronze

Easy to Install: The waterproofing collar is pre-attached and sealed to the channel. Connects directly to the pipe with included coupling. 32 sq ft. of Superdry membrane and sealant are included to make the process quick and smooth. For comprehensive installation guidance, please consult our detailed installation instructions and reference our installation video.

For Ultimate Easy Installation: Consider using our Shower Pan Kit for a convenient and quick installation alternative. This all-in-one solution integrates a pre-sloped shower board base and is pre-waterproofed with Superdry waterproofing, making it ideal for mortar-free shower installations! Eliminates the risk of improper slope—saving time and labor.

Sizes Available: 24", 28", 32", 36", 48", 58"

Dimensions: Width: 3.25" Height: 1" (low profile)

Need help installing?: Check our installation guide and video for step-by-step instructions.

Click below to view and download:

Technical Specifications: Mist (tile in) Flange Edge Linear Drain

Installation Instructions: Standard Flange Edge & Side Outlet Linear Drain

Installation Instructions - Liquid / Fabric Waterproofing

Video: Modern Waterproofing Installation for Side Outlet Linear Drains

Download Design Files:

• BIM: RFA

When and Why Should I Use a Flange Edge Linear Drain?

Choosing a flange edge linear drain for your shower installation is a strategic decision that enhances both the functionality and the longevity of your shower's waterproofing system. This choice becomes even more critical when using modern waterproofing techniques, which are known for their effectiveness and efficiency. Here’s why a flange edge linear drain, particularly one from QM featuring the "Superdry" waterproofing membrane, stands out:

Seamless Waterproofing Integration: Flange edge linear drains by QM are uniquely designed to integrate seamlessly with waterproofing systems. Each drain comes with the "Superdry" membrane pre-sealed at the flanged edge of the channel, offering an unrivaled bond and waterproof barrier extension directly to the drain itself. This ensures maximum protection against water leakage, securing the shower floor around the drain comprehensively.

Superior Leak Protection with "Superdry": The "Superdry" waterproofing membrane, recognized as the best in the market, is specifically formulated to work with our flange edge linear drains. This combination provides unparalleled leak protection. Unlike traditional methods that may falter at seams or around cuts, our flange edge creates a watertight seal, backed by the superior performance of "Superdry," to safeguard against water damage.

Ease of Installation and Comprehensive Coverage: The straightforward installation process of our flange edge linear drains, combined with "Superdry" membrane, minimizes potential errors. Each full kit drain includes 32 square feet of "Superdry" membrane, ensuring you have ample coverage for a standard shower installation, making the process efficient and reducing the risk of insufficient sealing.

Compatibility and Design Flexibility: Our flange edge linear drains are designed for compatibility with modern tile laying techniques, allowing for a sleek, low-profile shower floor. The inclusion of "Superdry" membrane enhances this compatibility, facilitating a streamlined look and greater design flexibility in the shower area.

Long-term Durability and Aesthetic Appeal: Opting for a QM flange edge linear drain with "Superdry" membrane is an investment in the durability and aesthetic of your shower. This advanced waterproofing protection prevents water damage and mold growth, while the drain’s sleek design complements contemporary bathroom aesthetics, providing a clean, minimalistic look.
