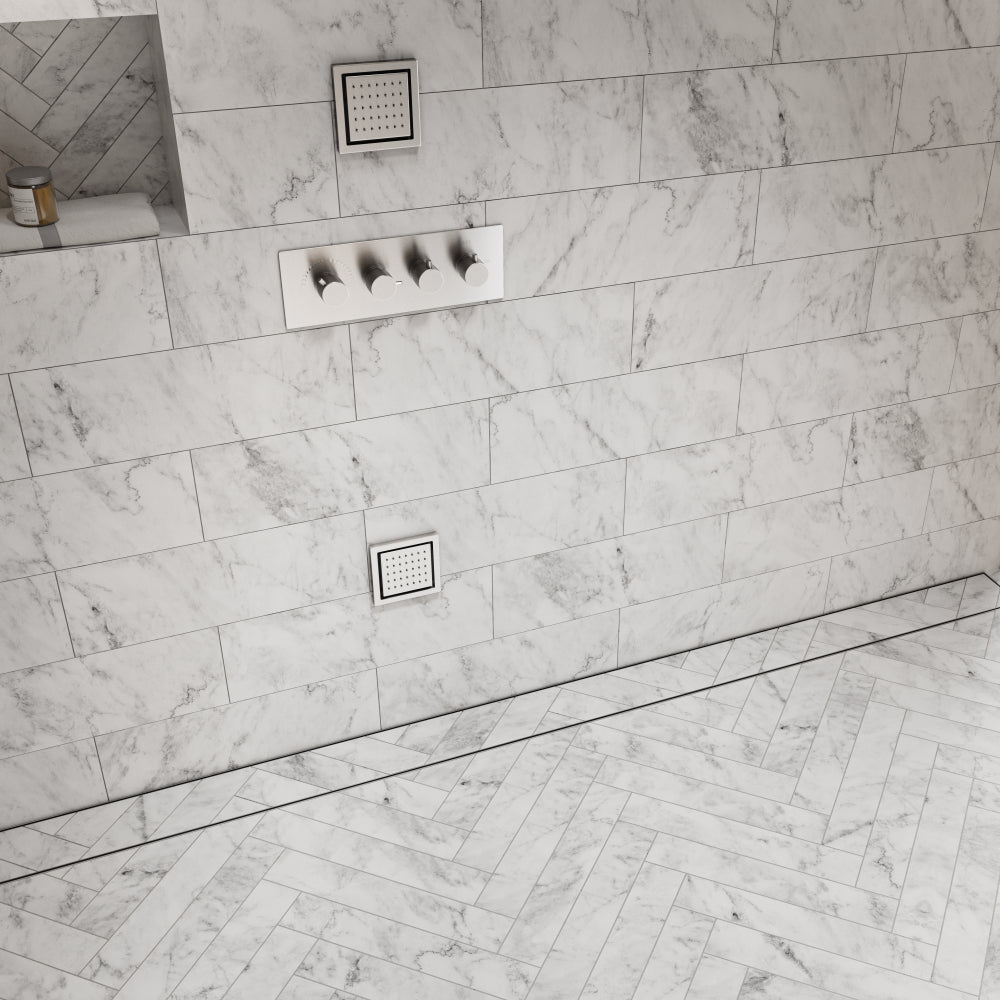

Mist (Tile-In) Adjustable Kit Delmar Linear Drain 3" High Flow

Experience total flexibility and ultimate creative control by adjusting both the channel length and outlet position on-site, or opt for a custom order tailored to your exact needs.

What’s in the kit?

• 3'' HF Outlet Section
• Channel Section
• Mist (Tile-in) Linear Grate
• 316SS Trims
• Sealant
• Leveling Legs
• Threaded Nipple Adaptor
• Grate Lifting Key
• Cutting Blade for grinder

Tile Insert Grate: Accommodates any tile, stone, or flooring material up to 3/8” thick, seamlessly blending with your tile’s design.

Tailored Lengths: The pre-sloped, low-profile channel provides a base that can be effortlessly adjusted on-site to create any desired length. Multiple kits can be seamlessly connected to achieve your desired result. 90-degree corner available when connecting 2 channels at a 90-degree angle.

Low Profile Base: Only 1" high, designed with easy installation in mind.

Outlet: With a 3'' outlet, you have the power to select the outlet position on-site, ensuring a precise fit for your layout. The 3'' HF Outlet offers up to 16 GPM with proper slope.

Premium Quality: Made from marine-grade 316 stainless steel. Resistant to corrosion, perfect for indoor or outdoor use.

Easy to Clean: Removable grate allows for easy access and quick maintenance. (Refer to cleaning instructions for details.)

Finishes Available

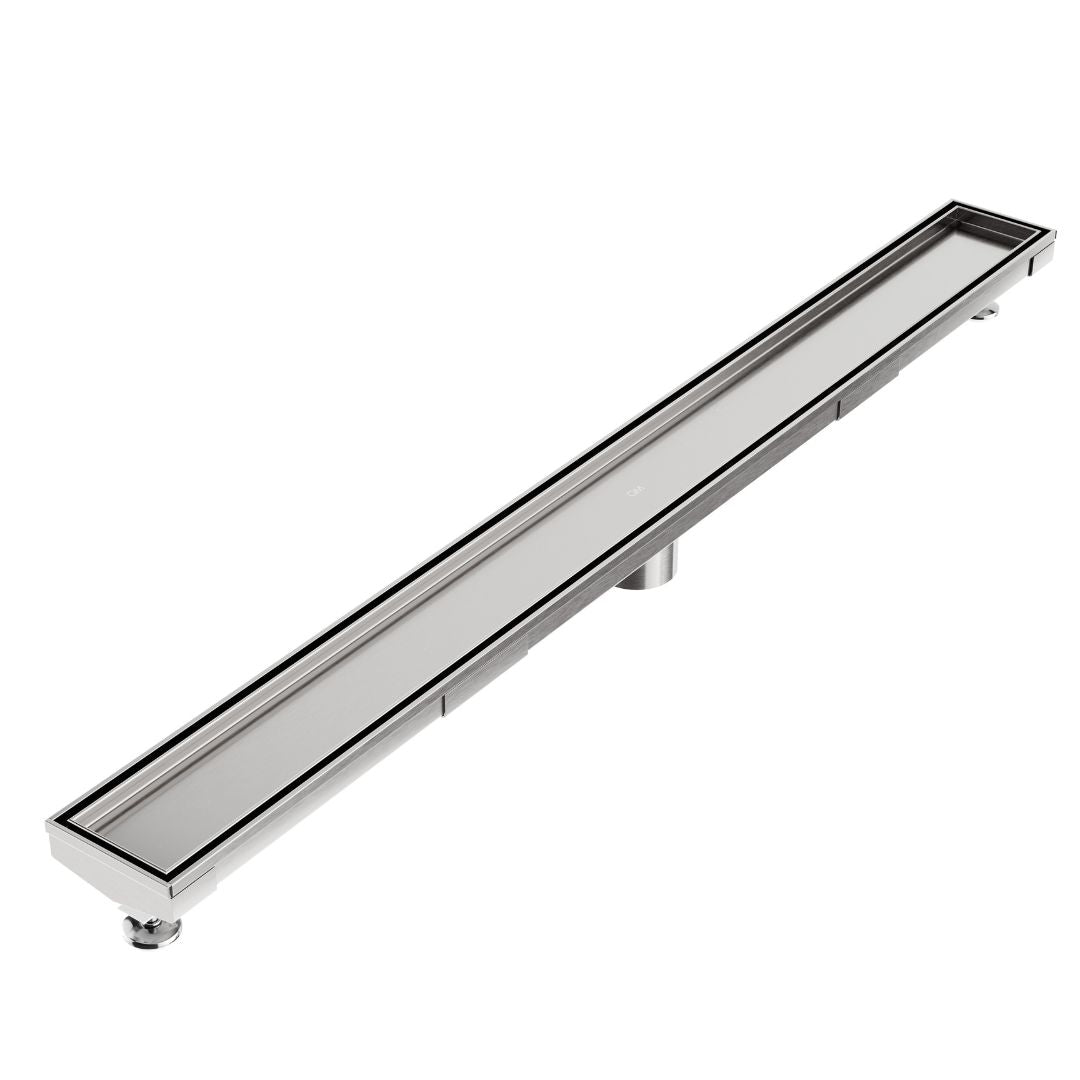

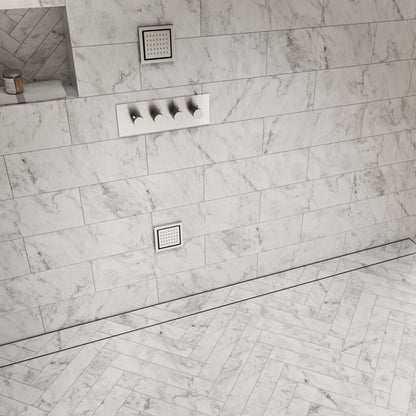

ST – Satin Stainless

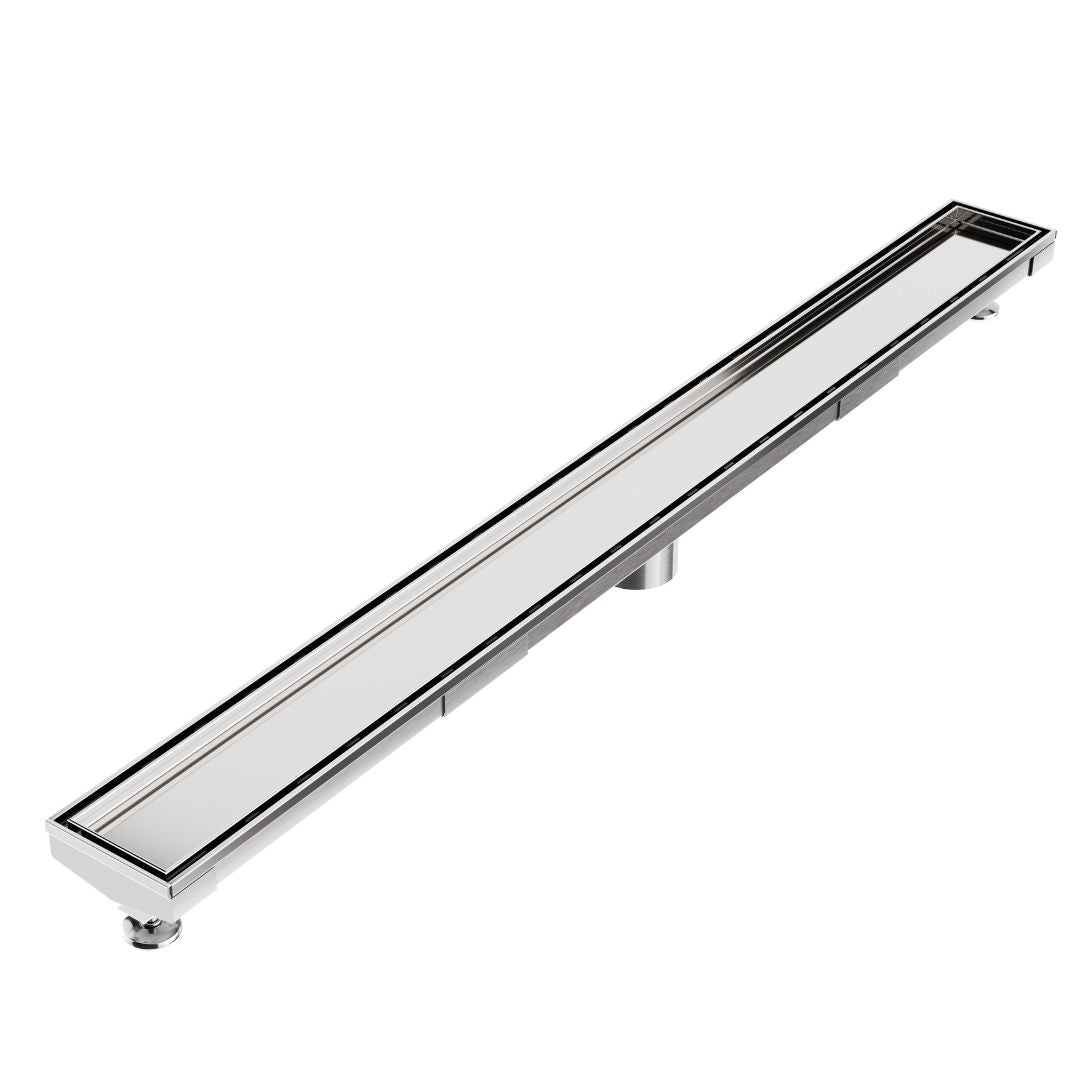

PS – Polished Stainless

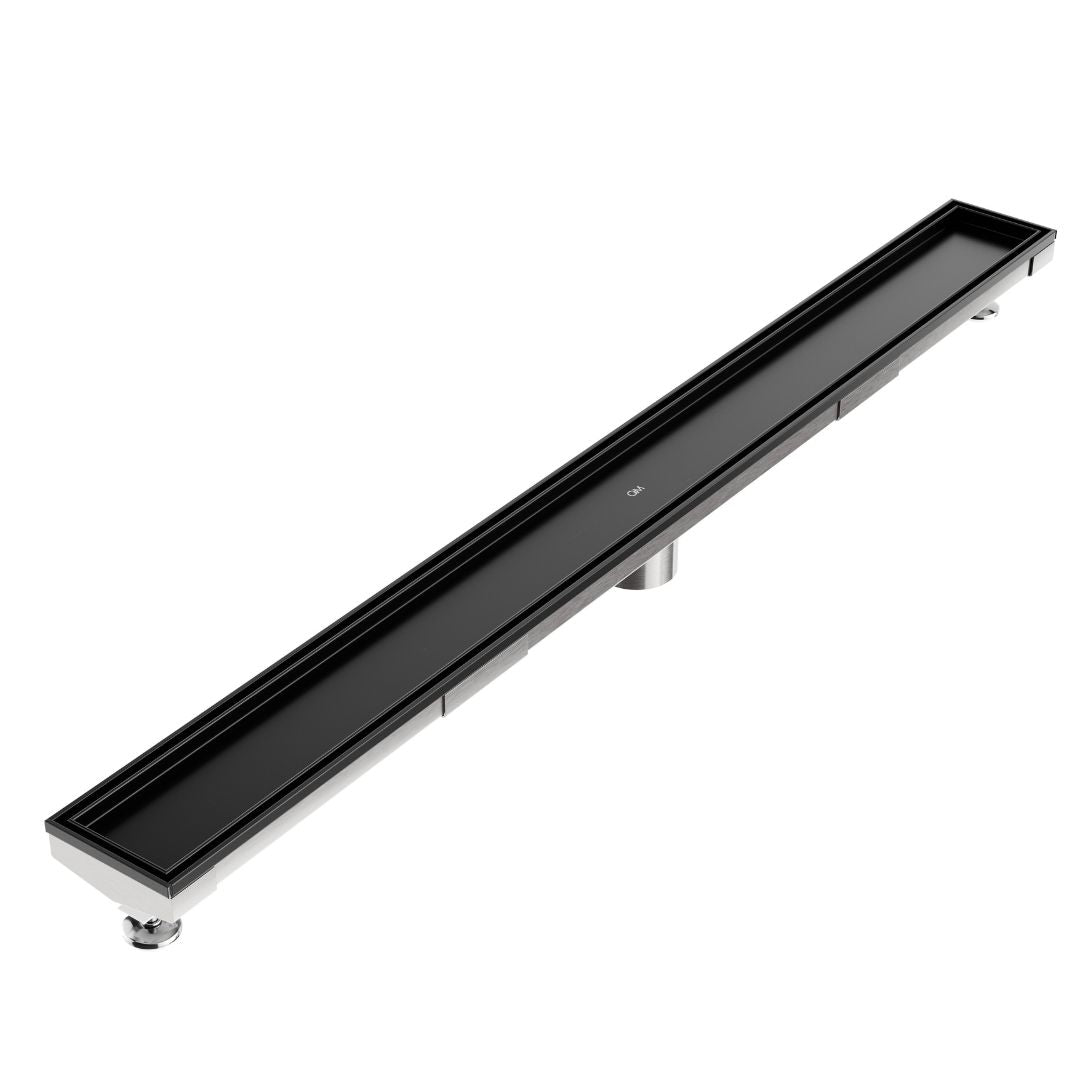

BK – Matte Black

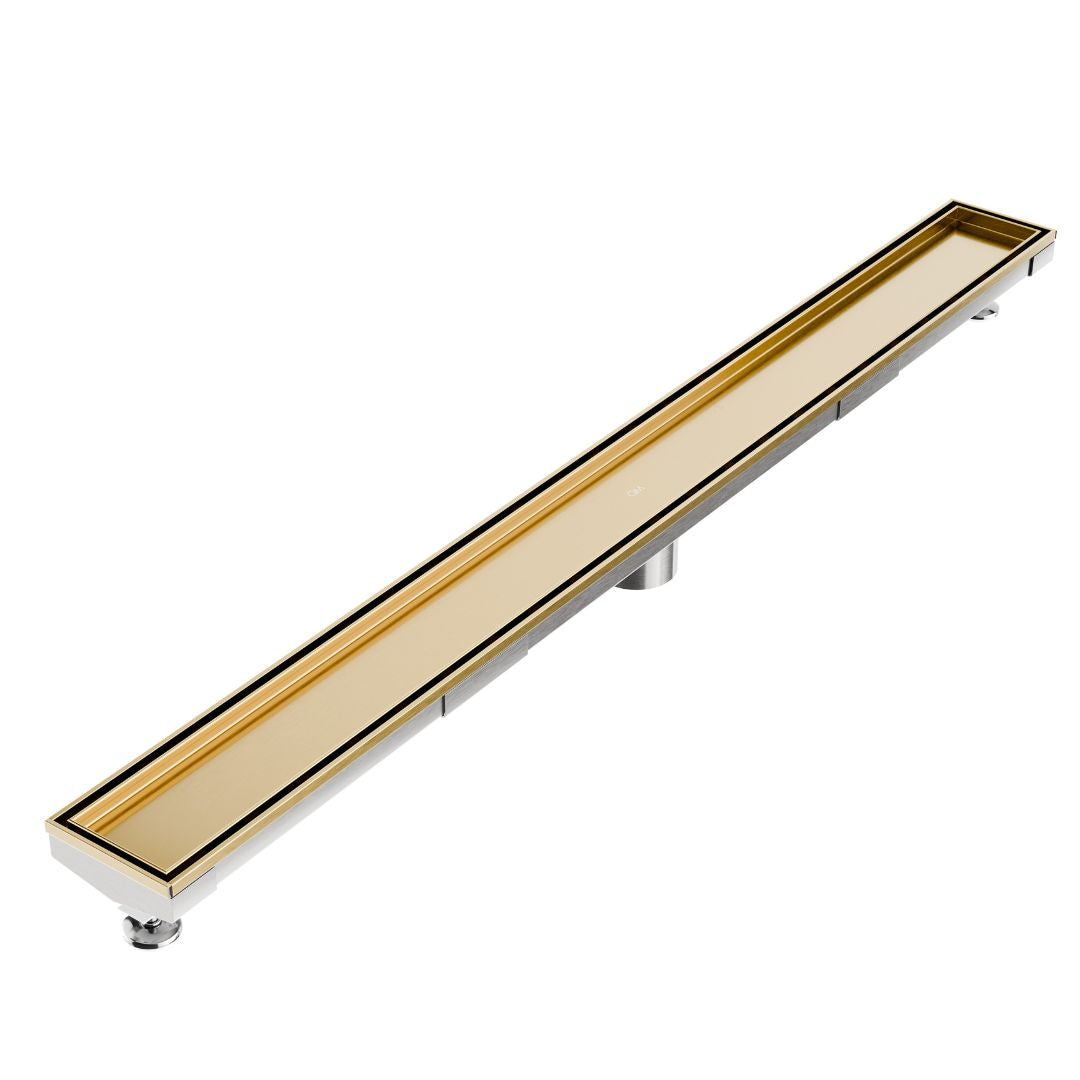

GD – Satin Gold

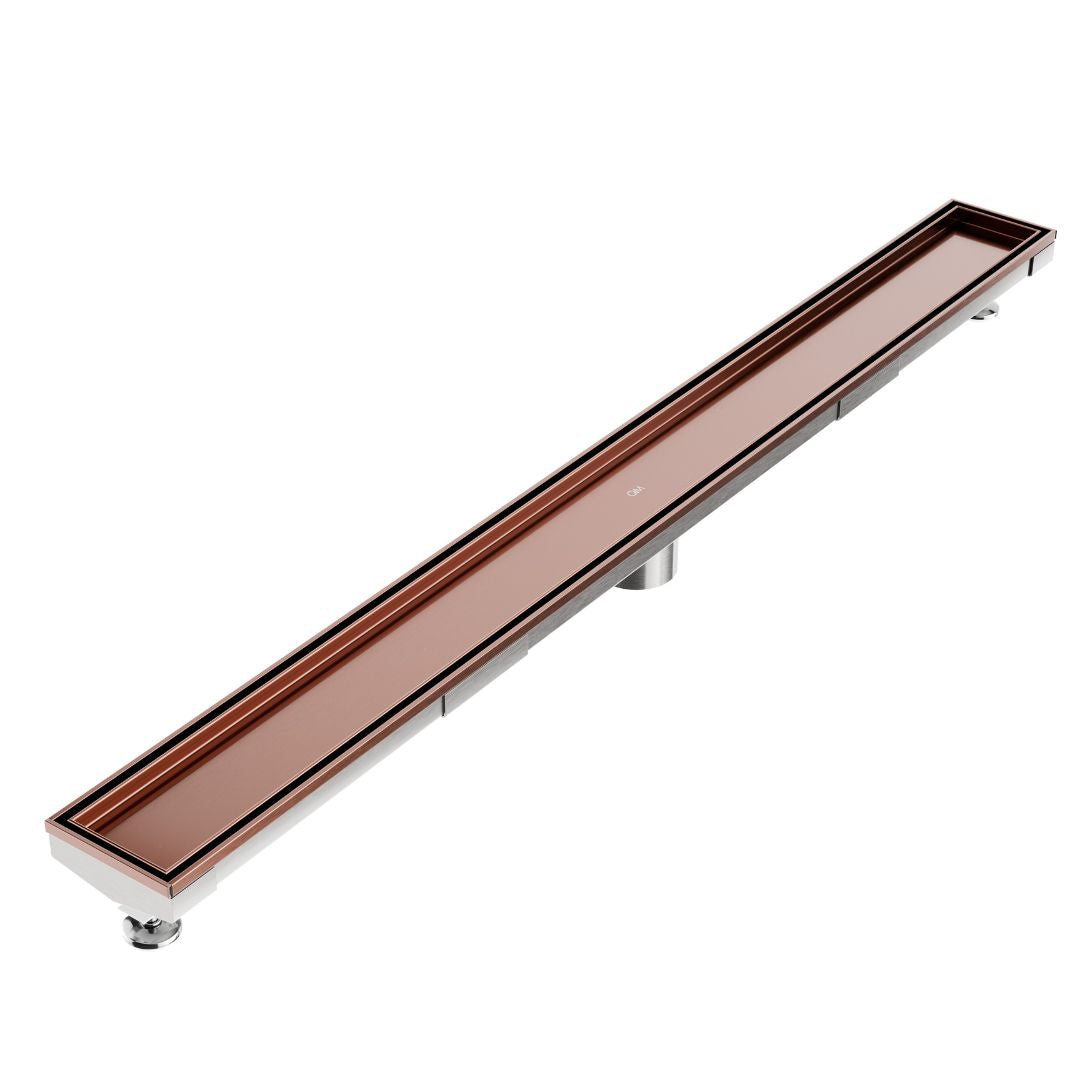

BZ – Satin Bronze

Simple Installation: While the assembly takes a bit of time, the process is straightforward. Designed for compatibility with standard waterproofing methods, pair with our High Flow Clamp-Down Drain Flange for easy installation. For comprehensive installation guidance, please consult our detailed installation instructions and reference our installation video.

Sizes Available: 36'', 48'',60'',72'',96''. Choose the kit with equal or greater size than the desired length; for longer length drains, connect kits with joiners to build the desired length.

Dimensions: Width: 3.25" Height: 1" (low profile)

Need help installing?: Check our installation guide and video for step-by-step instructions.

Click below to view and download:

Technical specifications: Mist (Tile-In) 3" HF Adjustable Delmar Linear Drain

Installation Instructions: Delmar Adjustable Linear Drain

Video: Delmar Adjustable Linear Drain Installation

Click below to view and download:

• View 3D
• file download glb
• file download svg

What Is an Adjustable Linear Drain?

An adjustable linear drain offers the flexibility to adjust lengths and outlet locations to suit various shower sizes and layouts. Unlike traditional linear drains, it can be cut on site to achieve the perfect fit, making it ideal for custom showers or situations where the plumbing cannot be easily altered.

Why Choose an Adjustable Linear Drain?

Adjustable linear drains are particularly beneficial for:
- Non-standard Shower Lengths: Perfect for showers that do not conform to standard sizes, allowing for a custom fit.
- Misaligned Plumbing: Ideal when the existing plumbing outlet is not centered or in an optimal location within the shower, avoiding costly and sometimes impossible plumbing modifications.
- Custom Design Preferences: Allows for precise positioning and length customization, accommodating specific design requirements or aesthetic choices.

Can High Flow Adjustable Linear Drains Be Used for Outdoor Applications Like Decks and Pools? How Does the System Accommodate Custom Layouts?

Yes, our High Flow Adjustable Linear Drains are not only suitable for indoor use but are also perfectly designed for outdoor applications, including decks, pools, balconies, and more. These drains are engineered to efficiently manage water flow in areas requiring effective drainage solutions.

Custom Layouts and Extended Lengths: To accommodate custom layouts and larger areas, multiple kits can be seamlessly connected, allowing you to achieve the desired length and configuration. This flexibility ensures that our adjustable linear drains can meet the specific requirements of your project, regardless of its scale.

Corner Installation: Additionally, we offer a corner accessory that enables the construction of 90-degree angles with ease. This accessory is crucial for projects requiring a wrap-around drain system or for fitting drains in non-linear spaces. The corner piece ensures a smooth transition between drain sections, maintaining both functionality and aesthetic coherence.

How Can I Determine the Correct Size and Placement for My Adjustable Linear Drain?

- Size: Measure your shower area to determine the ideal length for the drain. Adjustable linear drains can then be cut to your specific measurements.
- Placement: Choose a placement that ensures efficient drainage, considering the existing plumbing and your design vision. The flexibility of adjustable drains means they can be positioned to best suit your shower layout.

Can Adjustable Linear Drains Be Cut to Size?

Yes, one of the key features of adjustable linear drains is their ability to be cut on-site. This allows for a tailored fit in your shower, accommodating any specific length requirements or adjustments needed during installation.

What Waterproofing Methods Are Compatible with Adjustable Linear Drains?

Adjustable linear drains are designed to work with standard waterproofing methods, such as PVC liners, CPE liners, etc. These drains ensure a secure and effective integration with these waterproofing systems, providing reliable moisture protection.

Are Adjustable Linear Drains Suitable for ADA-Compliant Showers?

While adjustable linear drains offer flexibility in placement and sizing, ensuring ADA compliance also depends on the overall shower design, including the slope, threshold, and access. Consult with a professional to ensure your shower meets ADA requirements.

What Maintenance Is Required for Adjustable Linear Drains?

To maintain optimal performance, it's important to regularly clean the drain grate and channel to prevent debris accumulation. Most adjustable linear drains feature an easily removable grate, simplifying cleaning and maintenance.

Can I Install an Adjustable Linear Drain Myself?

While it is possible for individuals experienced in DIY projects to install an adjustable linear drain, professional installation is recommended. This ensures that the drain is correctly cut, positioned, and integrated with the waterproofing system for effective performance.
