Delta Delmar Side Outlet Linear Drain

This design is specifically crafted for modern waterproofing methods, providing an all-in-one solution for your shower project. Ideal for new and renovation projects and generally for all bathrooms where space is tight.

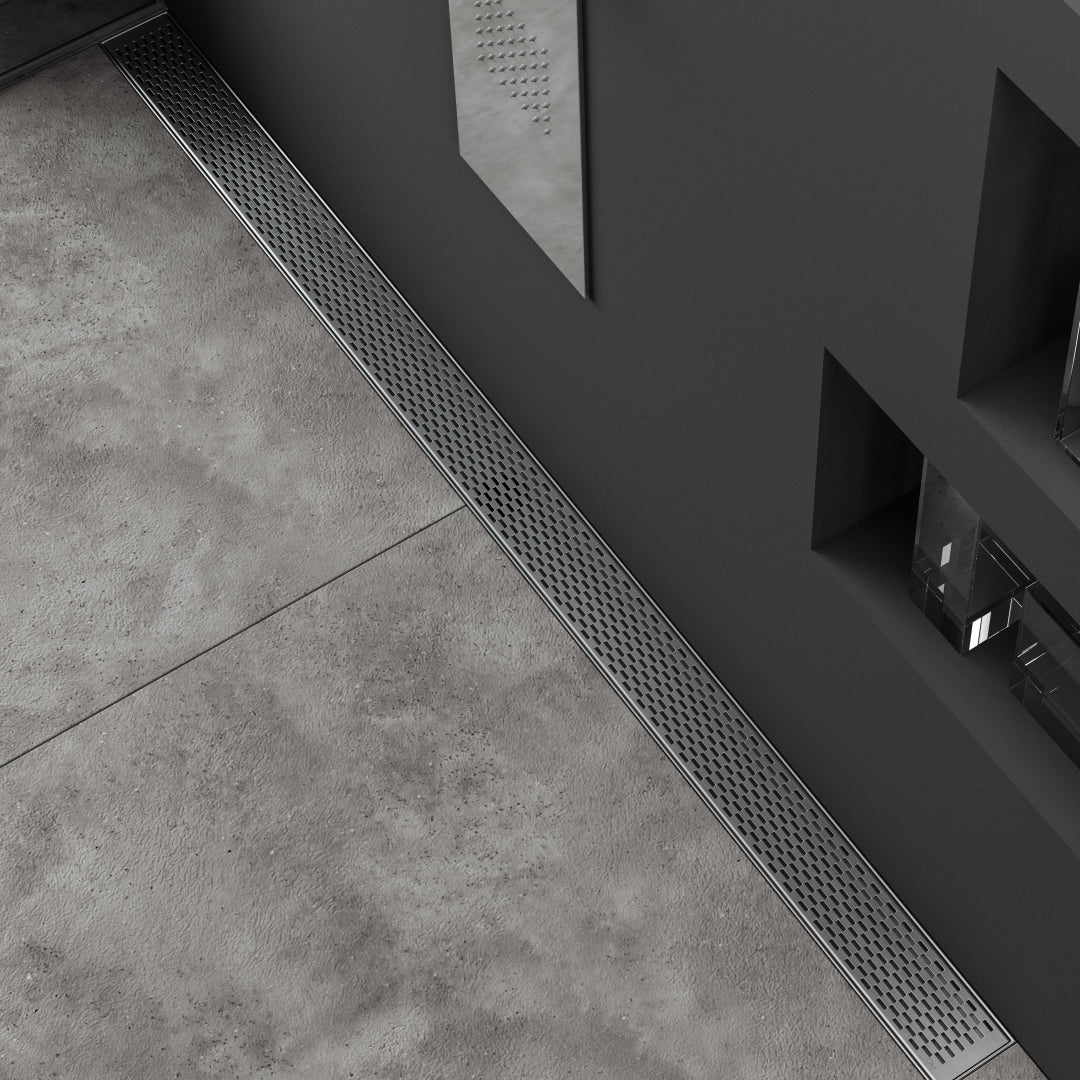

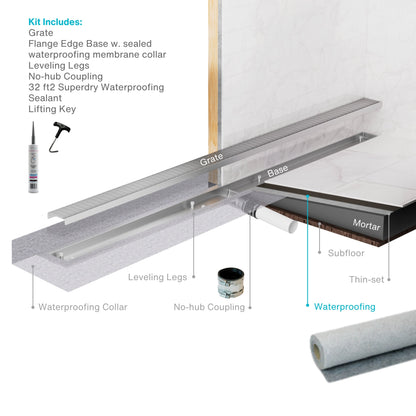

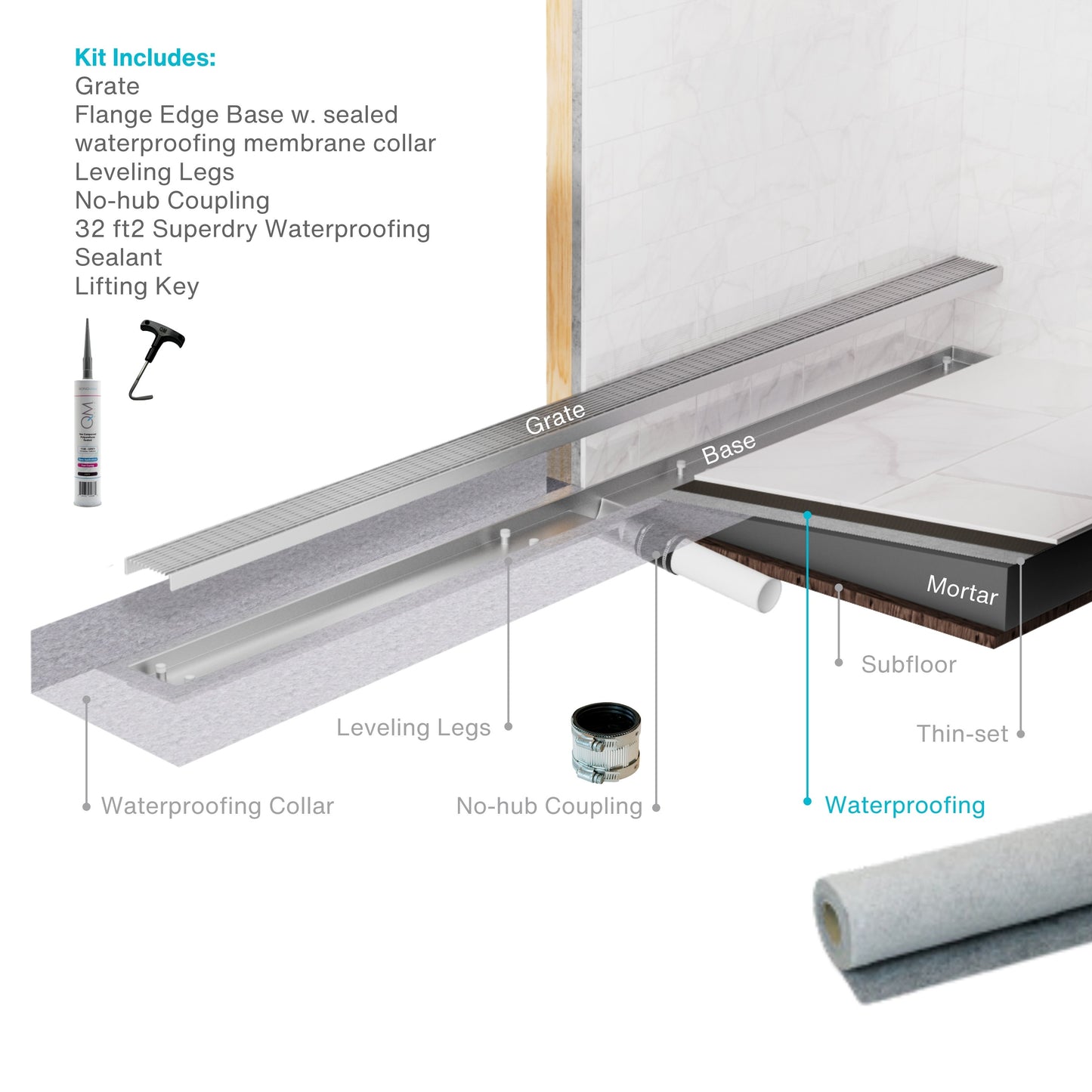

What’s in the kit?

• Side outlet drain channel with pre-attached waterproofing collar
• Delta Linear grate
• 32 sq. ft. of Superdry waterproofing membrane
• Coupling

Low Profile Base: Only 1" high. Includes a flange edge sealed with Superdry waterproofing membrane for a watertight connection.

Efficient Drainage: Features a center-located 2” side outlet for fast, effective water removal. 2'' Outlet offers up to 9 GPM with proper slope.

Premium Quality: Made from marine-grade 316 stainless steel. Resistant to corrosion, perfect for indoor or outdoor use.

Easy to Clean: Removable grate allows for easy access and quick maintenance. (Refer to cleaning instructions for details.)

Finishes Available

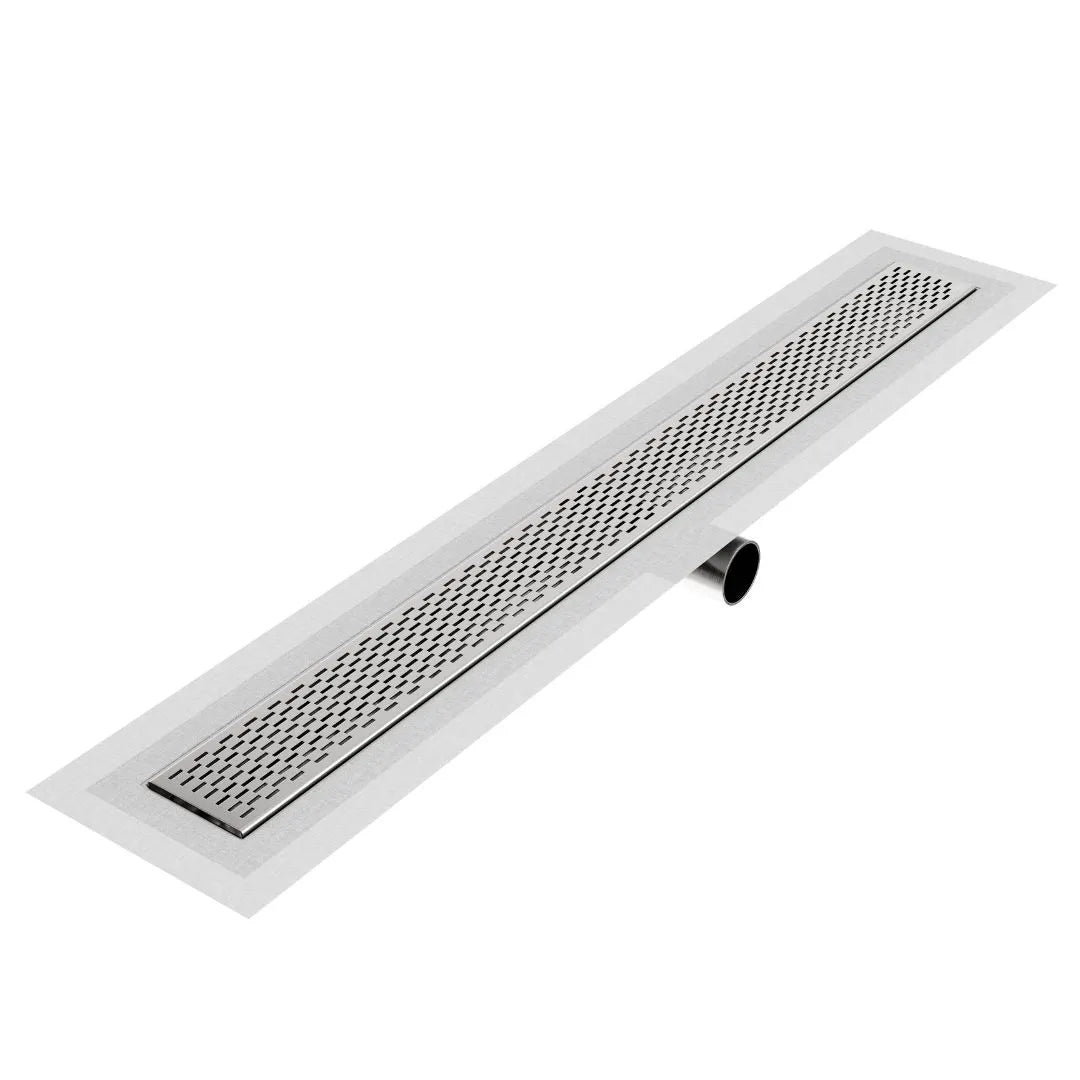

ST – Satin Stainless

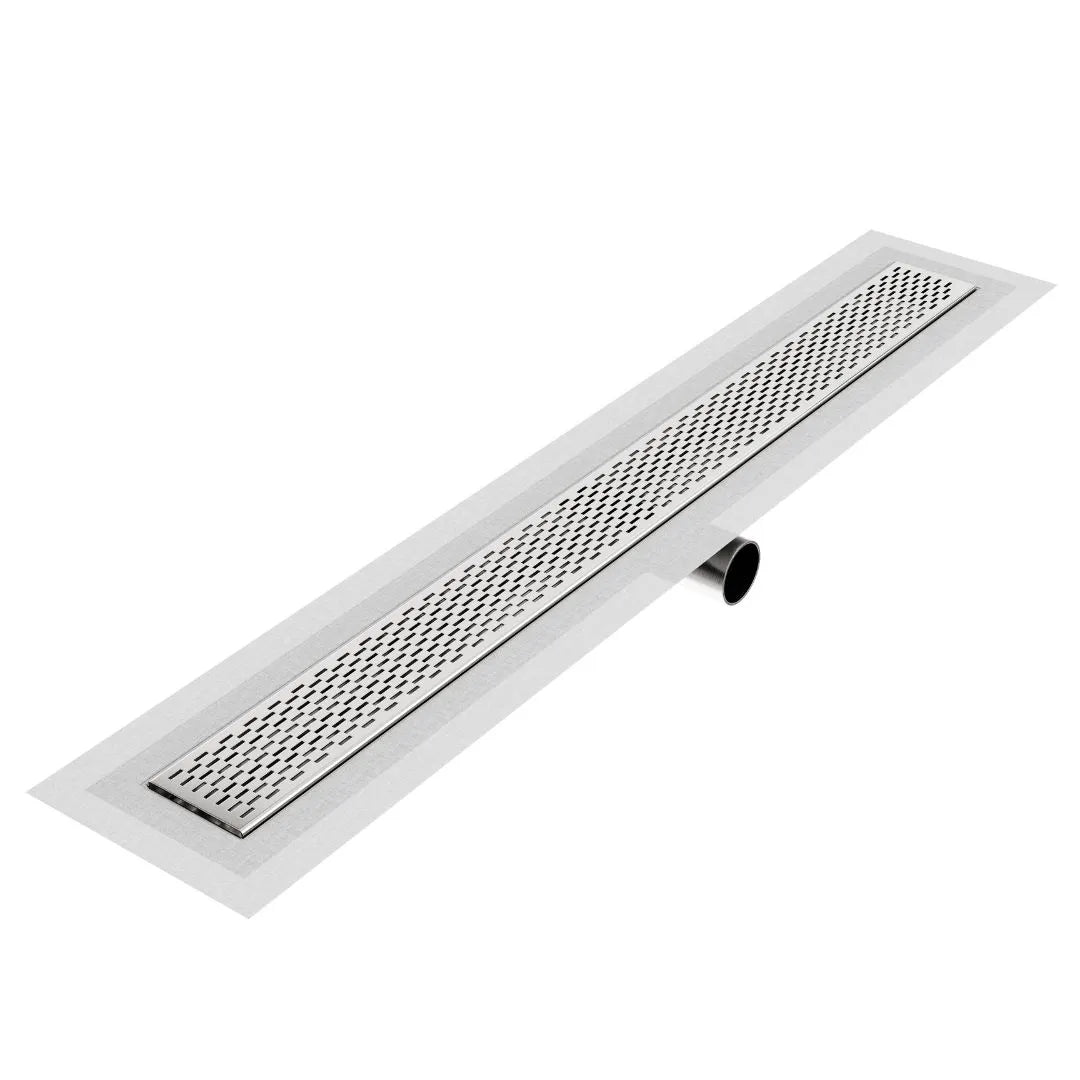

PS – Polished Stainless
BK – Matte Black

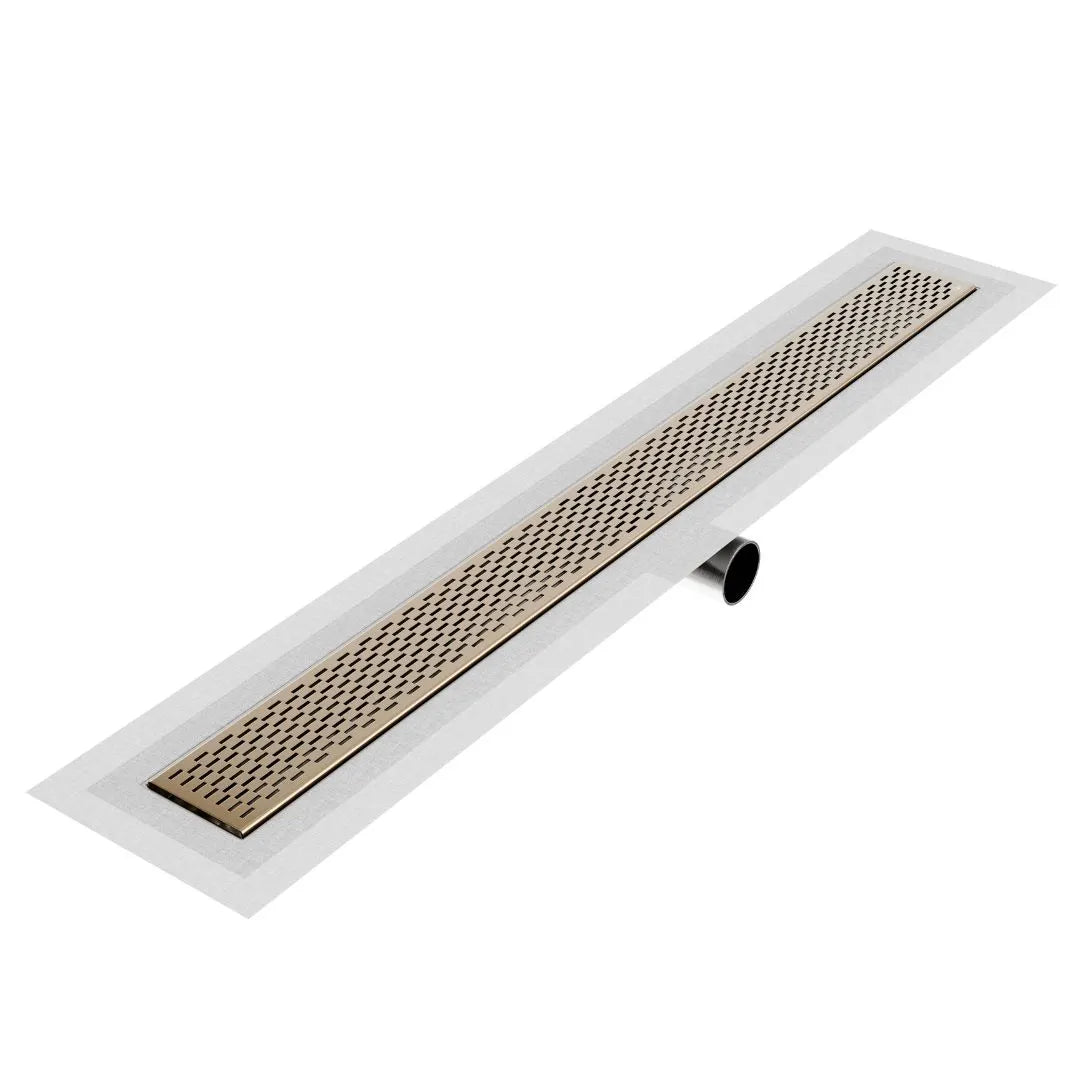

GD – Satin Gold

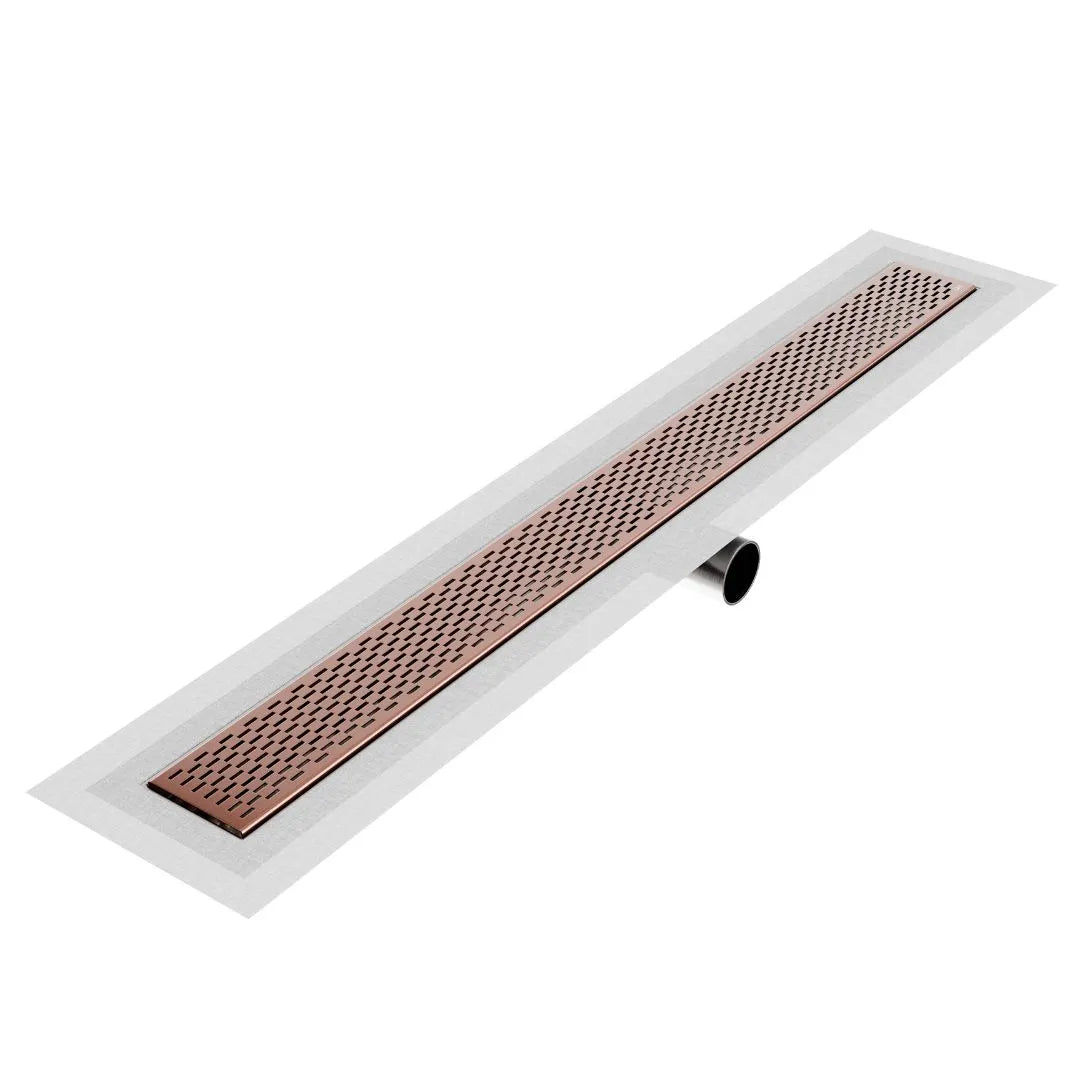

BZ – Satin Bronze

Easy to Install: The waterproofing collar is pre-attached and sealed to the channel. Connects directly to the pipe with an included coupling. 32 sq ft. of Superdry membrane and sealant are included to make the process quick and smooth. For comprehensive installation guidance, please consult our detailed installation instructions and reference our installation video.

For Ultimate Easy Installation: Consider using our Shower Pan Kit for a convenient and quick installation alternative. This all-in-one solution integrates a pre-sloped shower board base and is pre-waterproofed with Superdry waterproofing, making it ideal for mortar-free shower installations! Eliminates the risk of improper slope, saving time and labor.

Sizes Available: 24", 28", 32", 36", 48", 58"

Dimensions: Width: 3.25" Height: 1" (low profile)

Need help installing?: Check our installation guide and video for step-by-step instructions.

Click below to view and download:

Technical Specifications: Delta Side Outlet Linear Drain

Installation Instructions: Standard Flange Edge & Side Outlet Linear Drain

Video: Modern Waterproofing Installation for Side Outlet Linear Drains

Download Design Files:

• BIM: RFA

During a shower installation, when is needed a shower drain linear with side outlet?

A shower drain with a side outlet is needed during installation in certain circumstances where a vertical outlet would not be practical or possible. Here are some scenarios where a side outlet might be required:

Limited Vertical Space: If the space beneath the shower is limited or if there's a solid floor that cannot be easily modified to accommodate a vertical drain pipe, a side outlet allows for drainage without requiring significant alterations to the flooring structure.

Existing Plumbing Configuration: In renovations or remodels, the existing plumbing might dictate the use of a side outlet. If the existing waste line runs horizontally close to the shower installation site, connecting to it directly with a side outlet might be more straightforward than reconfiguring plumbing to allow for a vertical connection.

Prefabricated Shower Bases: Some prefabricated shower bases or pans are designed with side outlets to accommodate specific installation requirements or to offer more versatility in plumbing connections.

Basement Bathrooms: In basement bathrooms where the shower is installed on a concrete slab, cutting into the slab to install a vertical drain can be challenging and costly. A side outlet can be a more practical solution, especially if a drainage system is already in place near the floor level.

Accessibility Requirements: For accessible showers that require a flush transition from the bathroom floor to the shower floor, minimizing the depth of the shower pan and its drainage system can be crucial. A side outlet might help achieve a lower profile for the shower base.
