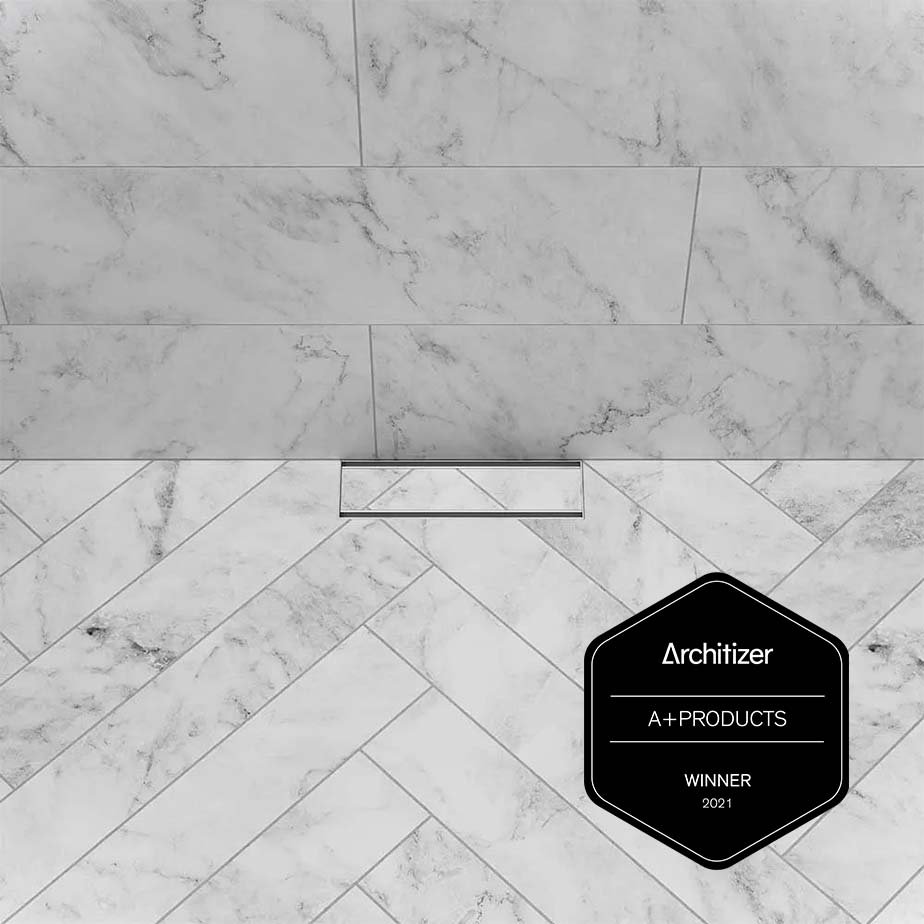

  • Luxury bathroom featuring a high-end design recognized with the Architizer A+ Products Winner 2021 seal. The image showcases elegant fixtures, including a sleek linear drain, seamless tile integration, and a modern, minimalist aesthetic, ideal for contemporary luxury shower and bathroom installations.

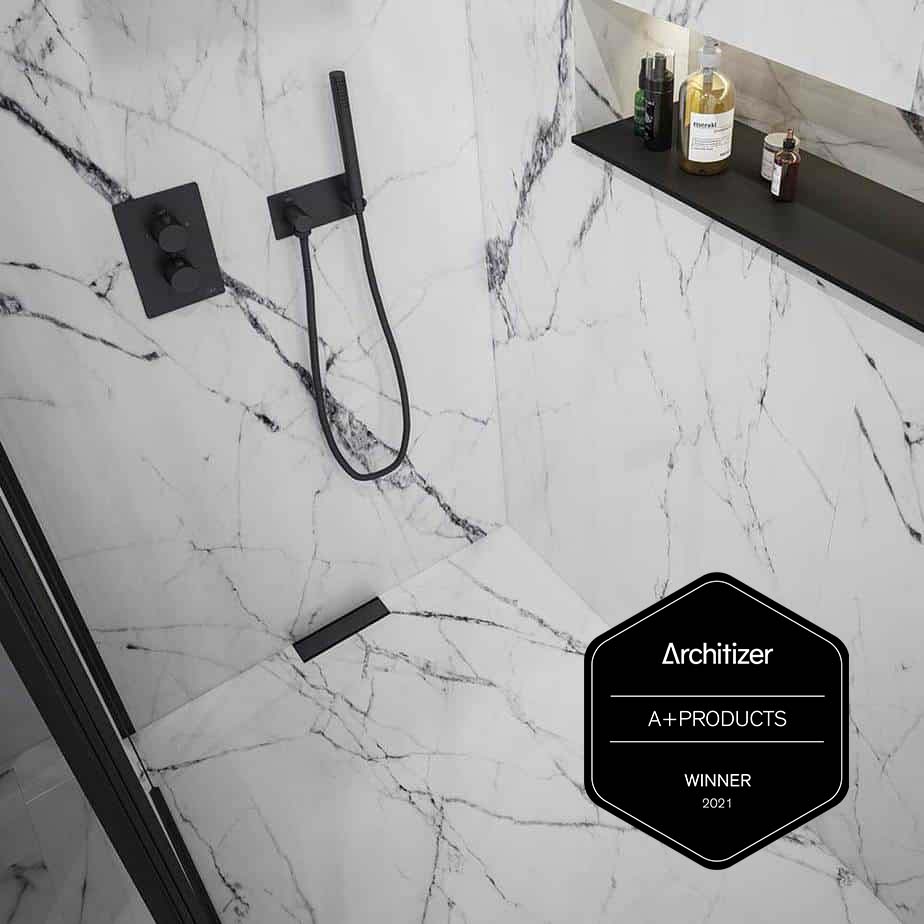

  • Stunning luxury bathroom featuring design elements awarded the Architizer A+ Products Winner 2021 seal. This bathroom showcases sleek fixtures, including a modern linear drain, seamless tile integration, and a minimalist, elegant aesthetic, creating the perfect environment for high-end shower and bathroom installations.

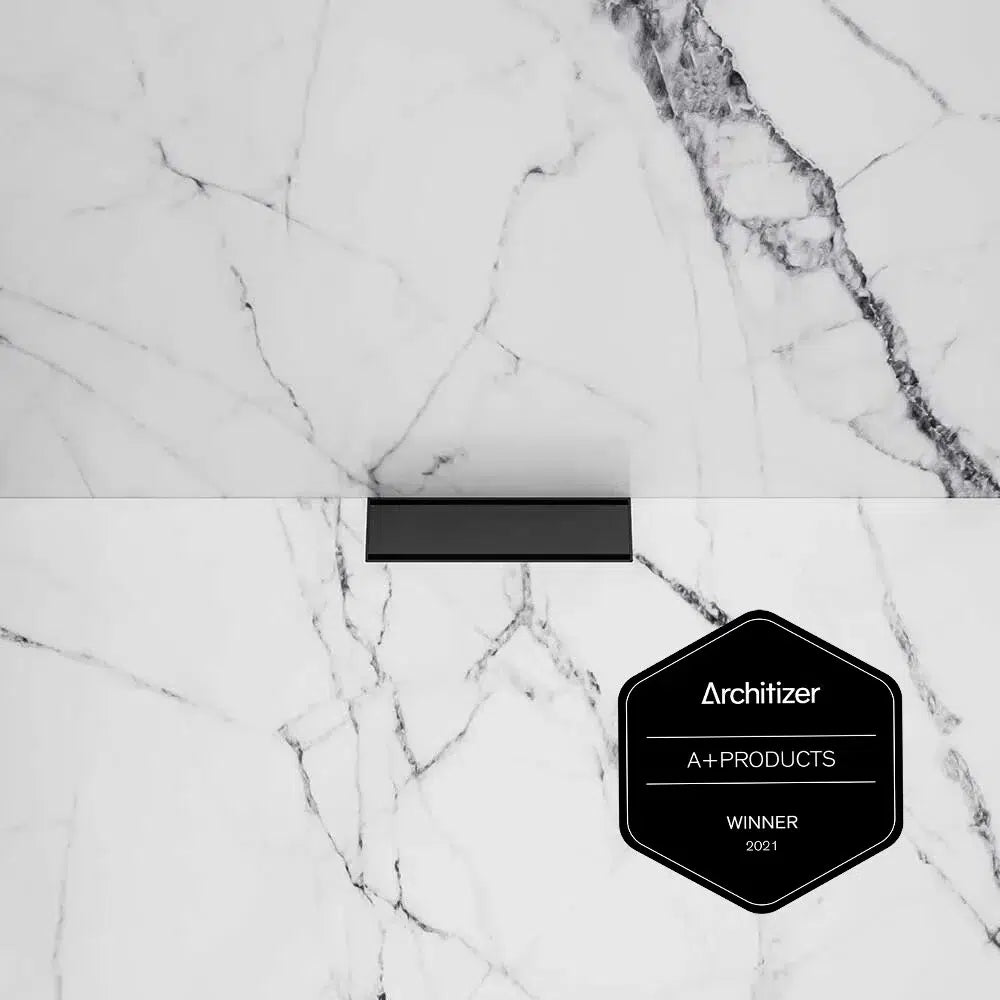

  • QM Drain Supreme 2021 Vista Close-up in Black finish, showcasing a detailed view of the sleek stainless-steel linear drain with precision perforated grate. This drain offers efficient water drainage, a modern aesthetic, and seamless integration into luxury bathroom and shower installations.
  • Modern shower floor showcasing the QM Drain Supreme Tile-In 2-in-1 Drain in Gold finish—tile-integrated stainless-steel channel with dual-function grate and trap design, featuring a seamless waterproof flange and efficient water evacuation for luxury bathroom installations.
1 6

Supreme Tile-In+ Drain

Supreme Tile-In+ Drain

Our Supreme Tile-in + Linear Drain is designed to simplify tricky installations. When a shower’s plumbing is slightly off-center, most drains require you to relocate pipes, adding time, cost, and frustration to your project.

The Supreme solves this problem with an independent base and internal rail system, letting you position the bottom outlet off-center within 8'' to the center of the shower. This allows the 8'' visible grate section to appear centered without tearing up the floor or adjusting plumbing.

The reversible 8'' grate offers two stylish options: one side has a tile-in grate for a seamless look, the other side is solid stainless steel. It’s universal in size and can be cut or aligned with multiple drains to fit your layout.

Made from 316 stainless steel, it's built to last in any space—residential or commercial, indoor or outdoor. Compatible with standard waterproofing methods, it includes everything needed for easy installation.
Whether you're remodeling or starting fresh, Supreme Tile-In+ delivers flexibility, durability, and modern design—without the hassle of moving pipes.

Finishes: Satin

33.810.08 ST

$550.00 USD
$550.00 USD
Sale Sold out
Shipping calculated at checkout.

    FEATURES

    Flexibility: Supreme’s superior design provides a flexible 8” range from the center of the shower, allowing you to center your drain without moving the existing pipe.

    What's in the kit?

    • Supreme Grate + Removable Reversible Grate Section
    • Drain Channel
    • Threaded Nipple/Adapter

    Tile-in + Grate: Offers design flexibility with a 2-sided grate. One side for a tile insert and the other side, a sleek, solid stainless steel look.

    Channel: houses an internal rail system which enables the grate to be in a different position than the base and the outlet allowing you to center your drain without moving the existing pipe.

    Outlet: Drain base has an offset 2” outlet. This feature allows you to rotate the base to accommodate a left or right position and the sliders adjust to connect the grate in a different position than the outlet.

    Grate: reversible, universal “one size fits all”. Multiple drains can be aligned to accommodate multiple outlets.

    Premium Material: 100% Stainless Steel Marine 316.

    Easy installation: Designed for compatibility with standard waterproofing methods. A threaded adaptor with rubber O-ring enables height adjustment and secure attachment to the clamp-down drain.
    For comprehensive installation guidance, please consult our detailed installation instructions and reference our installation video.

    Versatile Application: Suitable for both indoor and outdoor showers, expanding its utility and adaptability.

    SPECIFICATIONS & INSTALLATION

    Click below to view and download:

    Technical specifications: Supreme Tile In + Linear Drain

    Installation Instructions: Supreme Tile In + Linear Drain

    Video: Supreme Linear Drain Installation Instructions

    ARCHITECT & DESIGNER RESOURCES

    FAQ

    What is the Supreme Tile-In+ Drain and what flexibility does it offer?

    The Supreme Tile-In+ Drain is a cutting-edge drainage solution designed to offer maximum flexibility in shower construction. Its superior design includes an 8” range of adjustability from the center of the shower, allowing the drain to be centered without the need to move existing plumbing.

    How does the channel design contribute to the Supreme Tile-In+ Drain's flexibility?

    The drain channel houses an internal rail system, enabling the grate to be positioned independently from the base and the outlet. This allows for precise alignment of the drain with the shower's center, regardless of where the existing plumbing is located.
    The drain base features an offset 2” outlet, which can be rotated to accommodate either a left or right position. The sliders within the system allow for the grate to connect in a position that is different from the outlet, providing additional flexibility during installation.
