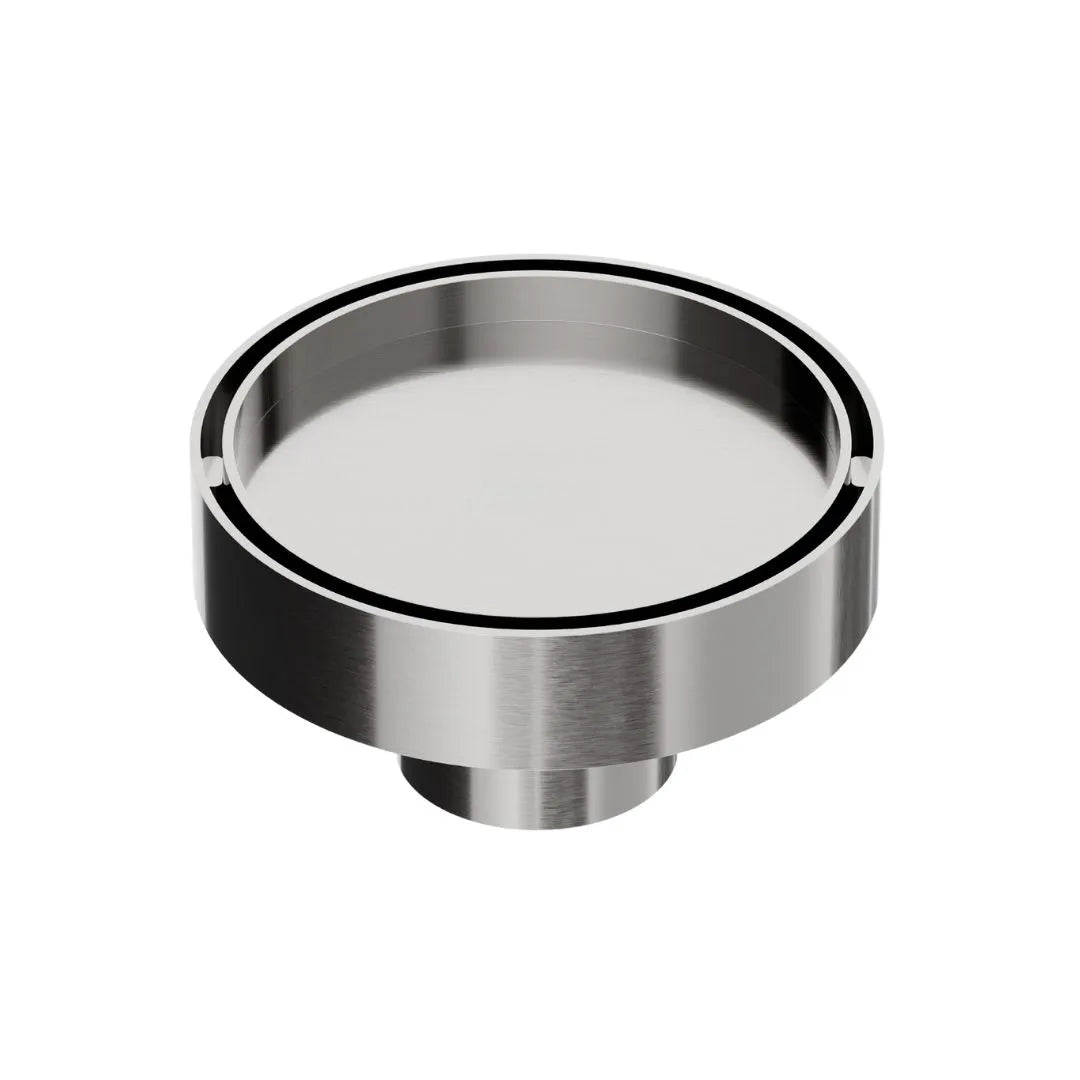

Delmar Mist Couture (Tile-In) Round Shower Drain 5"

Center Drain | Round 5" | 2'' Outlet

Materials: Marine Grade Stainless Steel 316, Thickness: 12 Gauge (2.5 mm)

Reversible Tile Insert Grate: Accommodates any tile, stone, or flooring material up to 3/8” thick, offering a custom, modern touch to your bathroom's design.

Full Kit: Includes drain base, 2-in-1 grate, lifting key, and hair basket.

Efficient Outlet: Features a center-located 2” outlet for effective and efficient water drainage up to 6GPM.

Easy Cleaning: Removable grate and hair strainer facilitate hassle-free maintenance and prevent clogs.

Versatile Application: Suitable for both indoor and outdoor showers, commercial or residential spaces.

Simple Installation: Designed for compatibility with standard waterproofing methods, pair with our 2” Clamp-Down Drain Bases for easy installation.

Consult our detailed installation instructions and reference our installation video for an efficient installation process.

Finishes Available: Satin (ST), Gold (GD), Bronze (BK), Black (BK), Polished (PS), Champagne (CH), and Luxe Gray (LG).

Product Warranty: Certain finishes (Polished, Luxe Gray, Champagne, Bronze, Black, and Gold) carry a 3-year warranty. See warranty page for more details: https://qmdrain.com/pages/warranty-qmdrain

30-Day Return Policy: See more details: QM Drain Return Policy

Technical specifications: Delmar Couture Mist (Tile-In) Round Drain

Quick Specs
Dimensions: 5'' Round Drain | Height: 1.15" (low profile)

Resources (PDFS & Videos)
Click below to view and download:

Round Delmar Couture Mist (Tile-in) Shower Drain Specifications (PDF)
Download the drain specs PDF with dimensions, materials, SKU numbers, and performance data.

Delmar Shower Drain Installation Guide (PDF)
A complete installation guide covering tools, preparation, and waterproofing.

Delmar Shower Drain Installation Video
Watch the full video tutorial showing the installation process from start to finish.

What is a 2-in-1 shower drain?

A shower drain that can be easily reversed to switch the grate design. Tile-insert or flat stainless steel for a sleek finish.

What is the maximum tile height for the Delmar Mist (tile-in) drain?

3/8'' tile height max

What is the warranty on this drain?

Coverage: Defects in functionality and finishes.
Finish Warranty: 3 years for specialty finishes (Polished, Black, Gold, etc.). For complete terms, visit the QM Drain Warranty Page.

Why is 316SS the best material for shower drains?

Most corrosion-resistant stainless steel, often used in medical tools, food service for it's hygenic properties.

Is the Delmar Mist Couture Round Drain easy to install?

Yes, it's designed for efficient and reliable installations in tile showers. For full installation instructions, check out the installation PDF here:

Is QM Drain compatible with Schluter Systems?

No, QM Drain is not compatible with Schluter Systems, and combining these 2 brands will result in warranty termination. Shop Modern Waterproofing for Center Drains Here: Shower Waterproofing Kit (For 4''x4'' Drains)

Is the Delmar Mist Couture Round Drain easy to clean?

Yes, with the included lifting key and hair strainer, maintenance is simple and easy!

How can I reverse the grate on this drain?

When you're ready to switch the 2-in-1 grate, simply insert the lifting key in between the drain base and grate and gently lift. Once the grate is removed, flip it to the desired side and re-insert it in the base.
