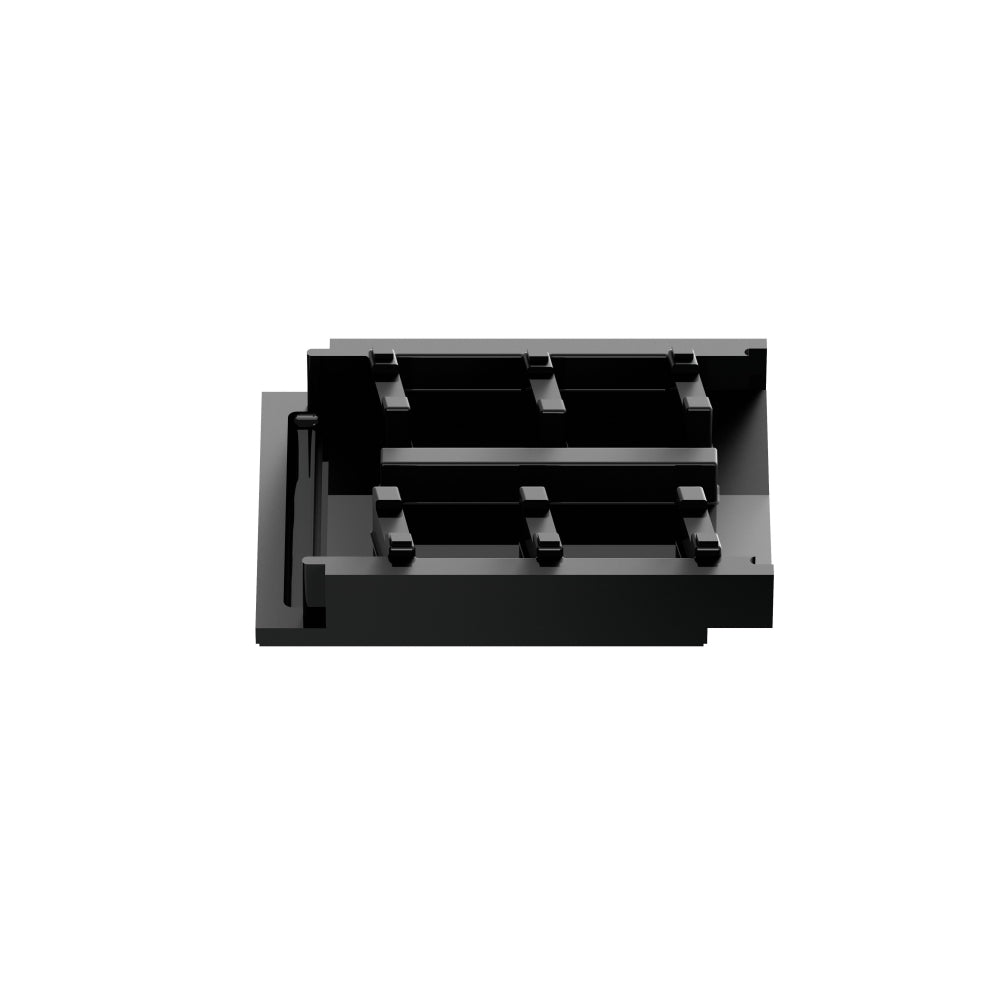

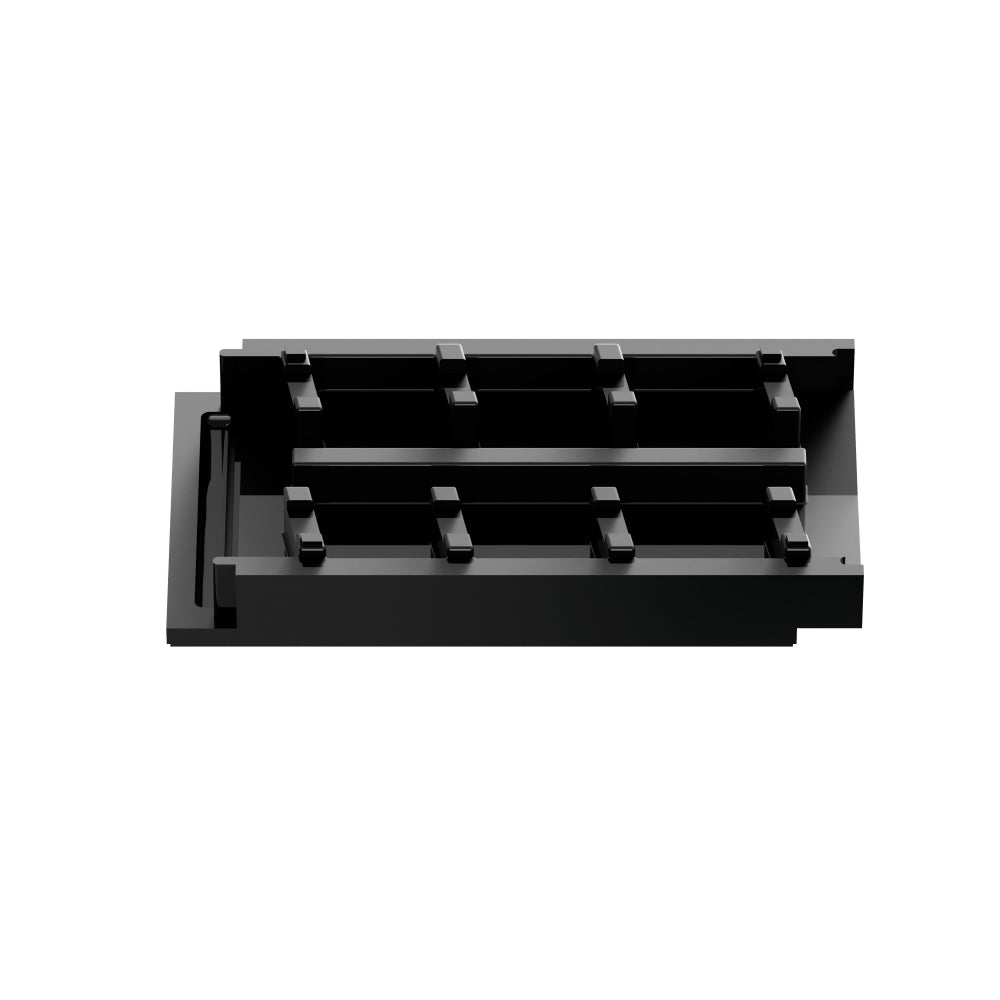

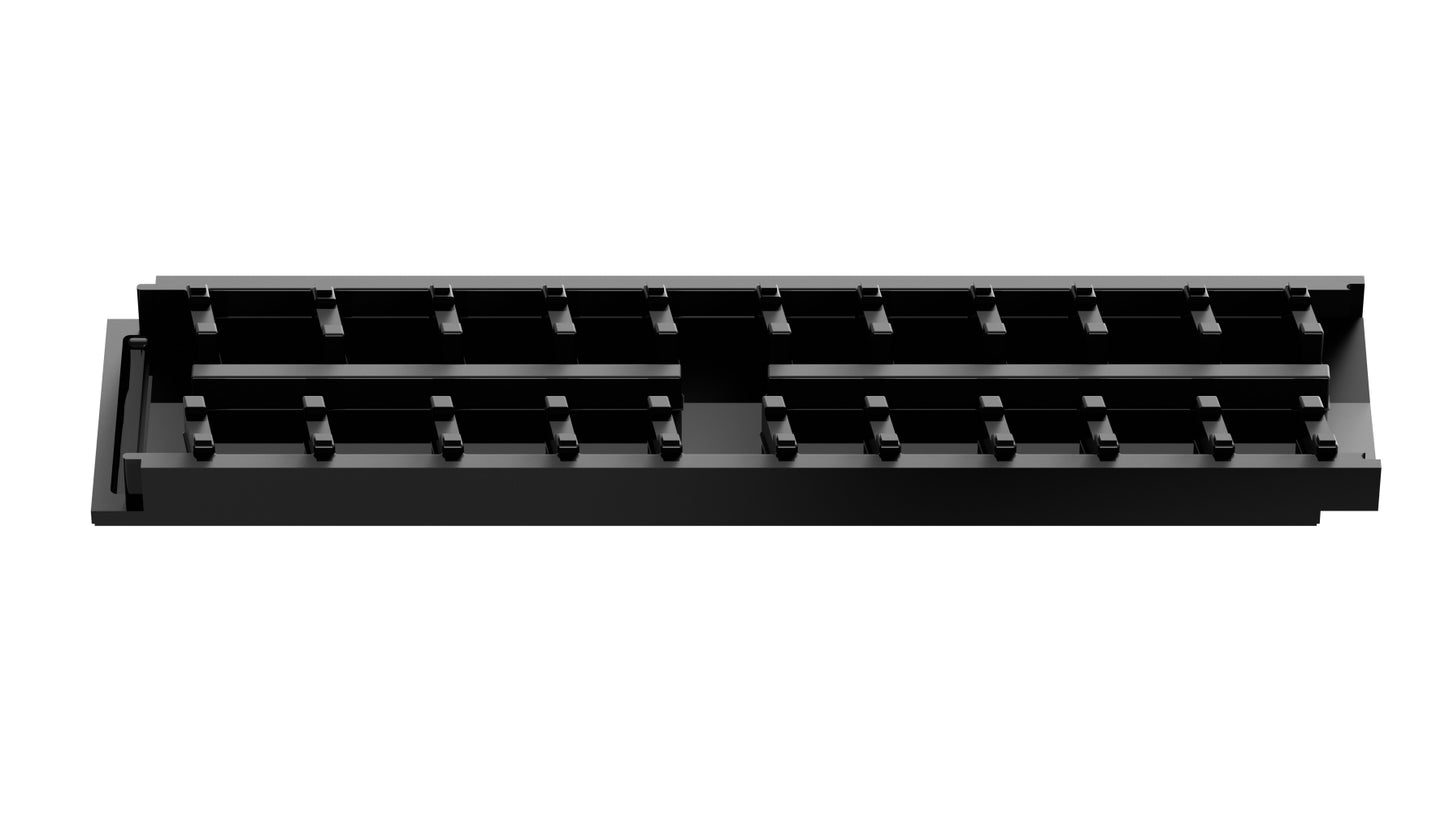

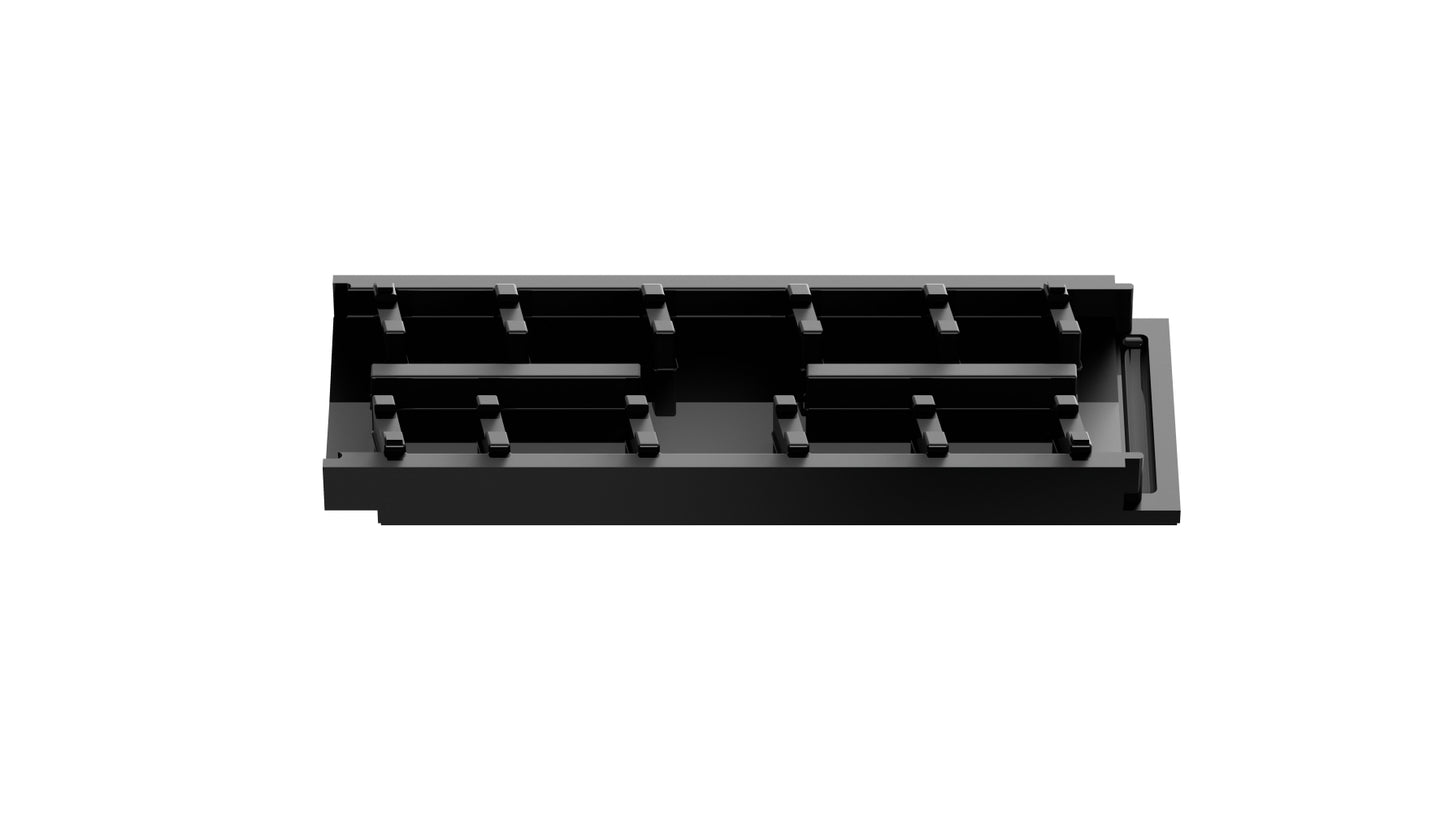

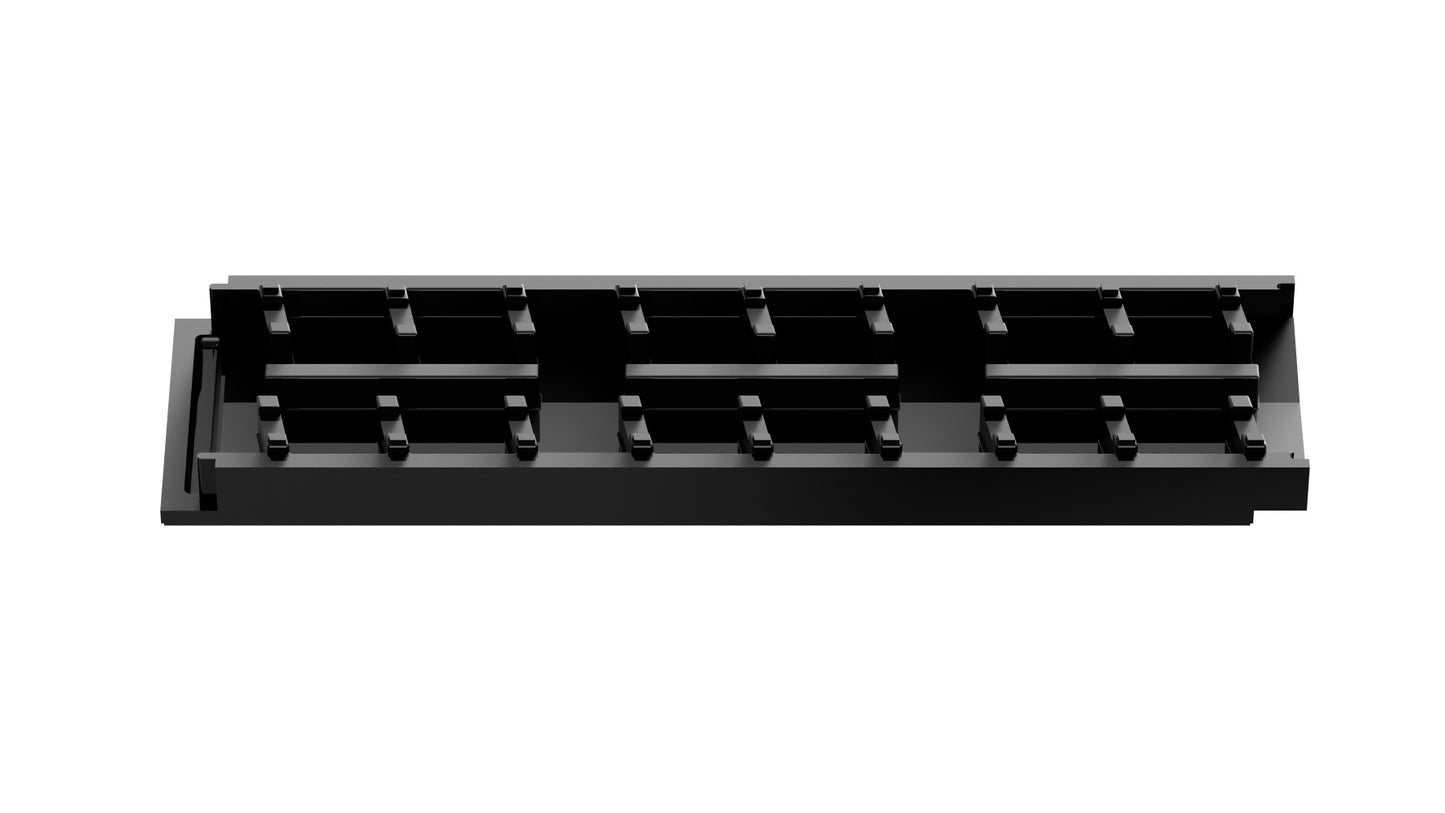

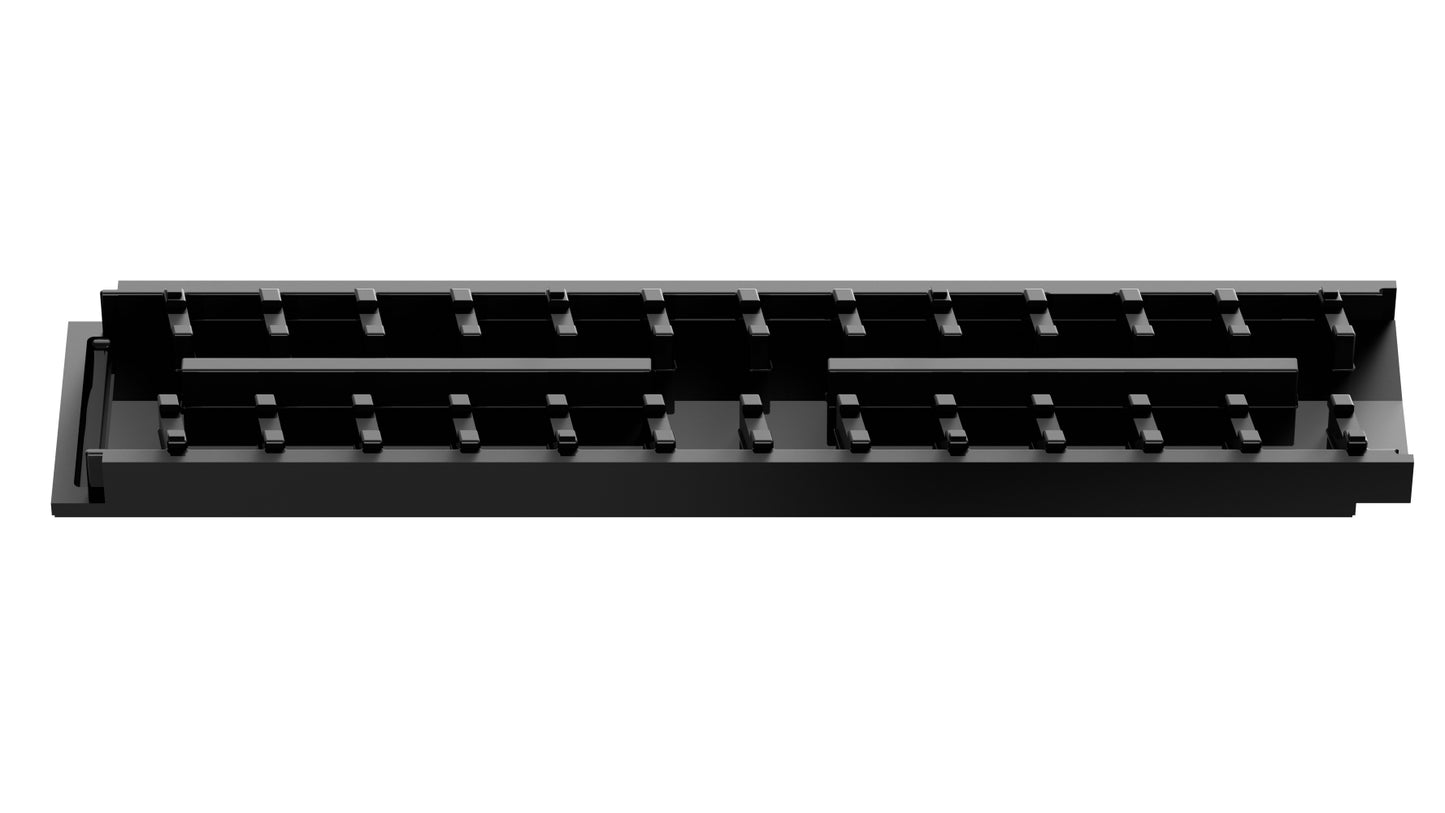

  • QM Drain Invisible Modular Linear Drain System Channel 38", designed for seamless integration into high-end Indoor and outdoor installations. This system offers efficient water drainage, sleek aesthetics, and a modular design that provides a minimalist, modern solution for luxury shower environments.
  • QM Drain Outdoor Channel, a stainless-steel drainage solution designed for outdoor spaces. Featuring a perforated grate and integrated waterproof flange, this channel ensures efficient water flow and seamless integration into patios, pool decks, and other exterior installations.

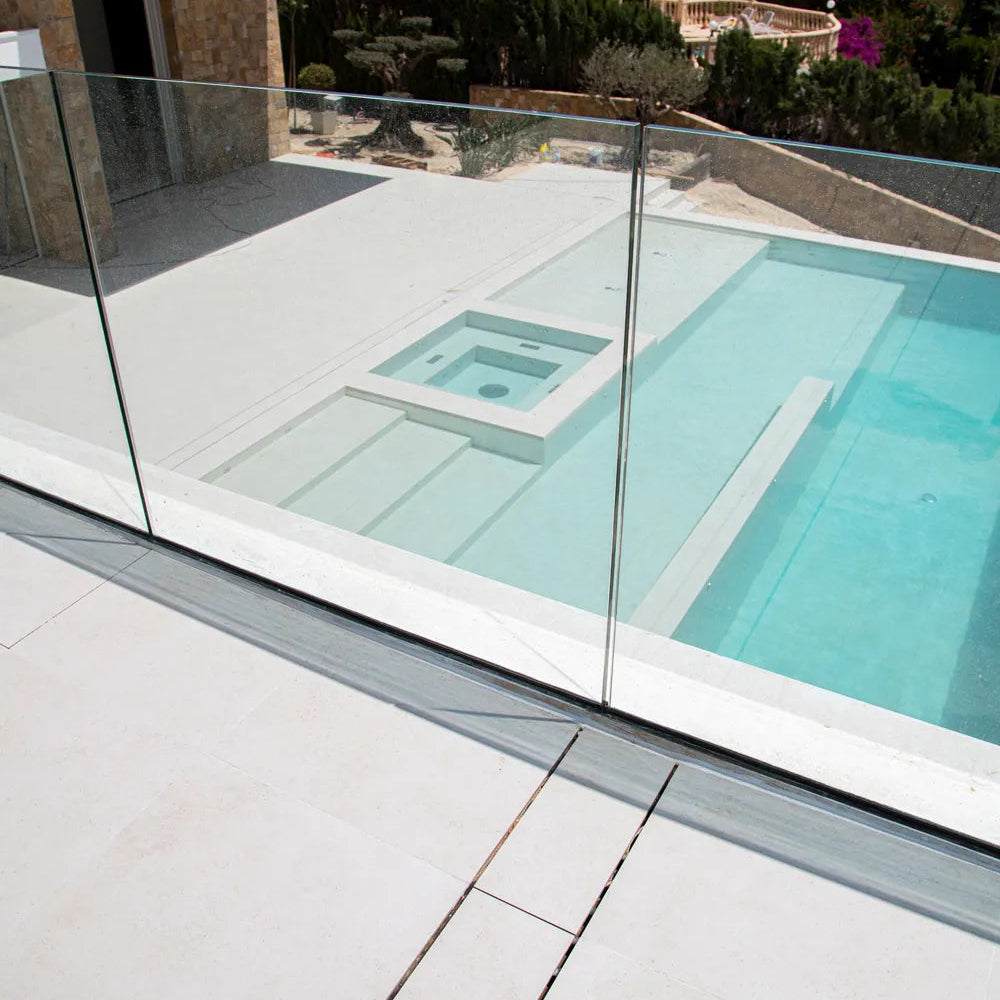

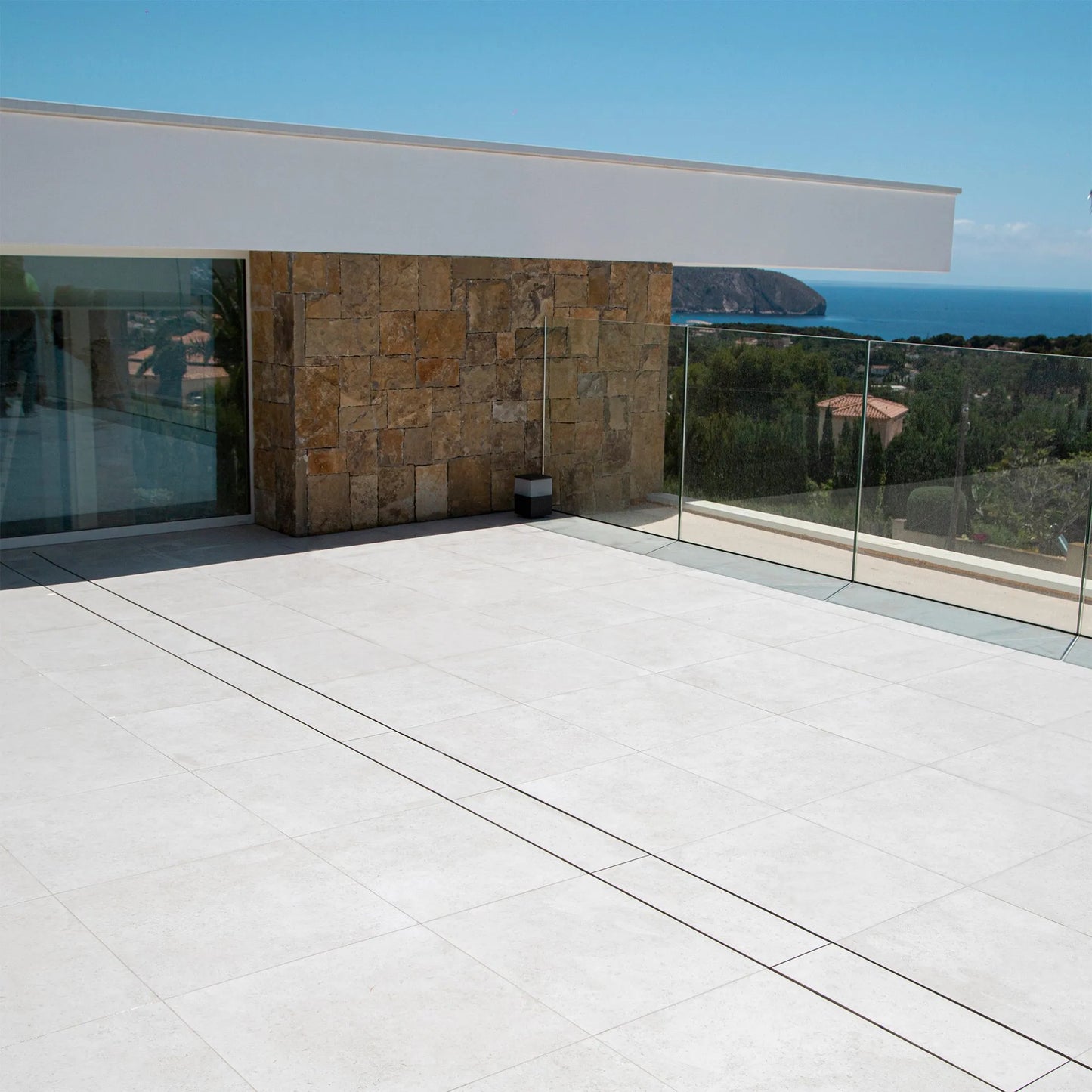

  • QM Drain Invisible Modular Linear Drain System installed in a deck, providing seamless integration for efficient water drainage. This system is designed for modern outdoor spaces, offering a sleek and minimalist aesthetic while ensuring optimal performance in luxury poolside or patio installations.
  • QM Drain YouTube video showcasing the Invisible Outdoor Drain System, demonstrating its seamless integration in outdoor spaces such as patios, terraces, and pool areas. The video highlights the system’s efficient drainage, minimalist design, and modern aesthetics, ideal for high-end outdoor installations.

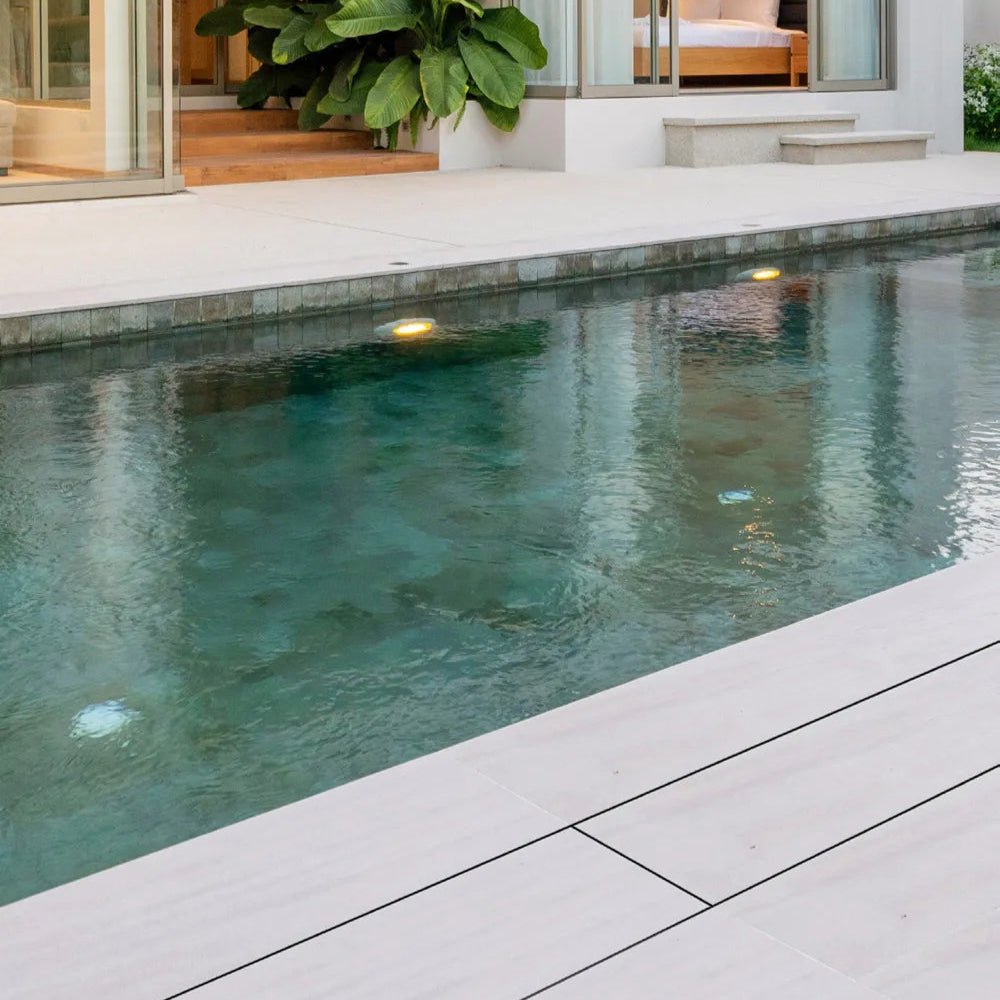

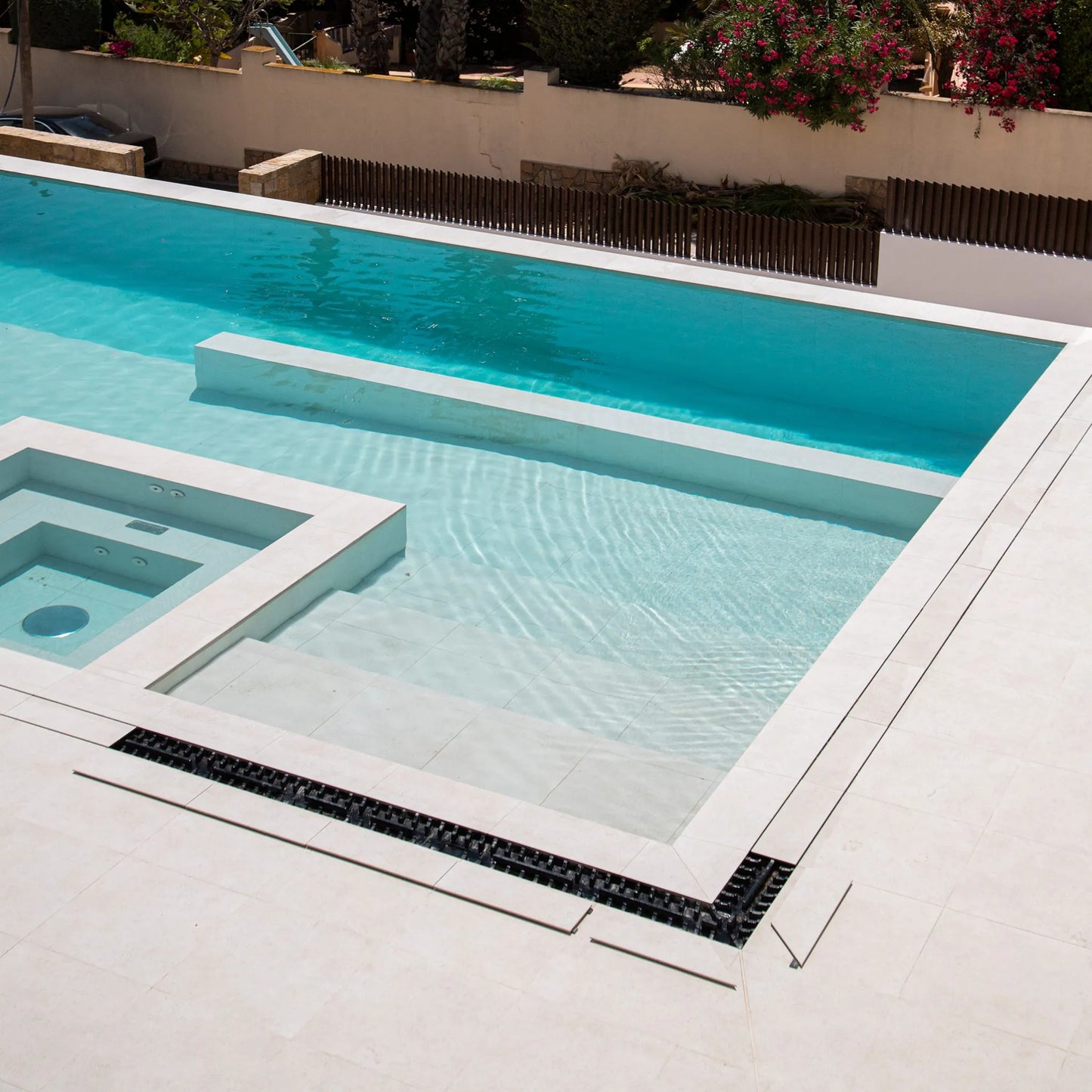

  • QM Drain Invisible Modular Linear Drain System installed in a deck, providing seamless integration for efficient water drainage. This system is designed for modern outdoor spaces, offering a sleek and minimalist aesthetic while ensuring optimal performance in luxury poolside or patio installations.

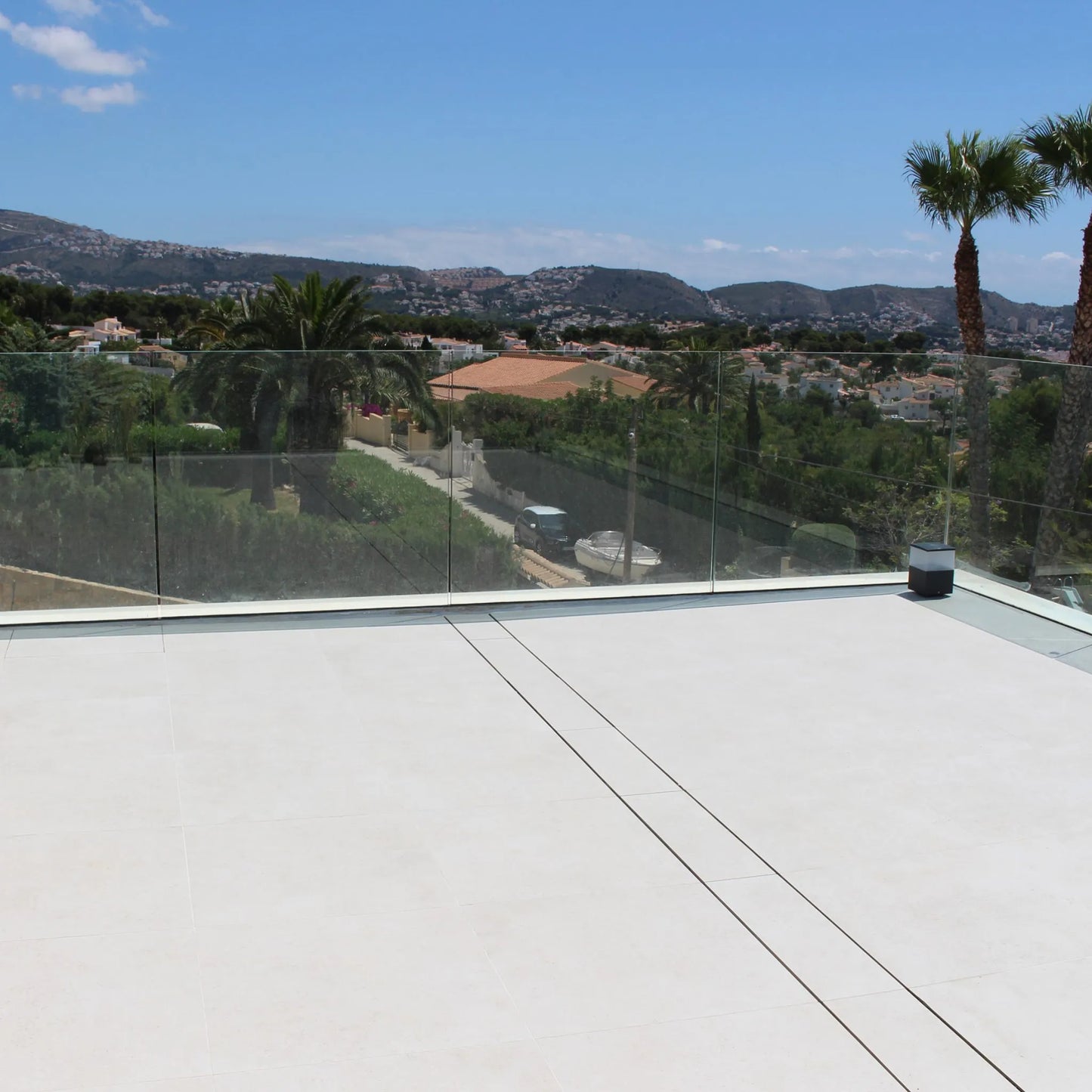

  • QM Drain Invisible Modular Linear Drain System installed in a deck, providing seamless integration for efficient water drainage. This system is designed for modern outdoor spaces, offering a sleek and minimalist aesthetic while ensuring optimal performance in luxury poolside or patio installations.
  • QM Drain Invisible Modular Linear Drain System installed in a deck, providing seamless integration for efficient water drainage. This system is designed for modern outdoor spaces, offering a sleek and minimalist aesthetic while ensuring optimal performance in luxury poolside or patio installations.
  • QM Drain Invisible Modular Linear Drain System installed in a deck, providing seamless integration for efficient water drainage. This system is designed for modern outdoor spaces, offering a sleek and minimalist aesthetic while ensuring optimal performance in luxury poolside or patio installations.
  • QM Drain Vertical Outlet 20, featuring a stainless-steel drain with a vertical outlet connection. This drain is designed for efficient water drainage, offering seamless integration into modern shower floors and wet-room installations, while maintaining a sleek, minimalist aesthetic.
1 9

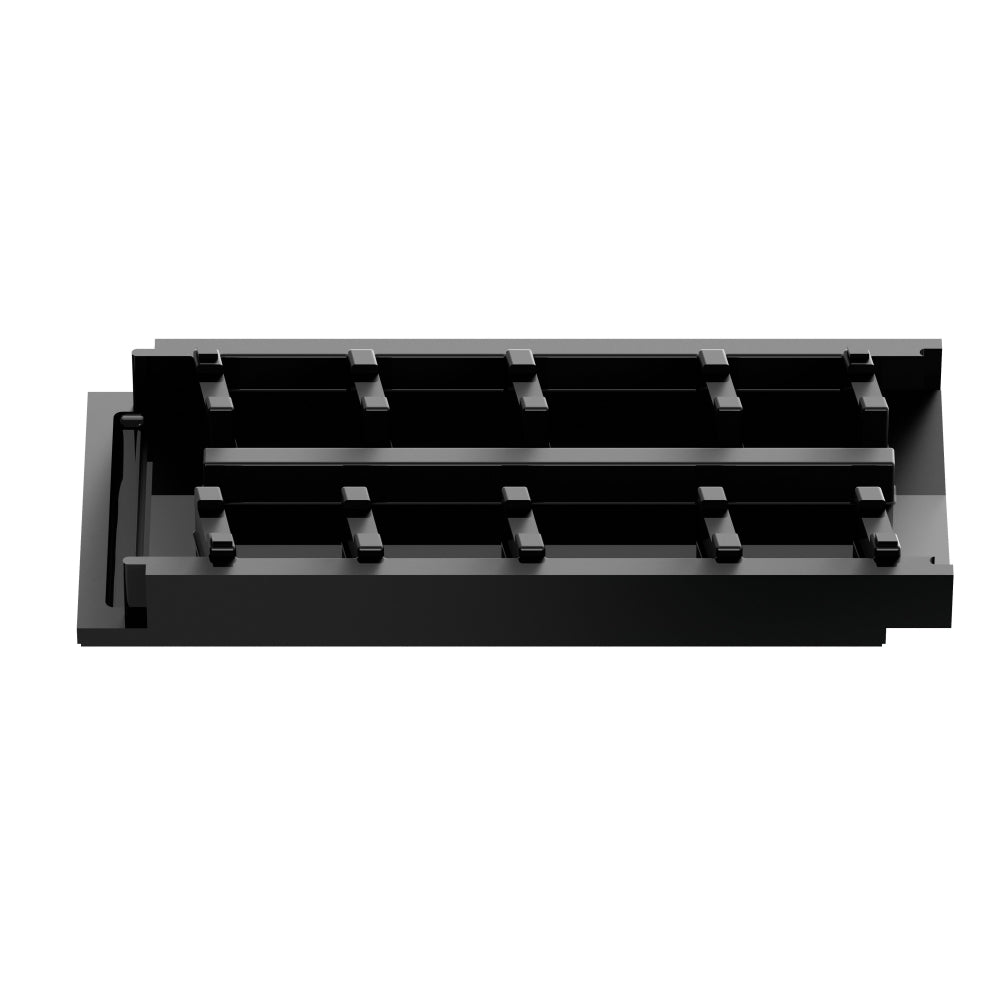

Invisible Modular Linear Drain System

Invisible Modular Linear Drain System

Customizable Hidden Drainage System

Transform your outdoor spaces with the Invisible Drain—a fully modular, build-your-own system designed to blend perfectly with tiled surfaces. Each channel connects effortlessly, letting you create the exact layout your space demands—whether it's a straight run, L-shape, or a full perimeter configuration.

This prefabricated system delivers sleek aesthetics with precision water control, making it the go-to choice for terraces, pool decks, wellness areas, and more. The modular design of the drain allows for easy installation and customization to fit any space, whether on concrete or wood surfaces and even high-traffic areas.

With its 100% watertight design, UV protection, and antibacterial/antimicrobial properties, customers can rest assured that the drain will withstand exposure to the sun, rain, snow, and other weather conditions.

Modular System components:

55.500.05.38

$760.00 USD
$760.00 USD
Sale Sold out
Shipping calculated at checkout.

FEATURES

A fully modular system designed for tiled outdoor spaces—build your layout piece by piece with interlocking channels that snap together and maintain perfect water tightness. Featuring a pre-sloped V-shaped profile, the system evacuates water quickly, avoiding stagnation and slip hazards.

Perfect for terraces, pool areas, or wellness zones, it’s constructed from high-performance polyurethane with polyurea and UV protection to withstand heavy use and outdoor conditions.

100% Watertight Design: Engineered for rapid drainage, eliminating standing water and minimizing the risk of slips.

Suitable for Both Internal and External Use: It is a versatile solution for various settings such as terraces, pools, health and wellness centers, and sports facilities

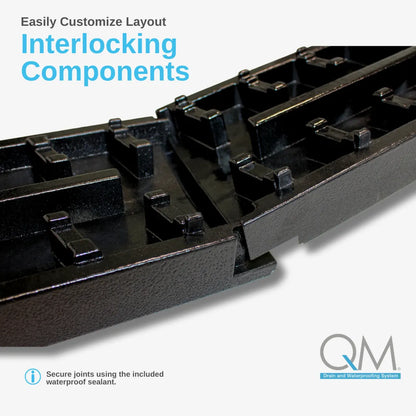

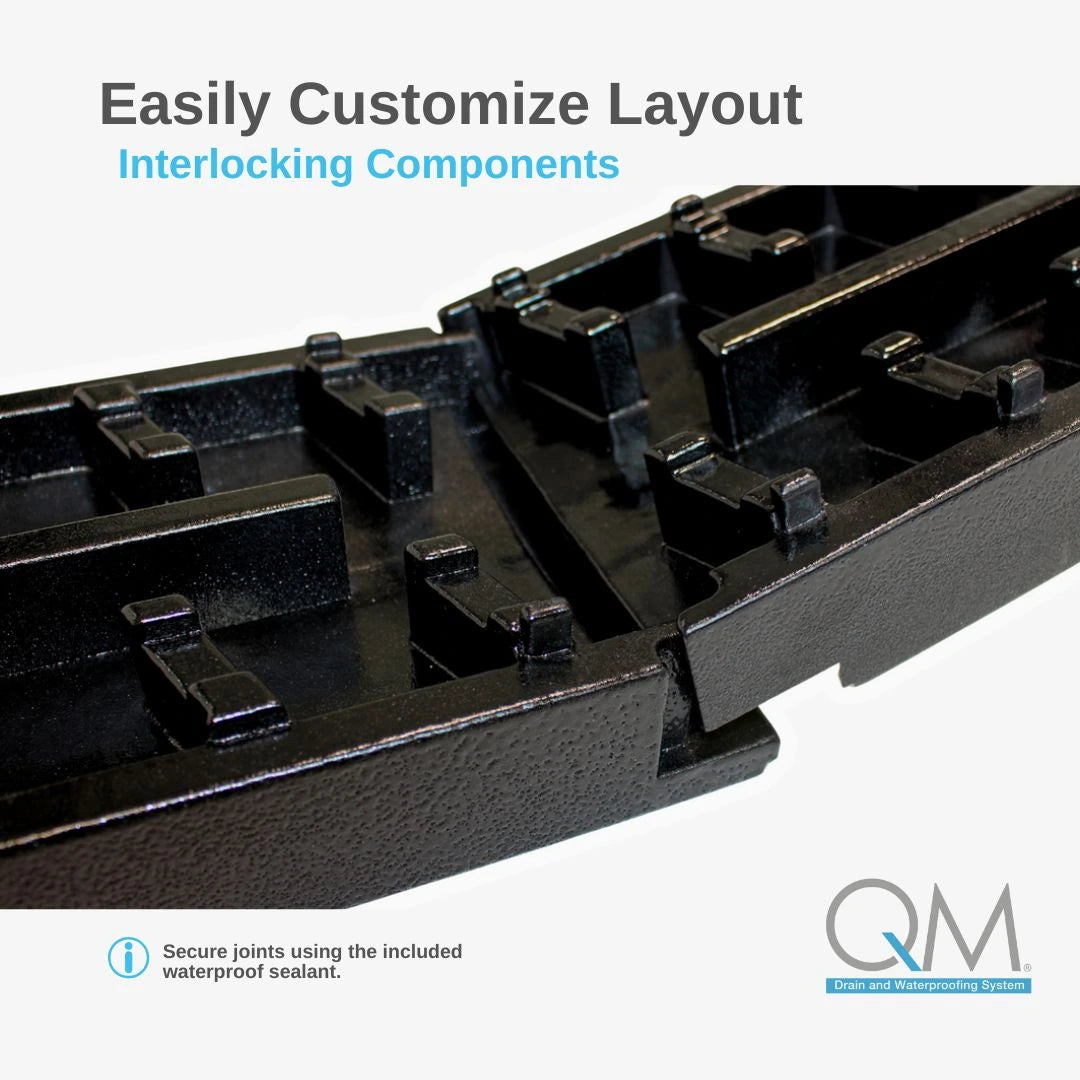

Modular and Customizable: Create your layout—straight runs, corners, or full perimeter—by connecting channels on-site with seamless joints.

Fast, Hassle-Free Installation: Prefabricated channels and easy-fit joints reduce installation time. Use our waterproof adhesive between channels to enhance sealing.

High-Performance Materials: Made from high-compression polyurethane coated with polyurea and UV protection—designed to endure outdoor conditions and heavy use.

Low-Profile, Pre-Sloped Design: V-shaped slope within the base promotes fast drainage and reduces water stagnation across the surface and in the base.

High-Performance Drainage: Handles up to 22 GPM with proper slope and 3'' outlet for maximum flow capacity.

Ultra Hygenic Design: Crafted from a high-performance polyurethane base coated with polyurea, this drain provides superior waterproofing, antibacterial, and anti-mold properties.

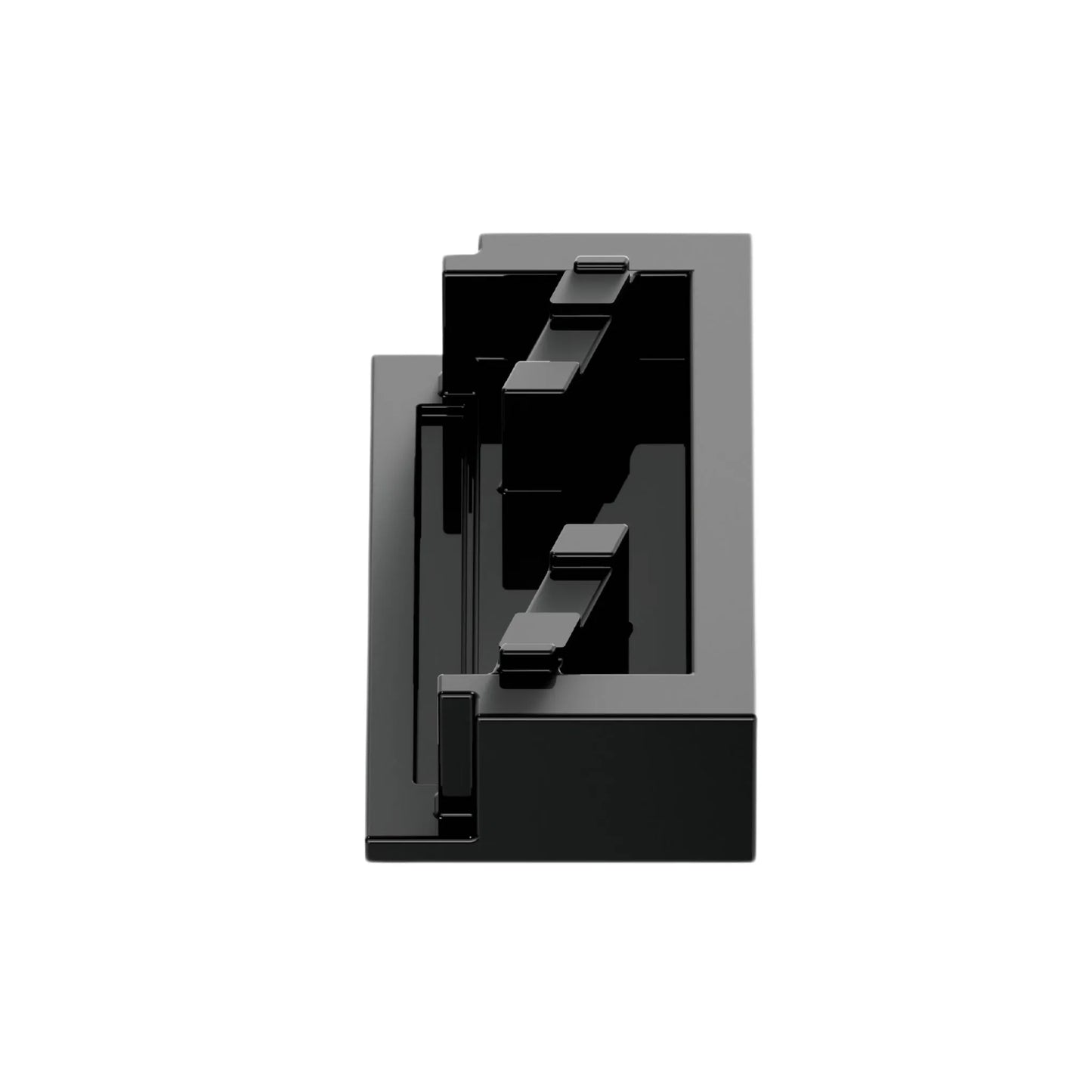

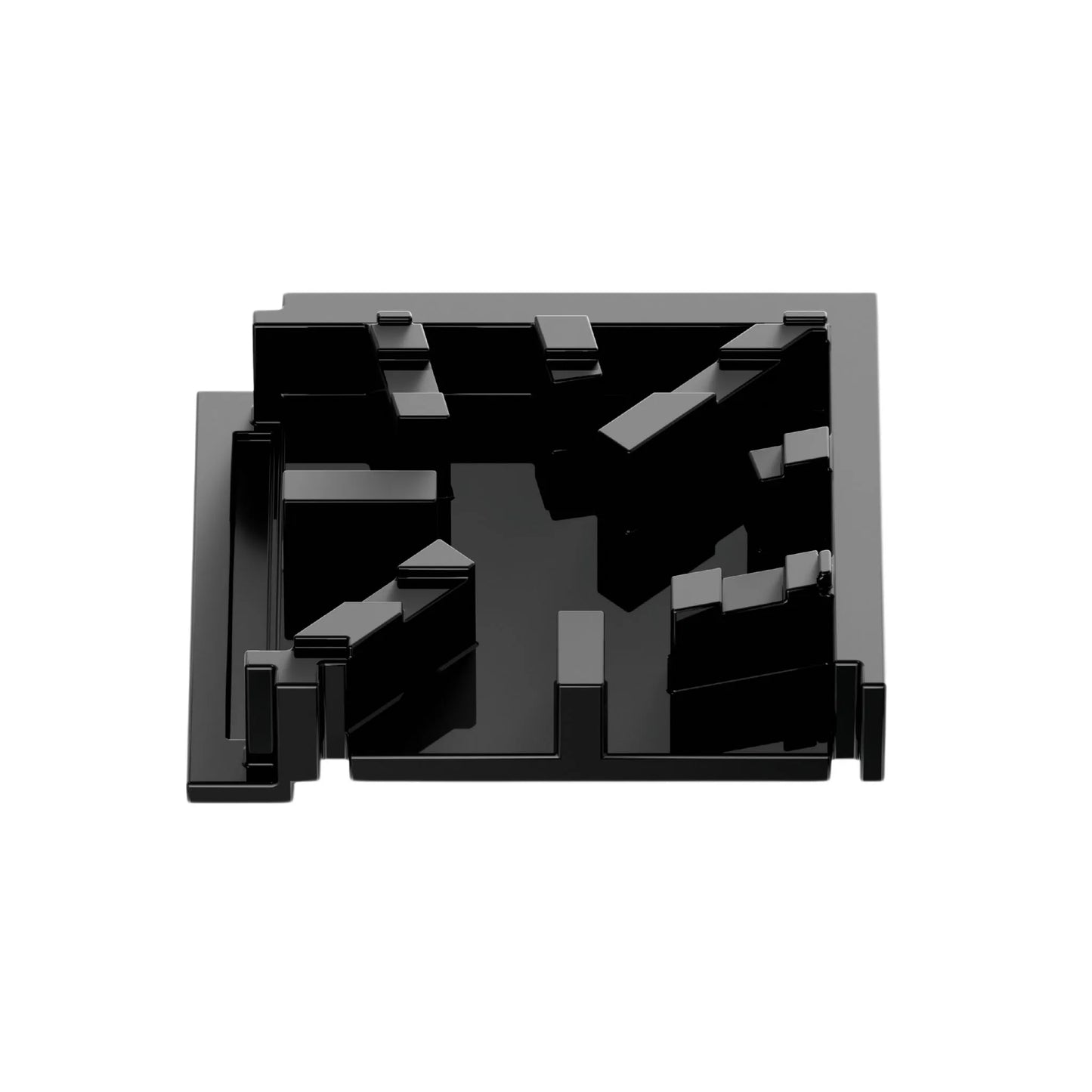

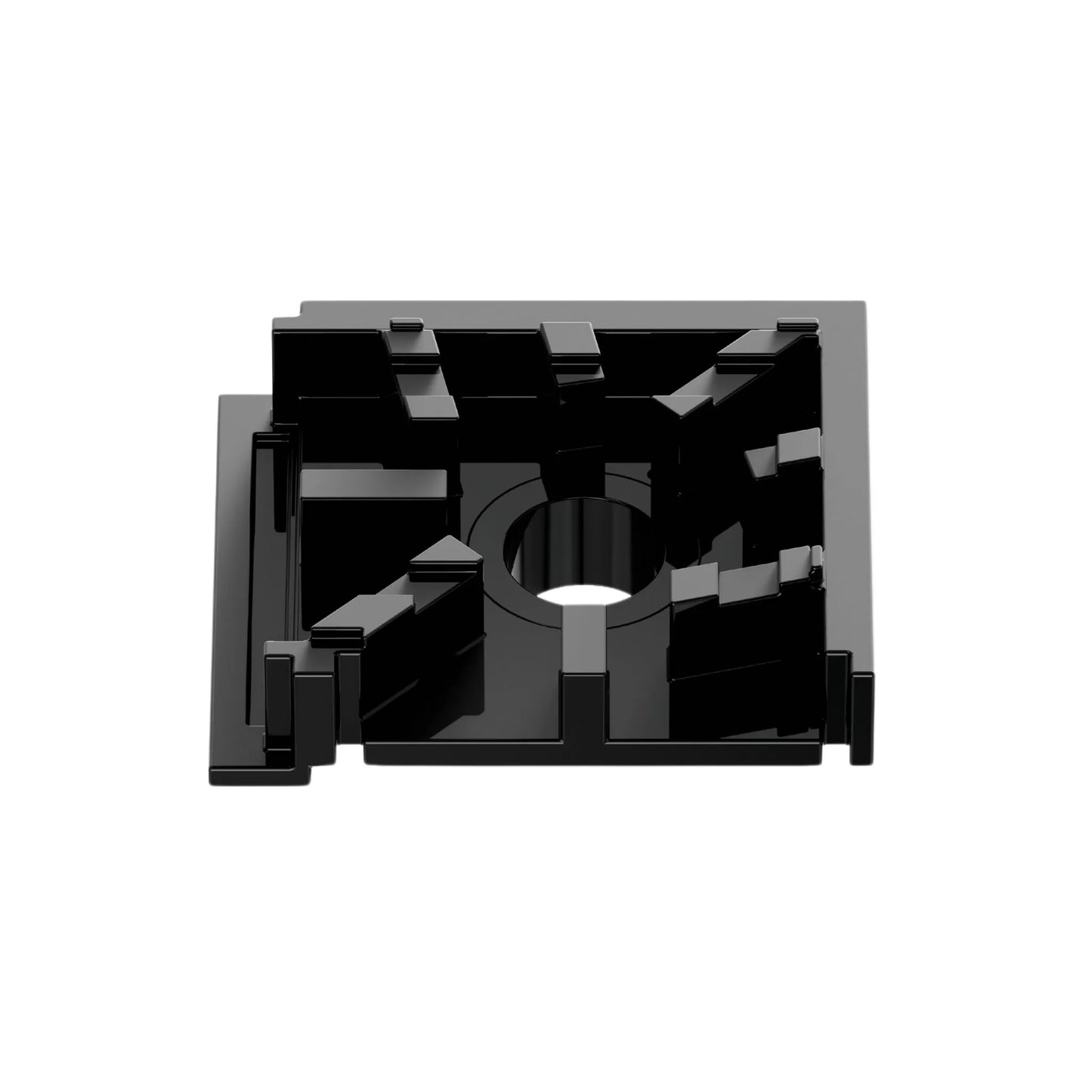

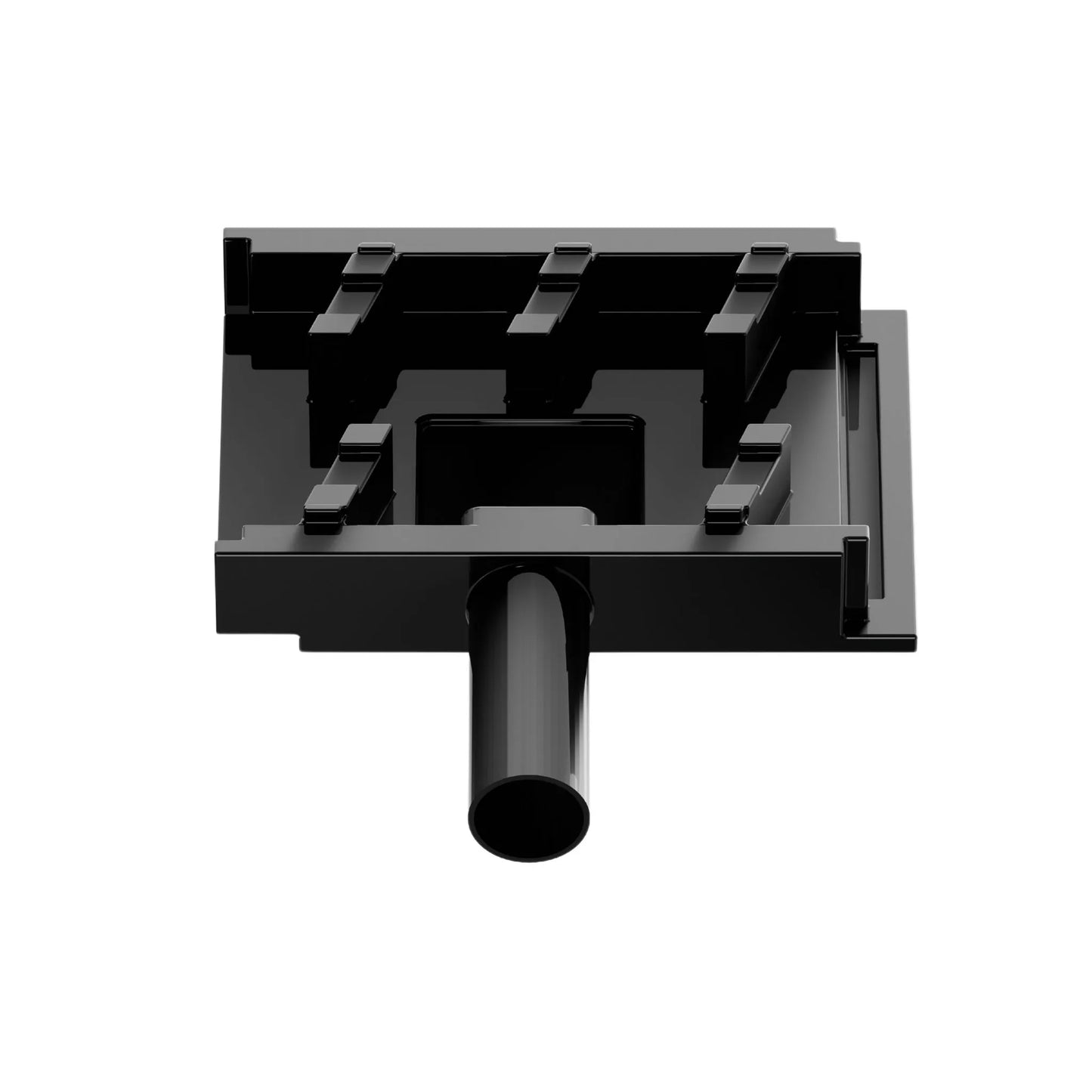

Need help with your layout? Use our interactive map to create a custom layout with channel pieces, outlets, corners, and endcaps.

SPECIFICATIONS & INSTALLATION

Click below to view and download:

Technical specifications: Invisible Modular Linear Drain

Installation Instructions: Invisible Modular Linear Drain

Video: Invisible Modular Linear Drain Installation Guidance

ARCHITECT & DESIGNER RESOURCES

3D View

Download Design Files: BIM .RFA

FAQ

How does the Invisible Modular Drain prevent mold and bacteria buildup?
The Invisible Shower Tray is designed to resist mold, mildew, and bacteria from the inside out. Made from high-density polyurethane and coated with polyurea, it won’t absorb moisture. The entire system is pre-waterproofed and thermo-sealed to prevent water from penetrating underneath or around the tray. Plus, its pre-sloped V-channel ensures fast drainage, eliminating stagnant water. With no exposed grates, grout lines, or hidden cavities where moisture and soap scum can collect, the result is a clean, hygienic, and low-maintenance drainage solution.

Can you help me design a drain system that fits my outdoor space?
Yes! We offer two easy ways to help you create the perfect layout for your space.

You can use our virtual layout tool to design your own Invisible Drain system. Just select your space’s dimensions, and the tool will automatically suggest a layout that’s as close as possible to your measurements to ensure all components fit seamlessly within the space. It will also guide you in selecting the right pieces, including channels, corners, outlets, and end caps for a complete installation.

Prefer personal assistance? Our team is happy to help with a custom layout design based on your space. Just send us your dimensions and outlet placement to info@qm-us.com, and we’ll take care of the rest.

How many outlets do I need for proper drainage?
QM recommends one outlet every 72 inches (6 feet) to ensure optimal water evacuation. For custom layouts, our team or virtual tool can help you determine the ideal number and placement of outlets based on your specific design.

What is the Invisible Modular Drain made of?
It’s constructed from high-performance polyurethane coated with polyurea, making it exceptionally durable and waterproof. With a compressive strength of 290 psi, it's so strong you could drive a car over it without causing damage! It is incredibly strong and lightweight, making it the ideal drainage system.

Is the Modular Outdoor Invisible Drain suitable for residential and commercial applications?
Yes, it's versatile enough for both residential settings like terraces and pools, as well as commercial spaces such as health and wellness centers and sports facilities.

How can I clean the Invisible Drain and can I access the outlet?
Yes. The included lifting key allows you to easily remove the tile insert and access the drain base and outlet for maintenance. Simply lift, clean, and reset the tiles—no tools or grout removal required.

What kind of maintenance is required for the Invisible Drain system?
Maintenance is minimal due to the self-cleaning design. However, we recommend occasional inspections to ensure the channels remain free of debris for optimal performance.

What are the advantages of the internal V-shaped slope?
The internal V-shaped slope allows for easy and fast water flow, effectively preventing water stagnation within the channel and ensuring efficient drainage throughout the system.
