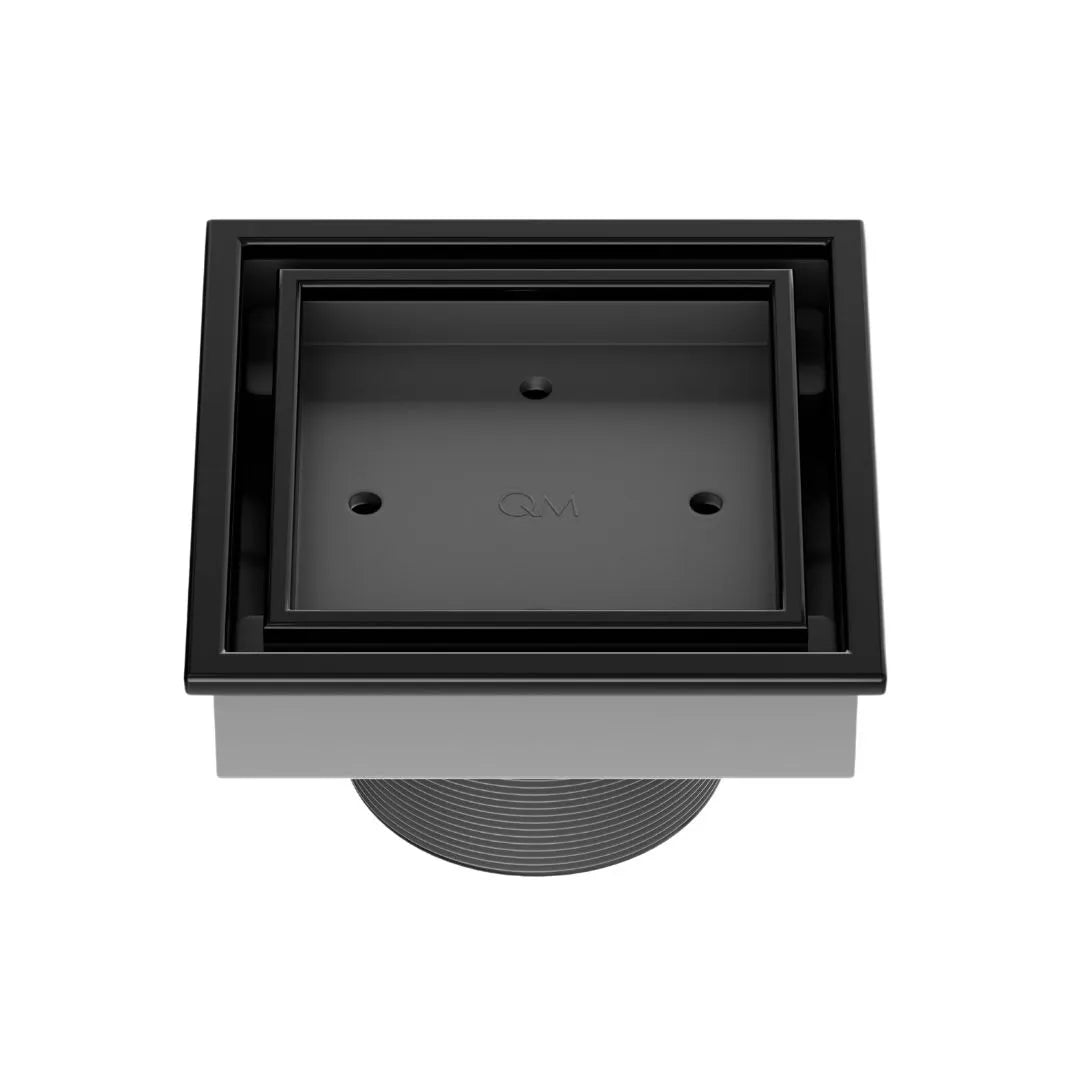

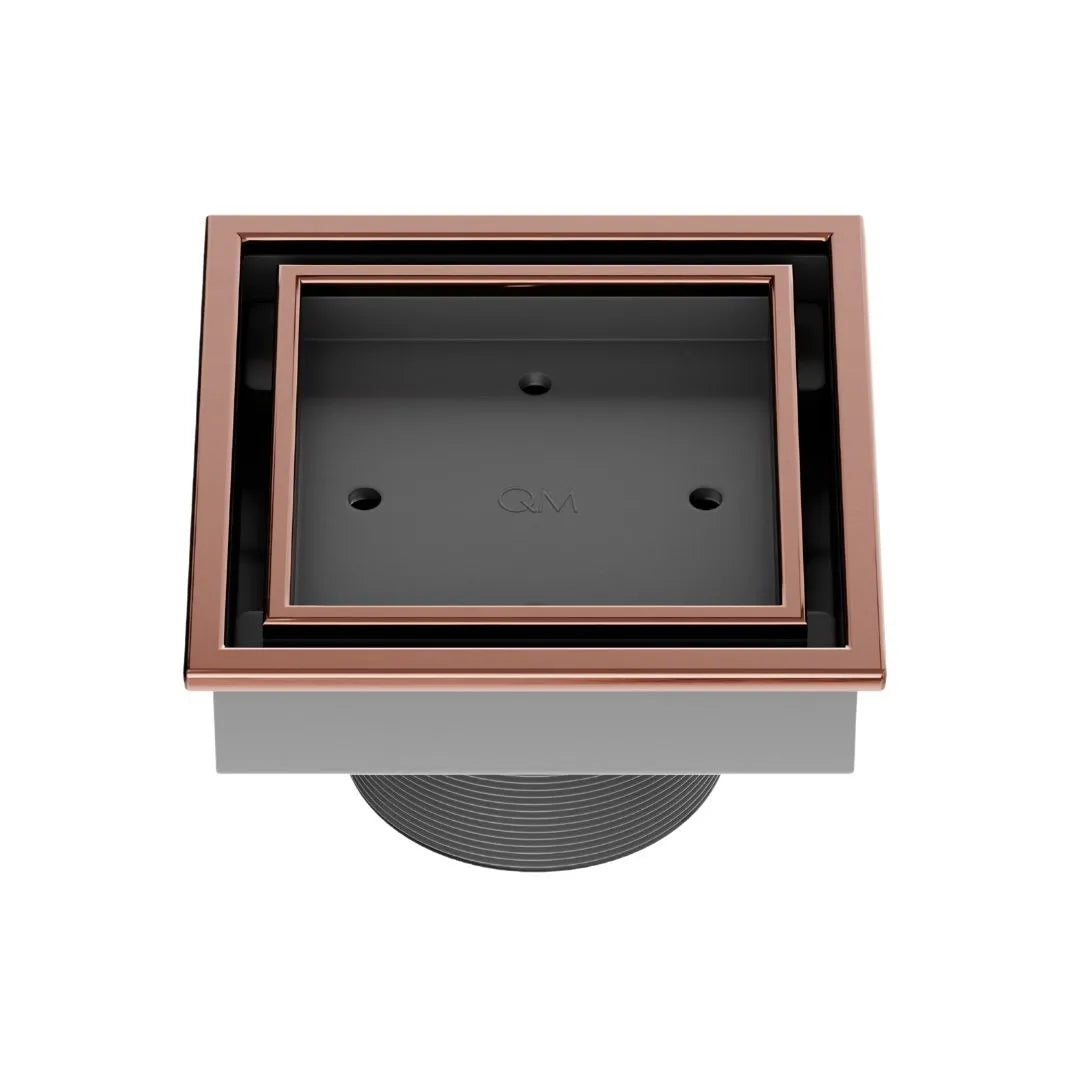

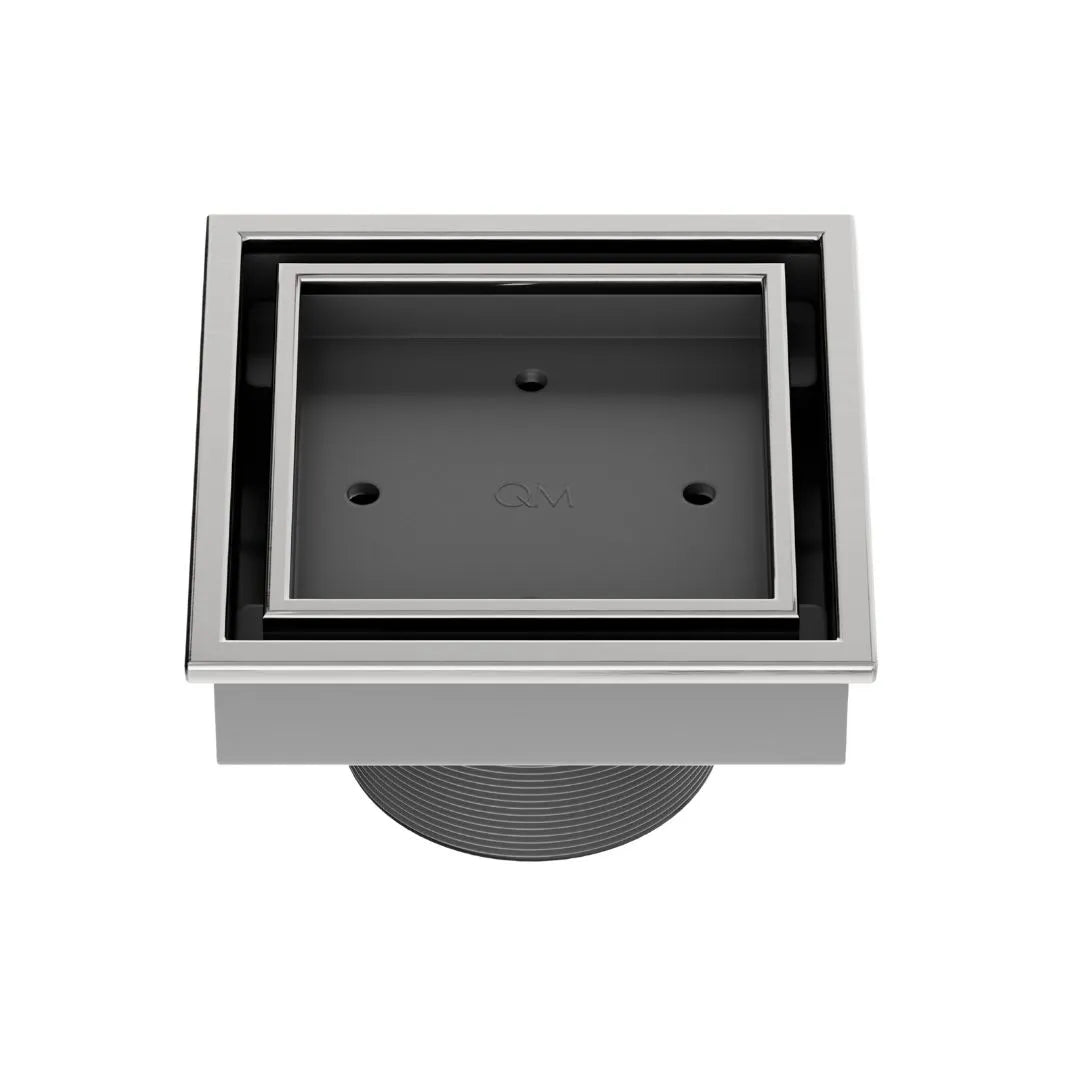

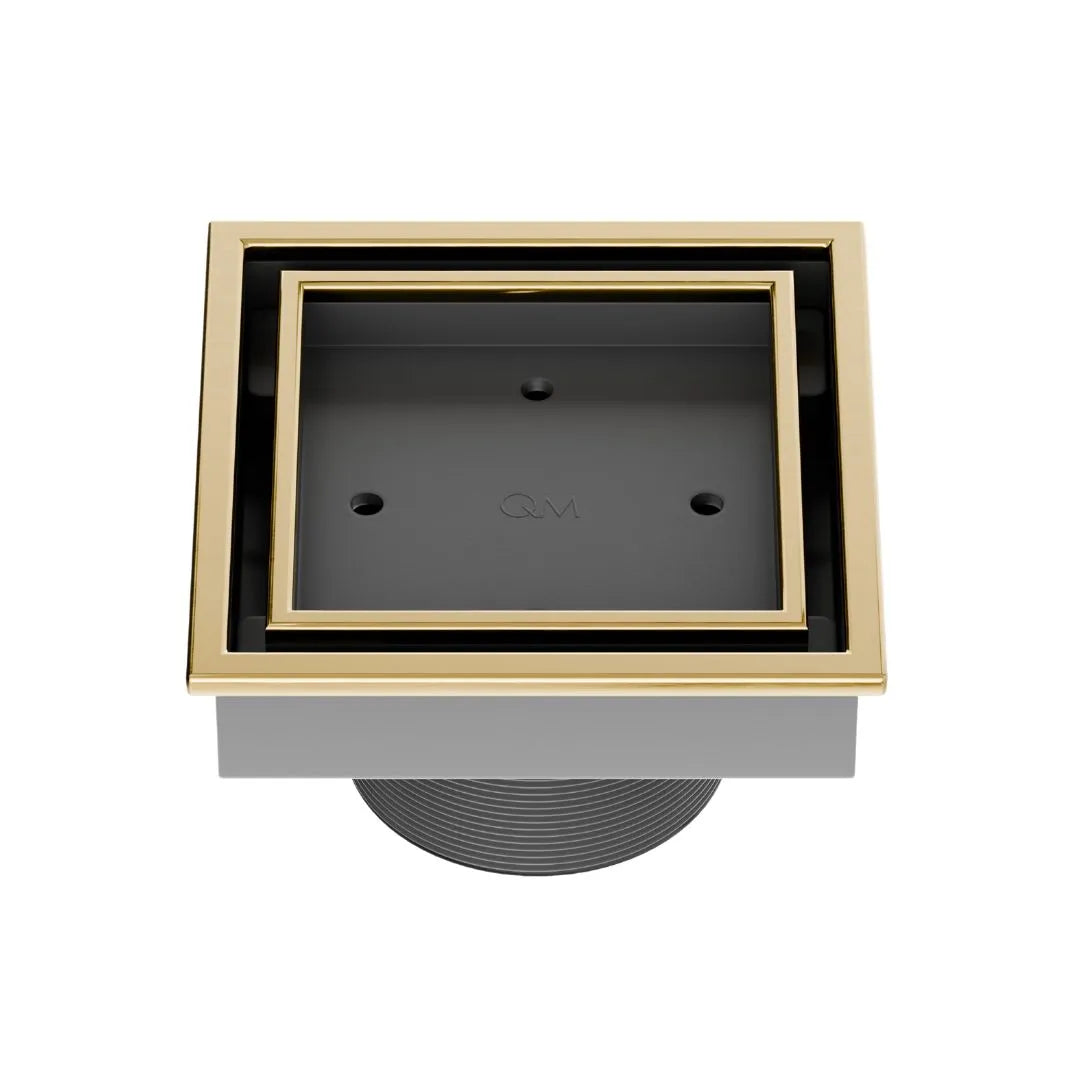

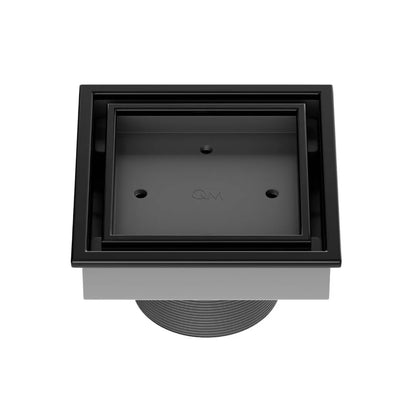

Lagos Veil (Tile-In) 4" Square Shower Drain

Veil (Tile-In) Square Drain Kit
A modern, compact solution for stylish and functional drainage in any shower space.

What’s in the kit?

• Drain Base
• Veil Square Grate
• Hair/Debris Basket Strainer
• Grate Lifting Key

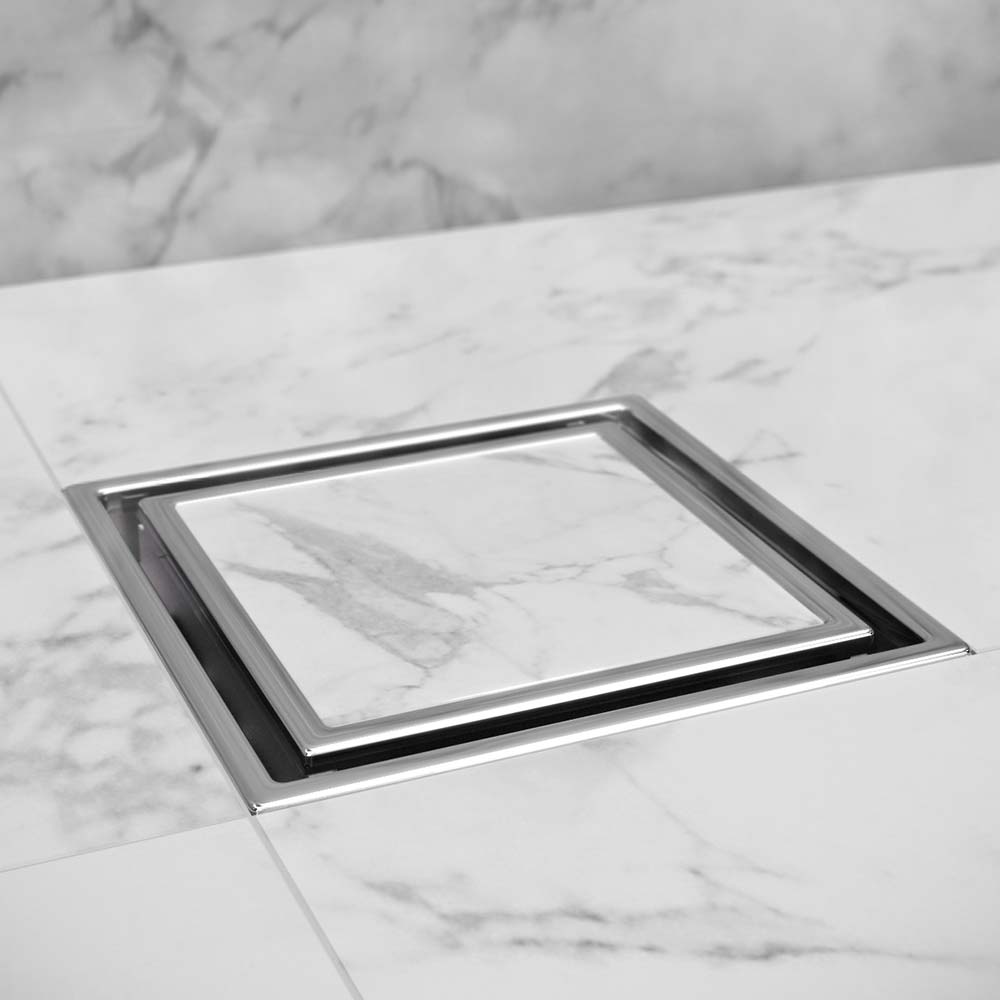

Tile Insert Grate: Accommodates any tile, stone, or flooring material up to 1/2” thick, seamlessly blending with your bathroom's design.

Versatile Applications: Works in both indoor and outdoor showers.

Premium Materials: The Veil Linear Drains boast a unique blend of premium materials, combining the elegance of stainless steel 316 for the frame with the durability of ABS plastic for the base.

Easy Cleaning: A removable grate and optional hair strainer make maintenance a breeze, effectively preventing clogs and ensuring smooth water flow.

Easy Installation Options: Our 4x4 Square Drains are compatible with three distinct installation methods to suit any job site, choose your preferred:

1. Traditional Clamp-Down Installation with a standard 2” drain base (QM Drain Flange Recommended)
2. Modern Bonded Flange System paired with our Superdry waterproofing kit
3. Prefab Pan Kit for a complete, slope-free, mortar-free solution

Need Guidance?
Access our installation guides and watch our step-by-step video to ensure a smooth installation.

Click below to view and download:

Technical specifications: Lagos Veil 4" Square Drain

Installation Instructions: Center Drain Traditional Waterproofing

Installation Instructions: Center Drain Modern Waterproofing

Video: Traditional Waterproofing Center Drain Installation

Download Design Files:

• BIM: RFA
• CAD: DWG

How Can I Install 4” and 5 3/4" Square Drains?

Our square drains come in two sizes, each with its own set of compatible installation methods to accommodate various project requirements

For 4” Square Drains:

• Traditional Waterproofing Method:Use a clamp-down drain base designed to pair with our square drains for a secure installation. Suitable for traditional PVC or CPE liner and mortar bed installations, this method is a reliable choice for classic waterproofing approaches.
• Modern Waterproofing Solution with the QM Waterproofing Kit: The QM Bonded Flange for a watertight connection, 32 sq. ft of Superdry Waterproofing Membrane for superior moisture protection, QM Sealant for securing all seams against leaks. Opt for this modern waterproofing solution for an efficient and robust system designed to meet contemporary construction standards.
• Shower Pans or Shower Trays for a Hassle-Free Installation: QM Shower Pan simplifies installation by eliminating the need for a traditional mortar bed and complex waterproofing steps. This all-in-one kit is ideal for quick and straightforward installations, offering convenience without sacrificing quality.

For 5 3/4" Square Drains:

• Traditional Waterproofing Method: The 5 3/4" square drains are designed for installation using the traditional waterproofing method with a clamp-down drain base. This classic approach involves a PVC or CPE liner and a pre-sloped mortar bed, providing a tried-and-true solution for reliable waterproofing. Note that the modern waterproofing kit and shower pan options are not available for the 5 3/4" size, making the traditional method the go-to choice for these larger drains.
