Prefab Shower Pan Kit with Lotus Square Drain

Pre-Sloped, Pre-Waterproofed, 140 PSI Strength, and QM Square Drain – "The Ultimate Shower Solution".

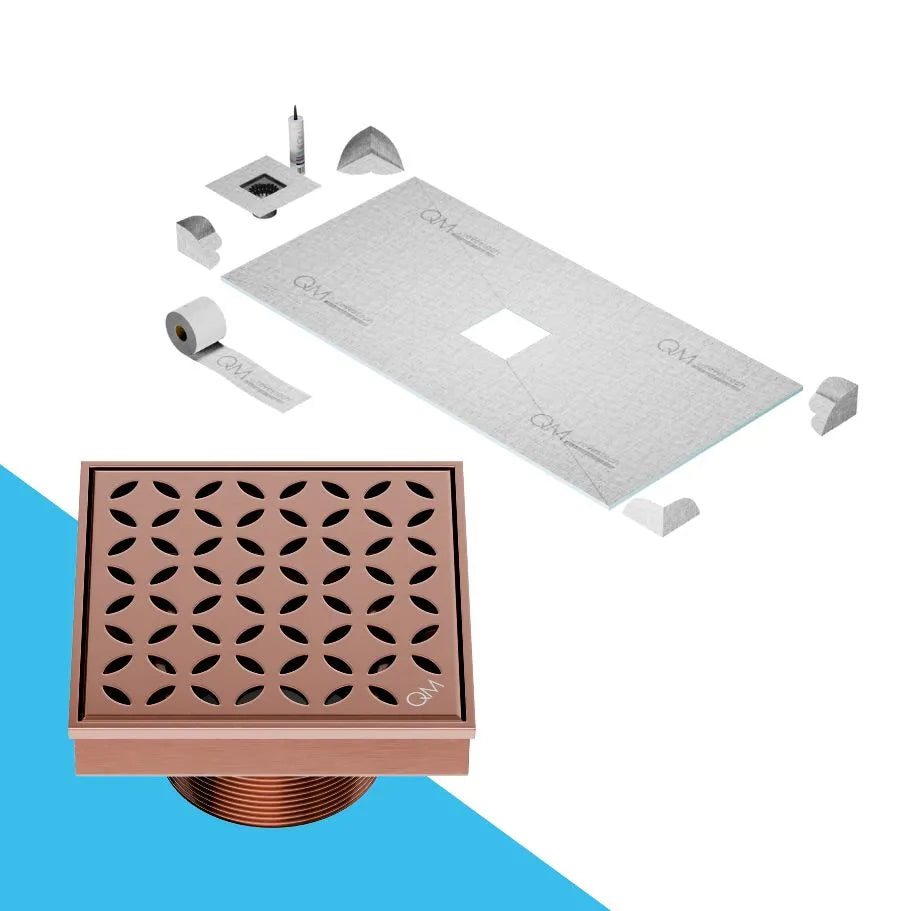

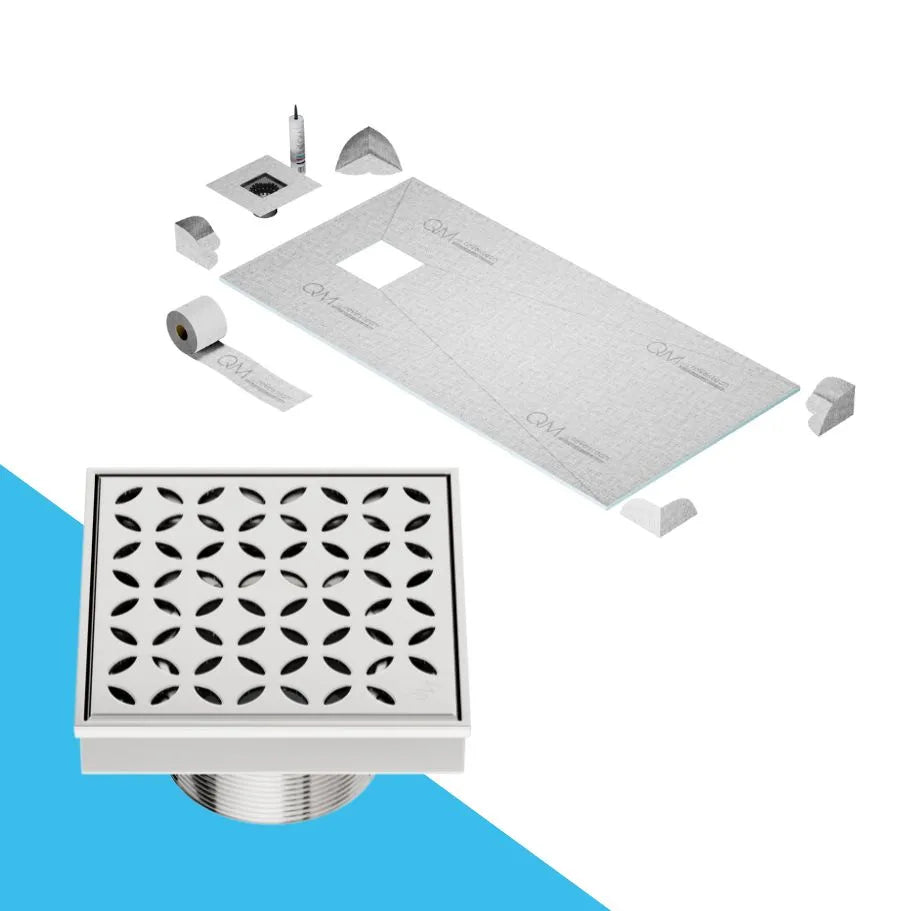

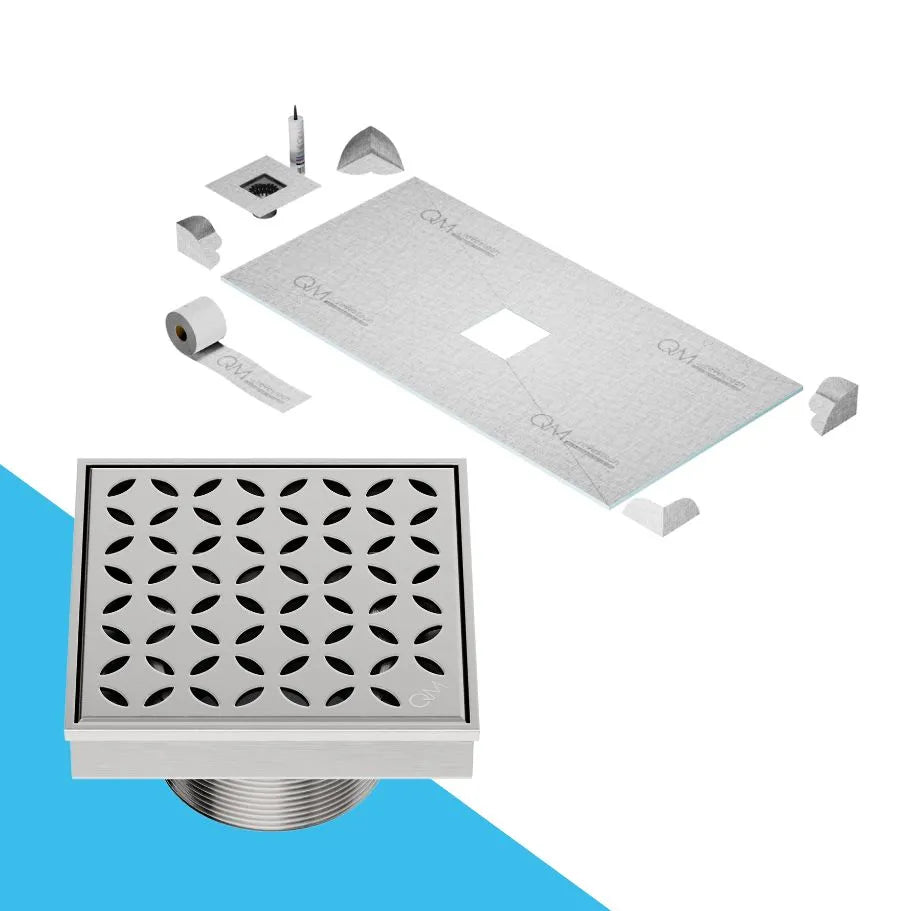

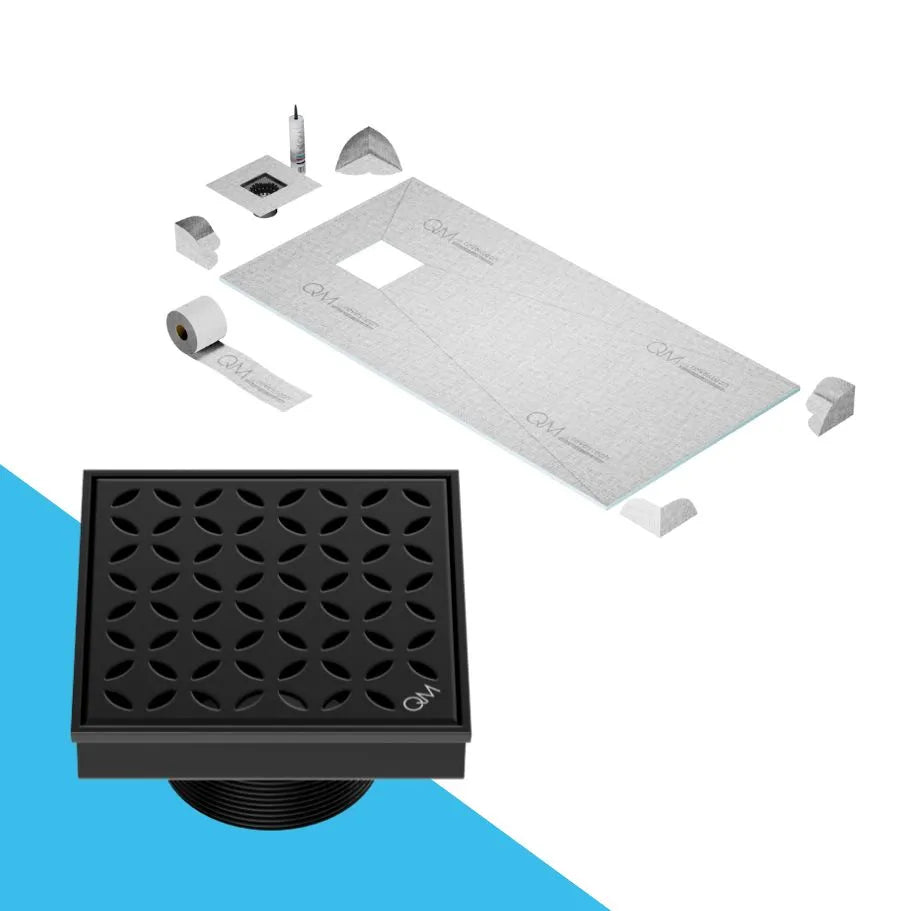

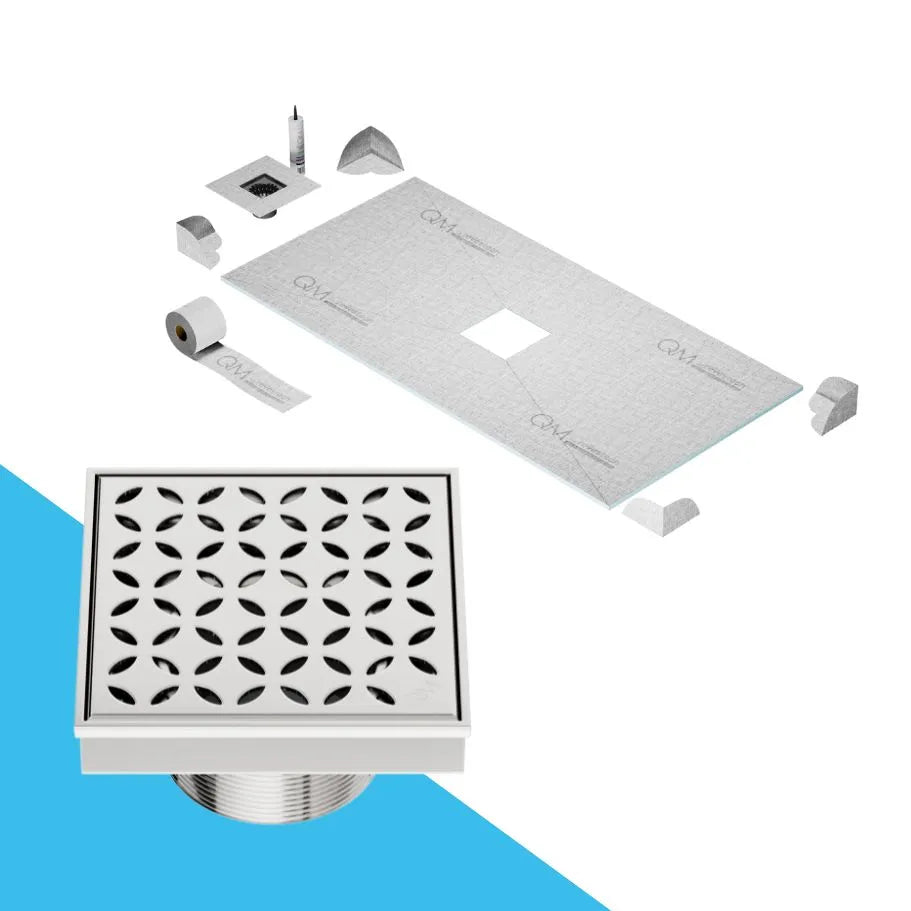

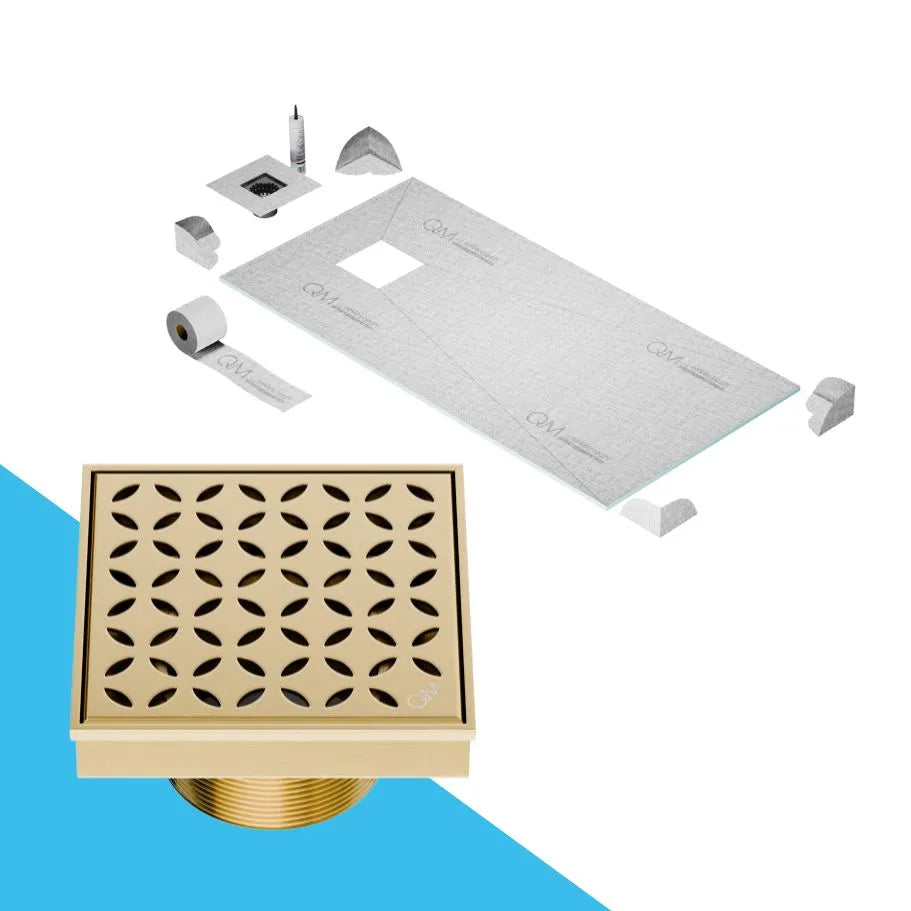

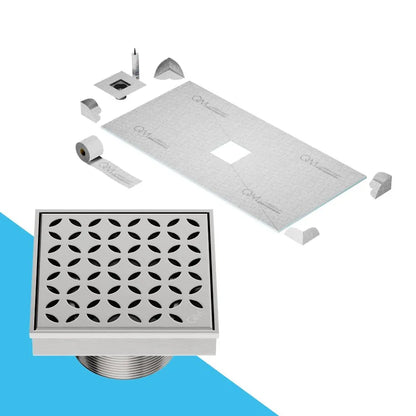

All-Inclusive Installation Kit:
• Pre-sealed waterproof shower pan (pre-sloped)
• Delmar Lotus 4" Square Drain
• Waterproof bands, inside and outside corners

Note: When a curbless shower is the desired design, we advise adding our Bracket Kit to recess the wood subfloor for a perfect and easy curbless installation.

Superior Compressive Strength:
Engineered for versatility with 140 psi compressive strength, our shower pans support various floor materials, from tiles to stones, ensuring unmatched stability and durability.

Advanced Waterproofing:
The Superdry waterproofing membrane is pre-sealed to both the shower pan and drain flange, providing a flawless, watertight barrier. Extend the Superdry membrane to walls and floors for added moisture protection and a mold-free environment.

Adaptable Sizing:
Easily customize our shower trays on-site by trimming or expanding with dry-pack mortar to fit your exact shower space.

Eco-Friendly and Recyclable:
Made from 100% Post-Consumer Recycled PET, our shower pans are both sustainable and durable. The Superdry membrane is also recyclable, reinforcing our commitment to eco-friendly practices.

Indoor/Outdoor Use:
Our pre-sloped shower pans are designed for both indoor and outdoor installations, offering flexibility for any project.

Quick Specs
Dimensions: Length: 63" | Width: 32" (Cut-to-fit)

Resources (PDFS & Videos)

Click below to view and download:

• SPEC Sheet (PDF) Prefab Shower Pan with Lotus Square Drain

Download the drain specs PDF with dimensions, materials, SKU numbers, and performance data.

• Installation Guide (PDF) Prefab Shower Floor W/ Square Drain

A complete installation guide covering tools, preparation, and waterproofing.

• Installation Guide (VIDEO) Prefab Shower Floor W/ Square Drain

Watch the full video tutorial showing the installation process from start to finish.

Download Design Files: BIM .RFA

Prefab Shower:

• Center
• Off-Center

What is a prefabricated shower pan kit?

A prefabricated shower pan kit is a ready-to-install shower base that comes pre-sloped and pre-waterproofed. It eliminates the need for building a mortar bed, making installation faster and more consistent.

Can I cut the shower pan to fit my bathroom?

Yes, our shower pans can be trimmed to size to suit the specific dimensions of your bathroom. This allows for a custom fit in any shower space, whether it’s a new build or a renovation project.

Can this prefabricated shower pan be installed on wood or concrete subfloors?

Yes. This shower pan can be installed on both wood and concrete subfloors.

The subfloor should be clean, level, and properly prepared before installation to ensure a stable, long-lasting result.

What type of tile can be used with this shower pan?

This shower pan supports all tile types, including large-format tile, standard tile, and small mosaics.

Does the kit include everything needed for installation?

Yes. The kit includes the pre-sloped shower pan, waterproofing membrane, drain support, bands, corners, and square drain components.

Does the system help prevent cracks or tile failure?

Yes. The included waterproofing membrane also provides uncoupling, which helps reduce stress between the substrate and tile to prevent cracking.

Do I need to recess the floor for a curbless shower?

For a flush finish, a curbless (zero-entry) shower may require the subfloor to be lowered, depending on the build.

This pre-fab shower pan has a low profile (0.63" height), which helps reduce how much recessing is needed. If recessing is required, you can use a recess bracket kit to lower the subfloor without cutting or modifying joists.

Do I need to buy anything else besides this kit?

Nope, the kit includes all components needed to install the shower pan, connect the drain to plumbing, and seal seams and corners for a watertight system.

For full waterproofing, you may add Superdry waterproofing membrane to the shower walls and the surrounding bathroom floor.

How does this compare to other shower pan systems?

Our pans are built to make installs efficient, easy, and reliable.

• Pre-sloped + pre-waterproofed: No mortar bed or separate waterproofing steps required
• Ultra-strong (140 PSI): More resistant to jobsite damage and load stress
• Flexible layout options: Cut-to-fit pans and adjustable drain placement for custom or off-center plumbing
• All-in-one kit: Includes pan, drain, and waterproofing components in one system
• Limited lifetime warranty: Built for long-term performance

Is this shower pan environmentally friendly?

Yes. The shower pan is made from 100% post-consumer recycled PET, supporting eco-conscious building practices.
