Couture Mist (Tile-In) Adjustable Lagos Linear Drain - 2" outlet

What’s in the kit?

• 2'' Outlet Section
• PVC Channel Section
• Mist Tile-in Linear Grate
• 316SS Trims
• Sealant
• Leveling Legs
• SS Threaded Nipple Adaptor
• Grate Lifting Key
• Cutting Blade for grinder

Key Features

Slim 1.5" Linear Drain Design
The Couture Series features a narrow profile that blends into the tile floor while maintaining strong drainage performance.

Adjustable Length System
Drain sections can be cut or connected on-site, allowing the drain to match the exact length needed for the shower.

Flexible Outlet Placement
The 2" outlet can be positioned exactly where needed, whether centered or off-center, helping installers work around existing plumbing.

Lagos Series Construction
Made with 316 stainless steel trims and grate paired with a durable PVC base for strength and corrosion resistance.

Designed for Modern Shower Projects
Works well in curbless showers, wet rooms, and custom tile installations in residential and commercial bathrooms.

Easy to Clean.

Removable grate allows for easy access and quick maintenance. (Refer to cleaning instructions for details.)

Simple Installation

Compatible with standard waterproofing methods. For comprehensive installation guidance, consult our detailed installation instructions and installation video.

Finishes Available

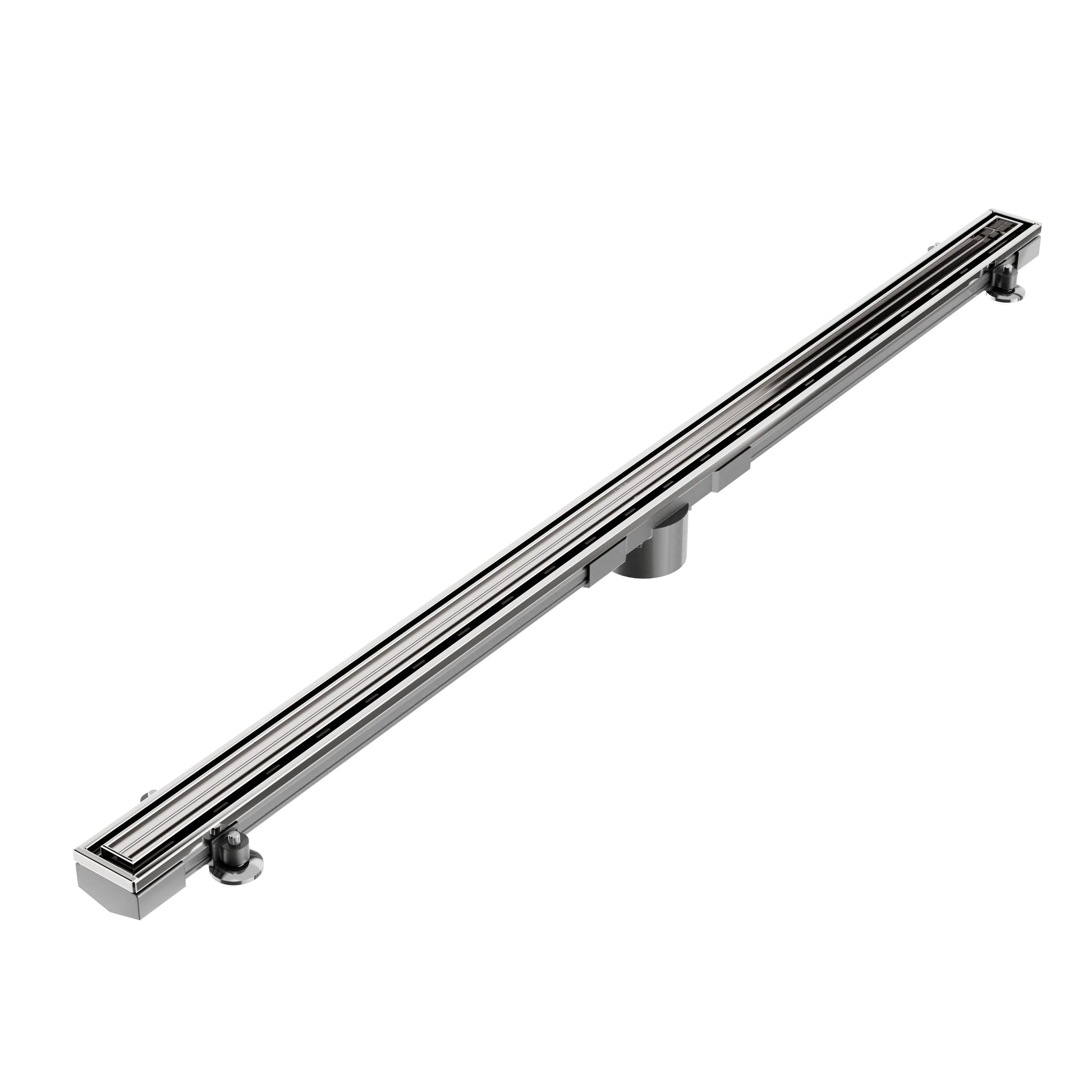

• ST – Satin Stainless
• PS – Polished Stainless

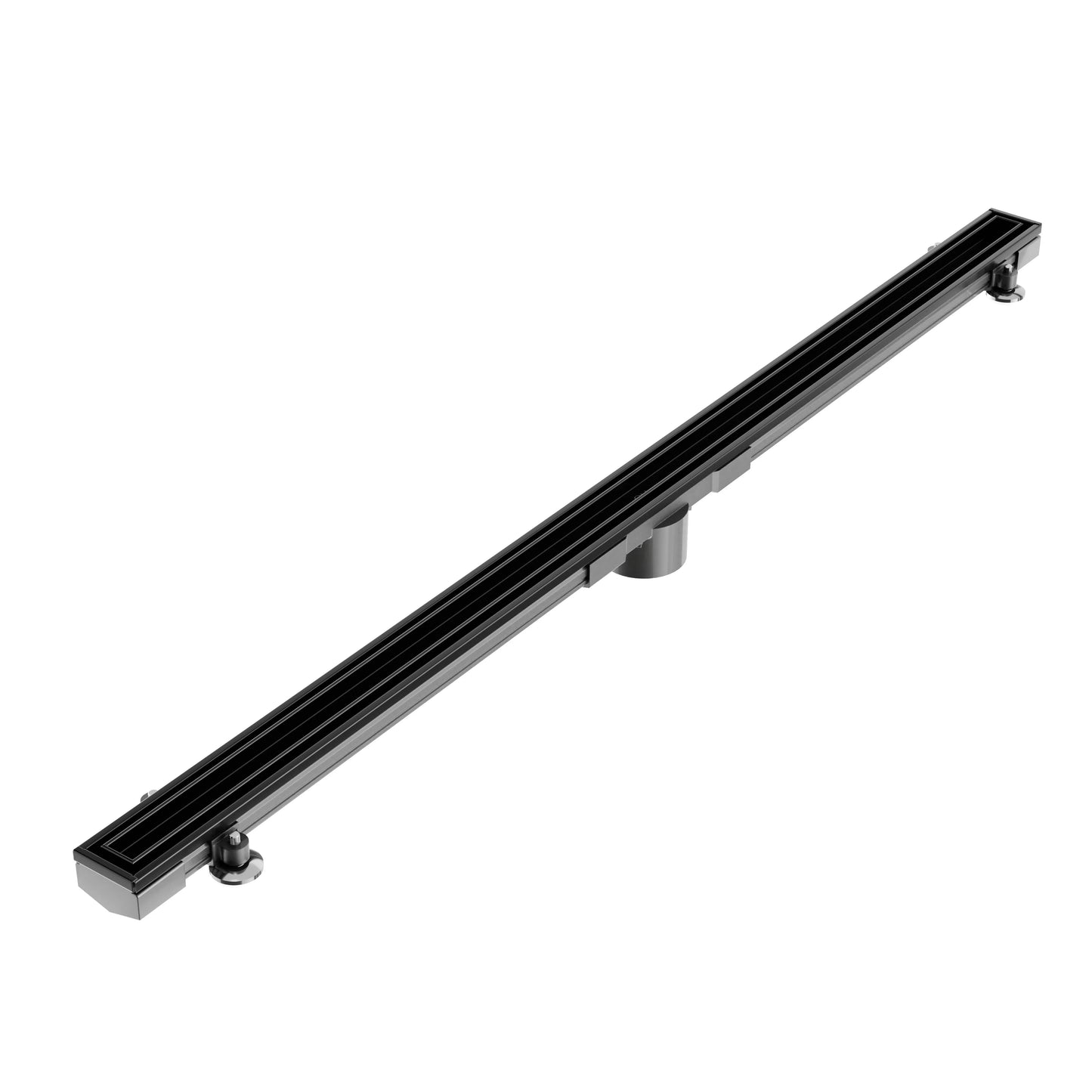

• BK – Matte Black

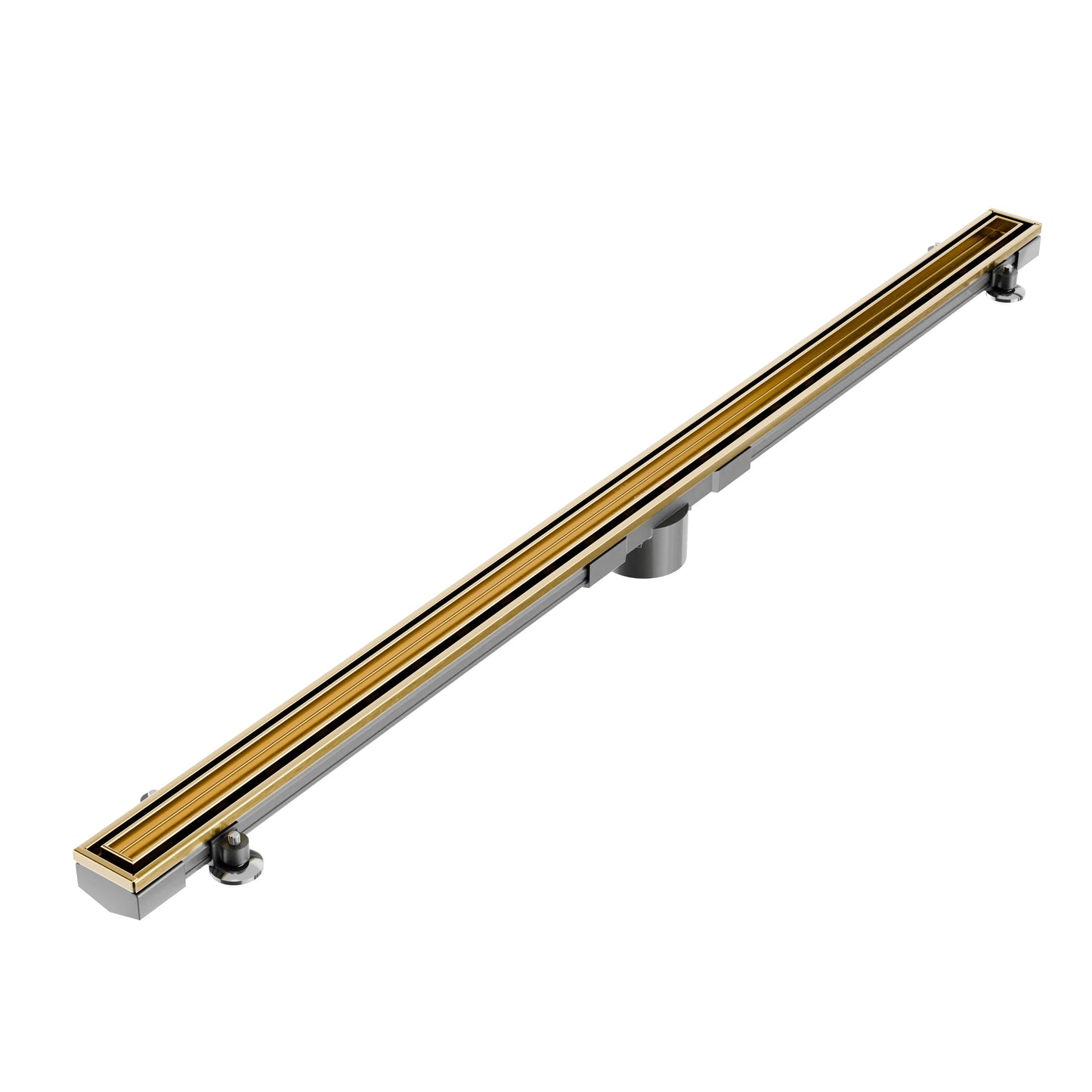

• GD – Satin Gold
• BZ – Satin Bronze
• CH - Champagne
• LG - Luxe Gray

Sizes Available: 36'', 48'',60'',72'',96''

• Choose the kit with equal or greater size than the desired length; for longer length drains, connect kits to build the desired length.

Drain Dimensions

• Width: 1.5" Height: 1" (low profile)

Need help installing?

Check our installation guide and video for step-by-step instructions.

Quick Specs
Dimensions: Width: 1.5" (Slim) | Height: 1" (low profile)

Resources (PDFS & Videos)

Click below to view and download:

• Lagos Adjustable Mist Couture Specifications

Download the drain specs PDF with dimensions, materials, SKU numbers, and performance data.

• Lagos Adjustable Linear Drain Installation Guide (PDF)

A complete installation guide covering tools, preparation, and waterproofing.

• Lagos Adjustable Linear Drain Installation Video

Watch the full video tutorial showing the installation process from start to finish.

Download Design Files:

• BIM: RFA

What makes the Couture Lagos different from the standard Lagos linear drain?

The Couture Linear Drain is 1.5" wide, while the standard Lagos Adjustable is 3.25'' wide. It offers a more minimal, sleek aesthetic with the same flexibility as the standard Lagos Adjustable Linear Drain.

What Is an Adjustable Linear Drain?

An adjustable linear drain is a shower drain that can be cut to size and repositioned on-site, allowing flexible installation in custom or non-standard showers.

Why should I choose an Adjustable Linear Drain for my shower?

They’re ideal for:

• Non-standard shower sizes (custom fit)
• Misaligned plumbing (no expensive rework)
• Custom design layouts (flexible placement)

Can I move the outlet if my plumbing isn't centered?

Yes. The 2" outlet section can be placed anywhere along the channel — center or off-center — to align with your existing rough-in. No plumbing relocation needed.

What's the flow rate of the Couture Linear Drain?

Each 2" outlet handles up to 6 GPM with proper floor slope. For larger showers or multi-valve setups, add a second outlet along the channel run to increase capacity.

Can this be used in a commercial project?

Yes. The 316 marine-grade stainless steel finish and heavy-duty PVC body make it appropriate for hotel bathrooms, spa facilities, and high-traffic wet rooms.

Are Adjustable Linear Drains ADA-compliant?

They can be used in ADA showers, but compliance depends on slope, threshold, and layout. Consult with a professional to ensure your shower meets ADA requirements and codes.

What Is the QM Drain Lagos Series?

The QM Drain Lagos Series is a collection of modern shower drains featuring a strong pre-sloped PVC channel and 316 stainless steel grate. Its smart snap-in assembly allows installers to adjust drain length and outlet position on site, making it one of the most versatile and easy-to-install linear drain systems available.

How do you maintain an Adjustable Linear Drain?

Simply lift the grate and clean the channel regularly to remove hair or debris.

Is there a warranty on QM Drains?

Yes. QM Drains are backed by a Limited Lifetime Warranty for the original purchaser when bought through authorized sellers or our website. Certain finishes (Polished, Luxe Gray, Champagne, Bronze, Black, and Gold) carry a 3-year warranty. See warranty page for more details: https://qmdrain.com/pages/warranty-qmdrain
