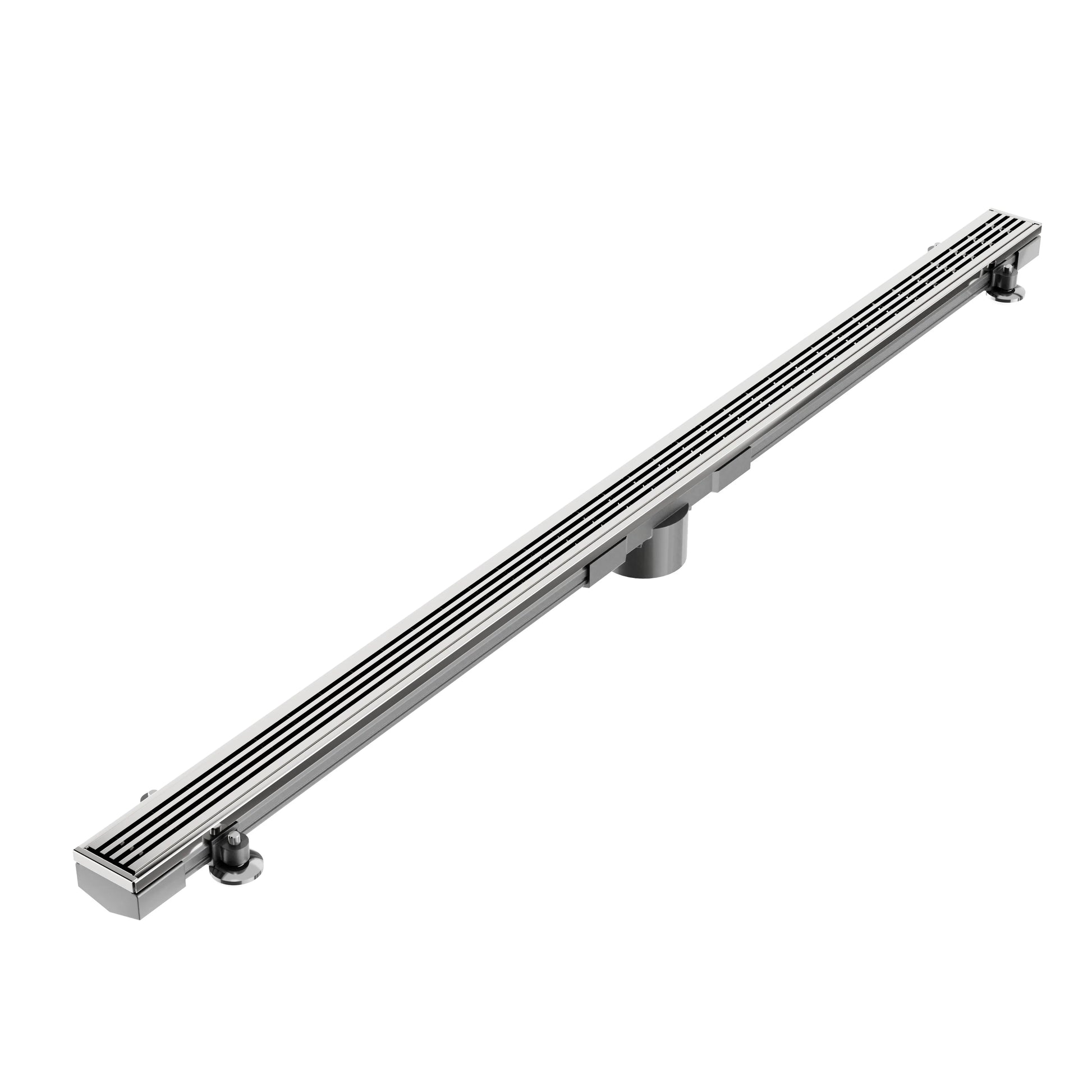

  • The Wedgewire Couture Lagos adjustable linear drain in a classic Satin finish. Made from marine-grade 316 stainless steel, this model comes in lengths of 36, 48, 60, 72, and 96 inches, offering a timeless, fingerprint-resistant look for any shower.

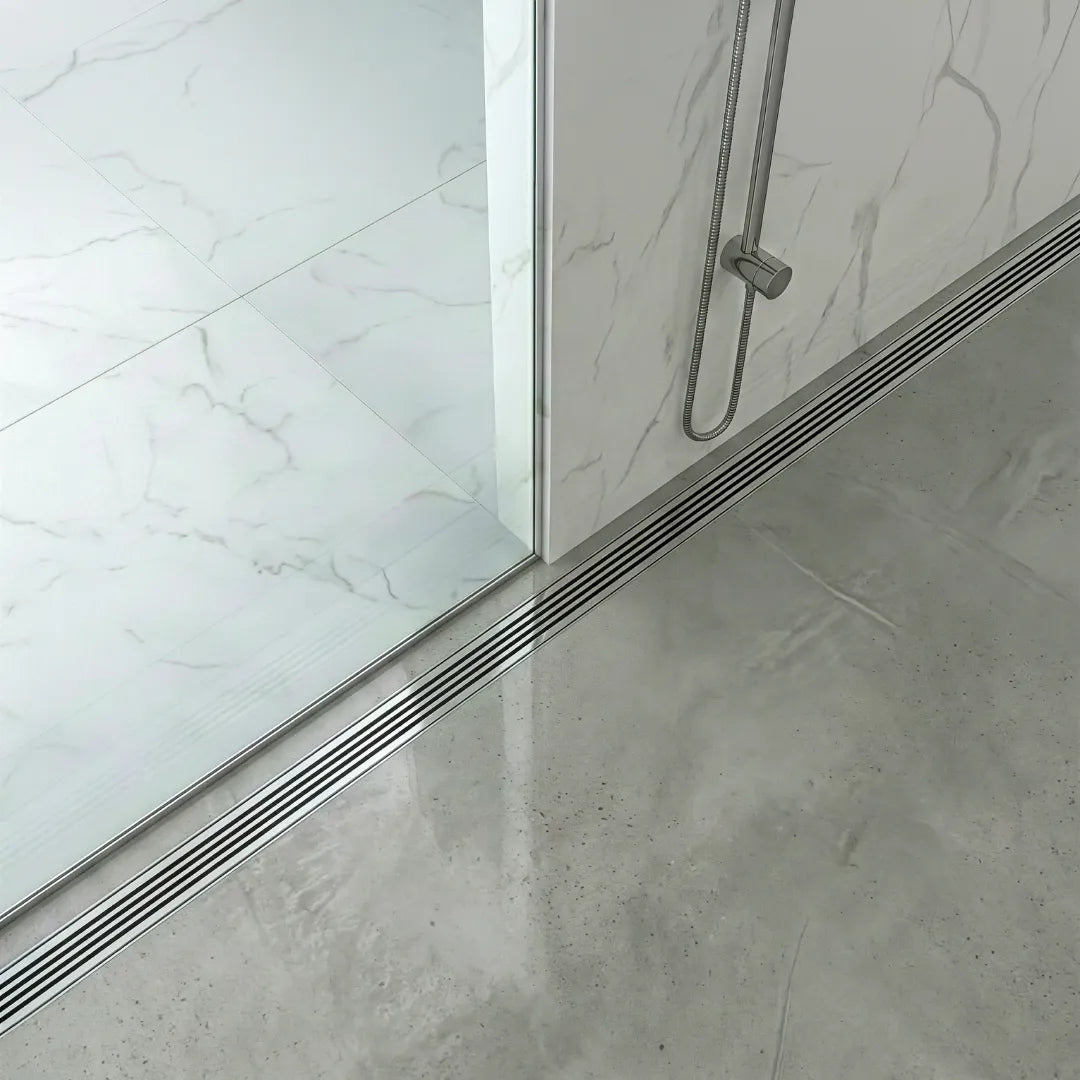

  • A high-end walk-in shower showcasing the Wedgewire Couture Lagos adjustable linear drain by QM Drain. Its sleek wall-to-wall design and marine-grade stainless steel construction provide a professional drainage solution for modern luxury bathrooms.

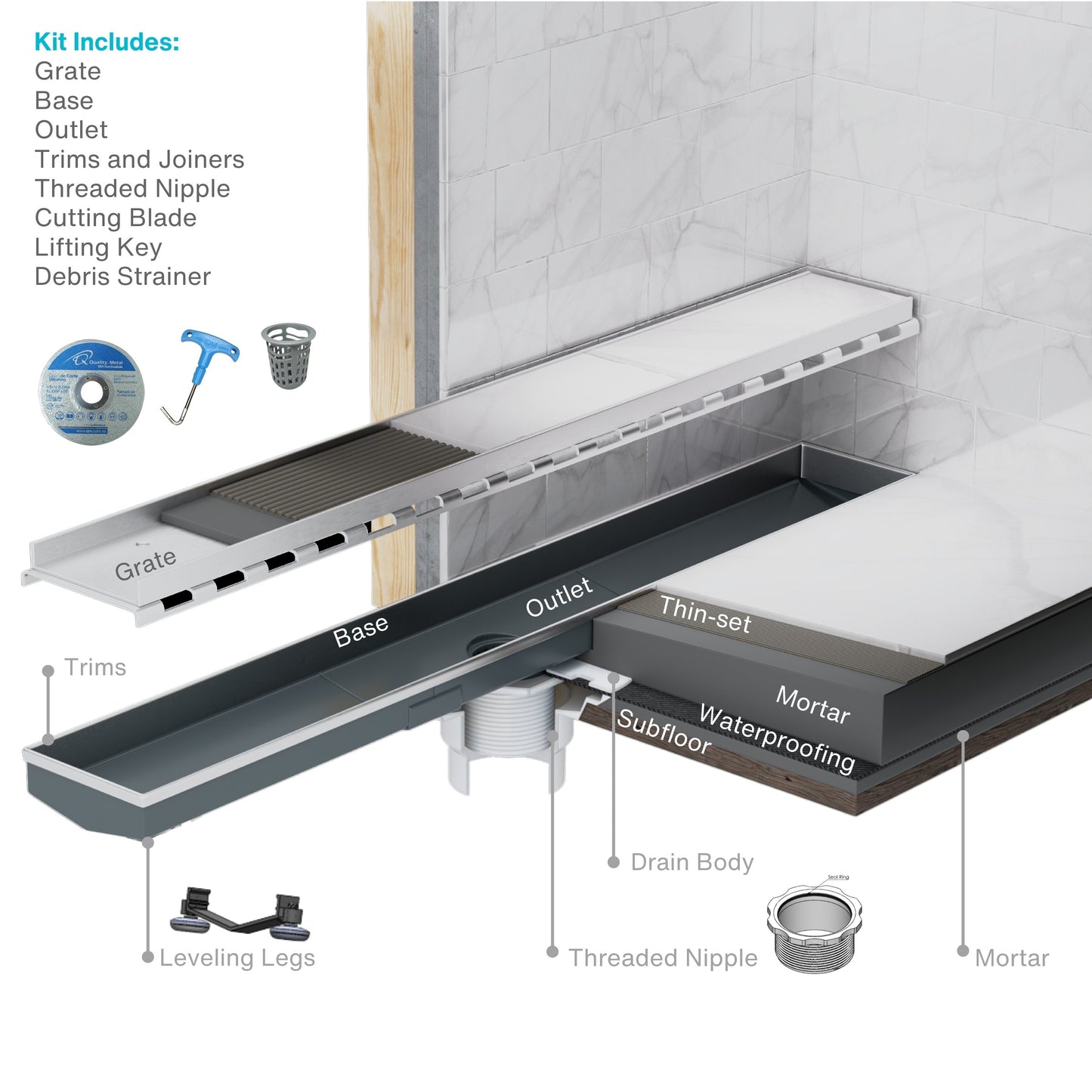

  • QM Drain Wedgewire Adjustable Kit Lagos Linear Drain 2", featuring a stainless-steel adjustable channel with precision wedge-wire grate. This drain is designed for customizable length and efficient water drainage, providing seamless integration into modern luxury shower and bathroom installations.
1 4

Couture Wedgewire Adjustable Lagos Linear Drain - 2'' Outlet

Couture Wedgewire Adjustable Lagos Linear Drain - 2'' Outlet

The Couture Adjustable Drain is a slim, sizeable linear shower drain designed for modern showers, residential or commercial builds.

Featuring a 1-1/2" width, it creates a clean, minimal aesthetic. The adjustable linear drain allows installers to customize both the drain length and outlet location directly on-site.

Key Features

  • Slim 1.5" Width – Narrow linear drain design that blends cleanly into tile showers.
  • Adjustable Length – Drain sections can be cut or connected on-site to fit any space
  • Flexible Outlet Placement – 2" outlet can be positioned center or off-center
  • Wedgewire Grate – Strong 316SS grate & trims for corrosion resistance
  • Strong PVC Base - Offers high-quality drainage without breaking the bank

7 finishes. 316SS & PVC. Adjustable Lengths.

Finishes: Satin
Sizes

88.C610.36 ST

$672.00 USD
$672.00 USD
Sale Sold out
Shipping calculated at checkout.

    FEATURES

    What’s in the kit?

    • 2'' Outlet Section
    • PVC Channel Section
    • Wedgewire Linear Grate
    • 316SS Trims
    • Sealant
    • Leveling Legs
    • SS Threaded Nipple Adaptor
    • Hair/Debris Basket Strainer
    • Grate Lifting Key
    • Cutting Blade for grinder

    Key Features

    Slim 1.5" Linear Drain Design
    The Couture Series features a narrow profile that blends into the tile floor while maintaining strong drainage performance.

    Adjustable Length System
    Drain sections can be cut or connected on-site, allowing the drain to match the exact length needed for the shower.

    Flexible Outlet Placement
    The 2" outlet can be positioned exactly where needed, whether centered or off-center, helping installers work around existing plumbing.

    Lagos Series Construction
    Made with 316 stainless steel trims and grate paired with a durable PVC base for strength and corrosion resistance.

    Designed for Modern Shower Projects
    Works well in curbless showers, wet rooms, and custom tile installations in residential and commercial bathrooms.

    Easy to Clean.

    Removable grate allows for easy access and quick maintenance. (Refer to cleaning instructions for details.)

    Simple Installation

    Compatible with standard waterproofing methods. For comprehensive installation guidance, consult our detailed installation instructions and installation video.

    Finishes Available

    • ST – Satin Stainless
    • PS – Polished Stainless
    • BK – Matte Black
    • GD – Satin Gold
    • BZ – Satin Bronze
    • CH - Champagne
    • LG - Luxe Gray

    Sizes Available: 36'', 48'',60'',72'',96''

    • Choose the kit with equal or greater size than the desired length; for longer length drains, connect kits to build the desired length.

    Drain Dimensions

    • Width: 1.5" Height: 1" (low profile)

    Need help installing?

    Check our installation guide and video for step-by-step instructions.

    SPECIFICATIONS & INSTALLATION

    Quick Specs

    Dimensions: Width: 1.5" (Slim) | Height: 1" (low profile)

    Resources (PDFS & Videos)

    Click below to view and download:

    Download the drain specs PDF with dimensions, materials, SKU numbers, and performance data.

    A complete installation guide covering tools, preparation, and waterproofing.

    Watch the full video tutorial showing the installation process from start to finish.

    ARCHITECT & DESIGNER RESOURCES

    Download Design Files:

    FAQ

    What Is an Adjustable Linear Drain?

    An adjustable linear drain is a shower drain that can be cut to size and repositioned on-site, allowing flexible installation in custom or non-standard showers.

    Why should I choose an Adjustable Linear Drain for my shower?

    They’re ideal for:

    • Non-standard shower sizes (custom fit)
    • Misaligned plumbing (no expensive rework)
    • Custom design layouts (flexible placement)

    How do I size and place an Adjustable Linear Drain?

    • Measure your shower floor for the ideal drain length.
    • Cut the drain on-site to match.
    • Ensure proper slope towards drain.

    What waterproofing systems work with Adjustable Linear Drains?

    They are compatible with standard systems, including:

    • PVC liners
    • CPE liners

    Are Adjustable Linear Drains ADA-compliant?

    They can be used in ADA showers, but compliance depends on slope, threshold, and layout. Consult with a professional to ensure your shower meets ADA requirements and codes.

    What Is the QM Drain Lagos Series?

    The QM Drain Lagos Series is a collection of modern shower drains featuring a strong pre-sloped PVC channel and 316 stainless steel grate. Its smart snap-in assembly allows installers to adjust drain length and outlet position on site, making it one of the most versatile and easy-to-install linear drain systems available.

    How do you maintain an Adjustable Linear Drain?

    Simply lift the grate and clean the channel regularly to remove hair or debris.

    Can I install an Adjustable Linear Drain myself?

    DIY may be possible for experienced installers, but professional installation is recommended to ensure waterproofing and proper slope.

    Is there a warranty on QM Drains?

    Yes. QM Drains are backed by a Limited Lifetime Warranty for the original purchaser when bought through authorized sellers or our website. Certain finishes (Polished, Luxe Gray, Champagne, Bronze, Black, and Gold) carry a 3-year warranty. See warranty page for more details: https://qmdrain.com/pages/warranty-qmdrain
