Lagos is our most cost-effective series of linear drains, which allows you to enjoy a modern and timeless design with the best quality. Lagos drains are built with the perfect combination, a grate made of 100% stainless steel marine grade 316, which guarantees the best durability and resistance to corrosion produced by cleaning and water softener chemicals and a base made ABS and/or PVC plastic, known for being tough, rigid & chemical resistant.

Lagos Standard Length

Linear Drain

Stylish minimalism. The New Veil short linear drain opens up a whole new world of design freedom. It’s a tileable grate in five attractive finishes: stainless steel satin, polished, satin gold, black matte, and bronze. It couldn’t be easier to tailor to individual taste and requirements.

  • Veil (Tile-In) Linear Drain

Features

Variable positioning:

Variable positioning: Versatile, can be installed anywhere in the shower except shower entrance and can be combined with all standard tile formats.

One size:

12”.

Material:

Stainless steel marine grade 316 on all the edges in a PVC plastic body.

Base:

Pre-sloped low profile channel, ideal for new and renovation projects and generally for all bathrooms where space is tight.

Outlet:

2” center located outlet.

Easy cleaning:

Completely removable grate and a hair strainer that fits inside the drain to collect hair and other debris, preventing clogged pipes.

Easy installation:

Threaded Adaptor with rubber O-ring aids adjusting the height of drain and securing the linear drain to the flange during installation.

Application:

Indoor and Outdoor showers.

Lagos Adjustable

Linear Drain

“Extremely Flexible”. QM Adjustable allows you to modify length of the grate and channel on-site to exact specifications, and place outlet anywhere along channel run. It comes with every part needed to create your design without modifying your existing plumbing.
It was designed to give modernity and beauty without restrictions.

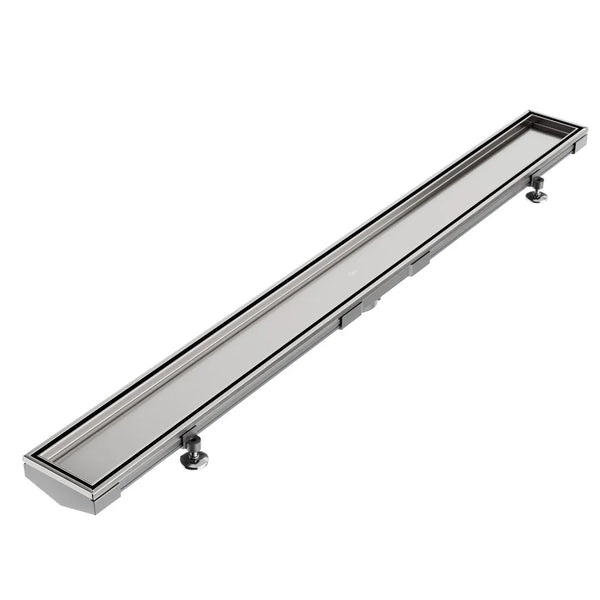

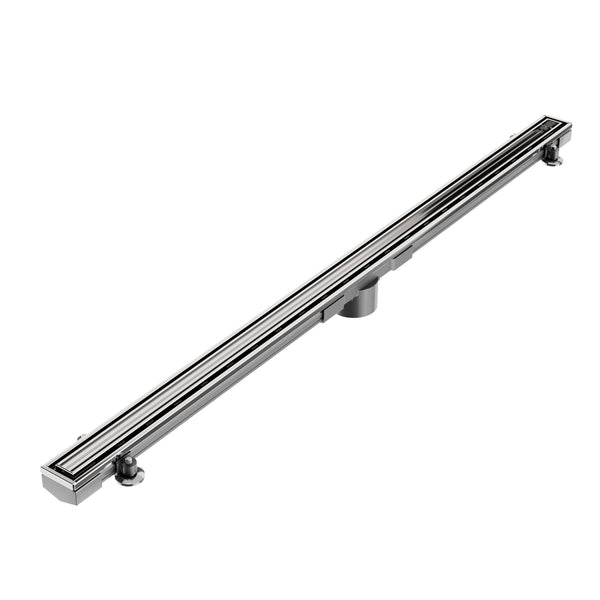

  • Mist (Tile-In) Adjustable Lagos Linear Drain

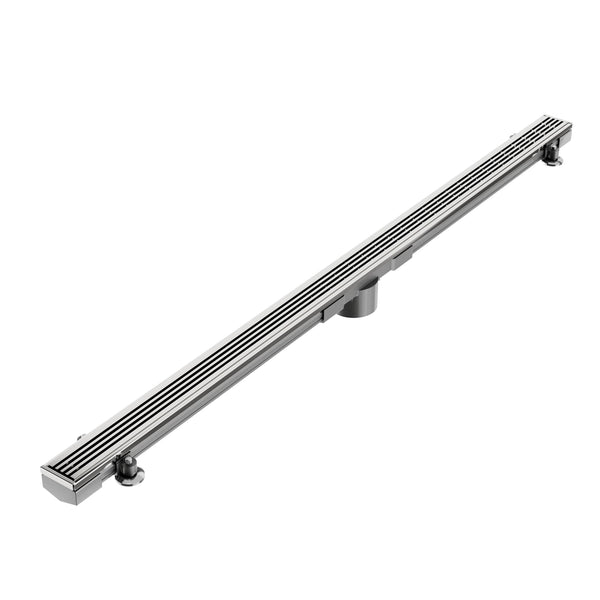

  • Wedgewire Adjustable Lagos Linear Drain

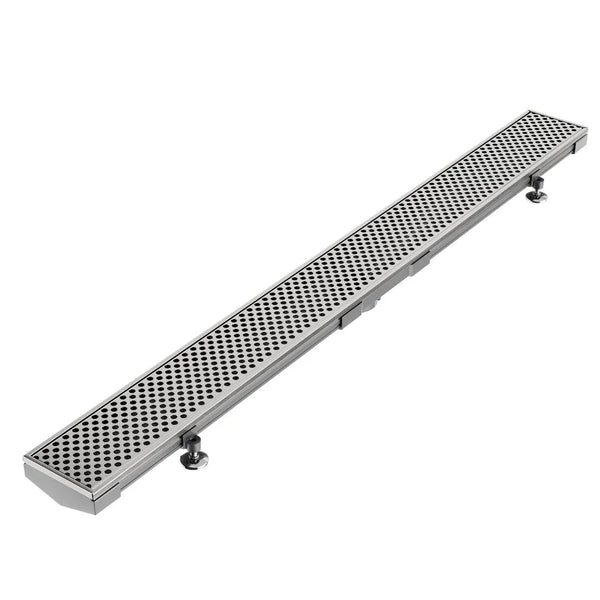

  • Perforated Adjustable Lagos Linear Drain

Features

Flexibility:

Total, adjust length and position outlet on site or contact us for a custom order.

Variable positioning:

Versatile, can be installed anywhere and can be combined with all standard tile formats.

Variety of kit lengths:

36”, 48”, 60” 72” & 96”. Select the drain equal or longer than the final desired length. For Lengths longer than 96”, connect multiple drains to build desired length. Corner accessory available when connecting two drains in 90-degree angle.

Outlet options:

2” or 3” High Flow.

Material:

Grate and edge trims are made with stainless steel 316. Channel is made with PVC.

Base:

Pre-sloped low profile channel, ideal for new and renovation projects and generally for all bathrooms where space is tight.

Easy cleaning:

Completely removable grate and a hair strainer that fits inside the drain to collect hair and other debris, preventing clogged pipes.

Moderate installation:

Drain needs to be assembled on site, requires time but simple steps. Threaded adaptor with rubber O-ring aids adjusting the height of linear drain and securing the linear drain to the flange, also equipped with adjustable feet on both sides, which help keep the drain channel in the correct position and level during installation.

Application:

Indoor and outdoor showers and all other outdoor applications like pool, deck, patio, terraces, etc.
